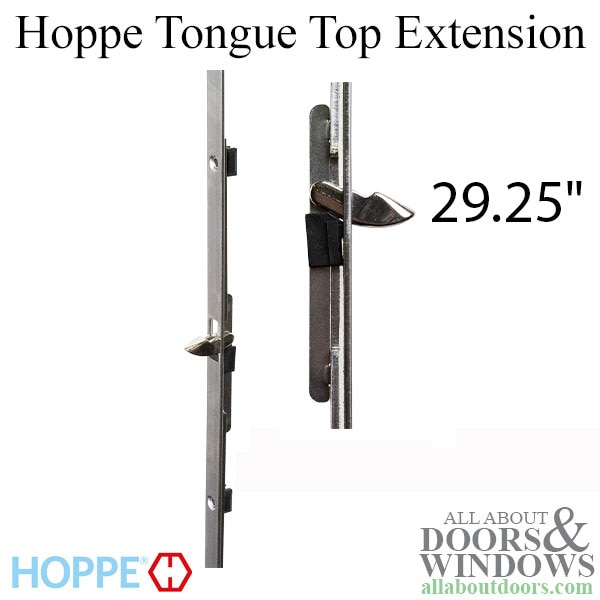

Hoppe 16mm Manual Top Extension, Tongue at 29.25", 48.03" Length

Hoppe 16mm Manual Top Extension, Tongue at 29.25", 48.03" Length

Hoppe 16mm Manual Top Extension only, does not include the bottom assembly with Gearbox- 1 of 2 Pieces.

Fits Doors: 71.06" - 85.63”
Application: Top section only, manual tongue
Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 29.25 inches (743mm)
Extension Length: 48.03 inches (1220mm)
Maximum Cutoff: 14.57 inches ( 370mm)
Material: Stainless Steel

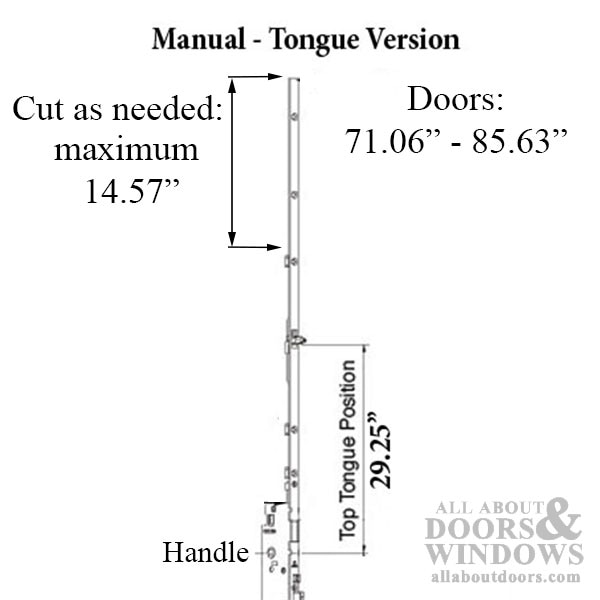

Note: When both Upper and Lower assemblies are connected fits doors from 71.06 to 85.63 inches tall with 36 inch handle height.

The top may be cut a maximum of 14.57 inches (370mm), to adjust for different door heights.

Top Extension only, does not include the bottom assembly with Gearbox

Related Hoppe 16mm Tongue Extensions:

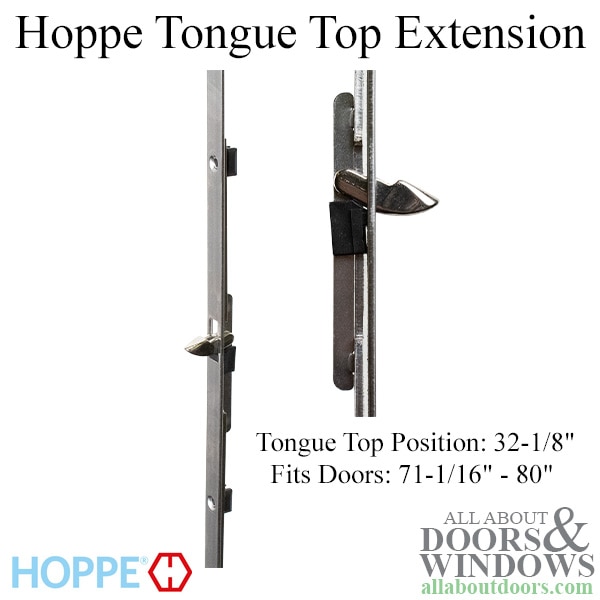

2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"

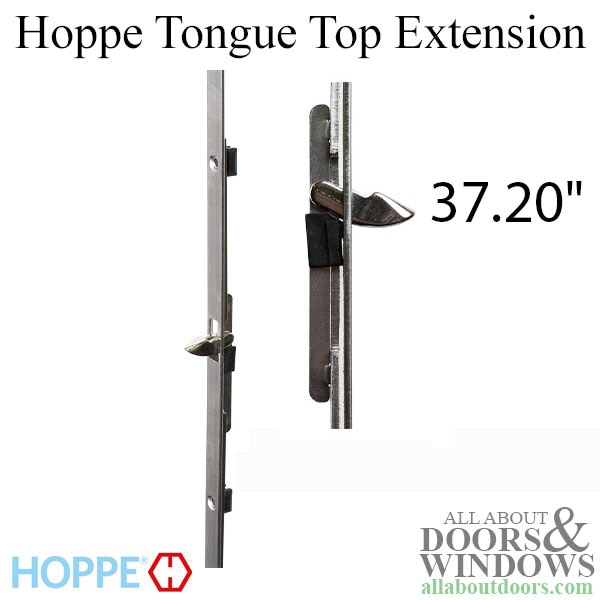

8778555 - Hoppe Top Extension with Tongue 54.92"

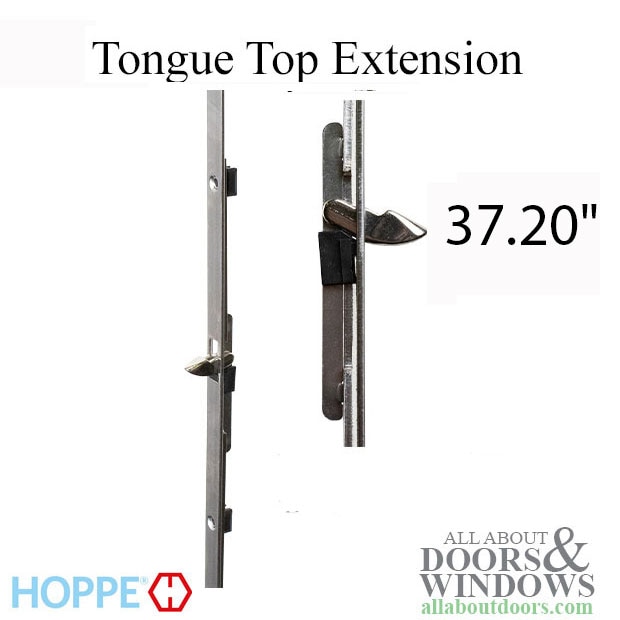

8778559 - Hoppe Top Extension with Tongue 61.81"

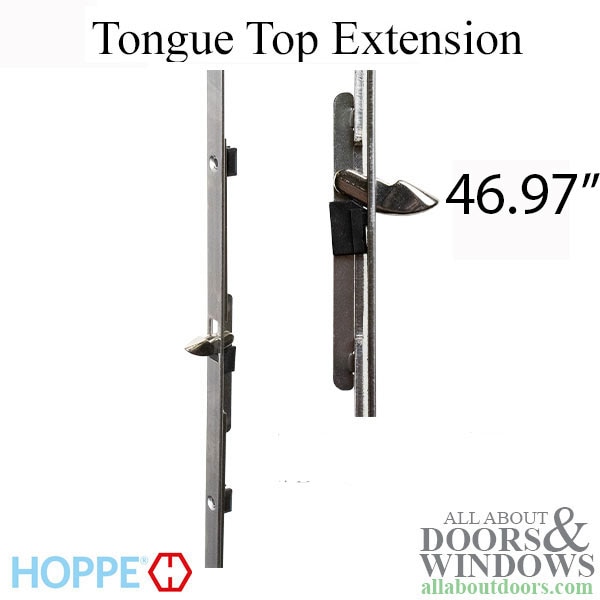

8778563 - Hoppe Top Extension with Tongue 68.70"
