Hoppe HLS9000 Multipoint Lock Manual Tongue Gear 45mm Backset 92mm PZ 1 Inch Deadbolt Throw 36 Inch Handle Height
SKU: 8778075
$159.00 / Each
Details
Hoppe 16mm HLS9000 Tongue Version

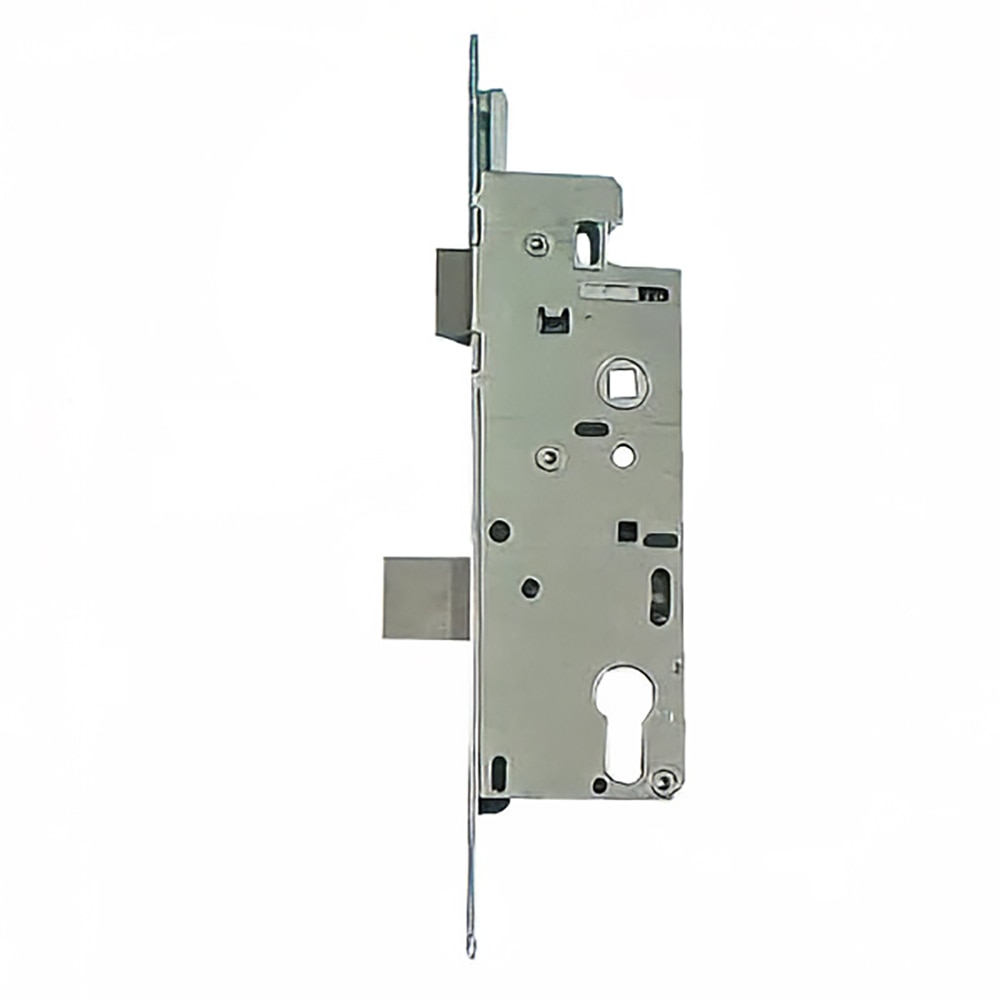

Lock Box with Lower Assembly Featuring a Tongue Locking Point
Combine this lower gear assembly with a top extension tailored to your door height and desired locking function to construct a complete multi-point lock. Browse our Hoppe multipoint locks category or the Related Items section at the bottom of this page to find an upper extension that may suit your needs.
Specifications:
- Brand: Hoppe
- Series: HLS9000
- Faceplate Finish: Stainless Steel
- Version: Lower Tongue (Horizontal locking device between handle and bottom of door)
- Function: Manual locking (Lift handle to lock tongue)
Includes:
- Bottom assembly only, as shown. Does not include additional extensions or other components.
Dimensions:
| Dimension | Imperial (Fraction) | Imperial (Decimal) | Metric (Decimal) |
|---|---|---|---|

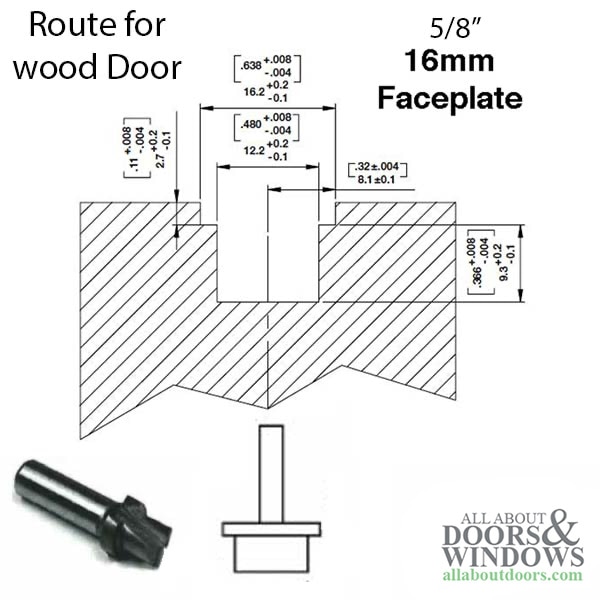

| Faceplate Width: | 5/8" | 0.63" | 16mm |

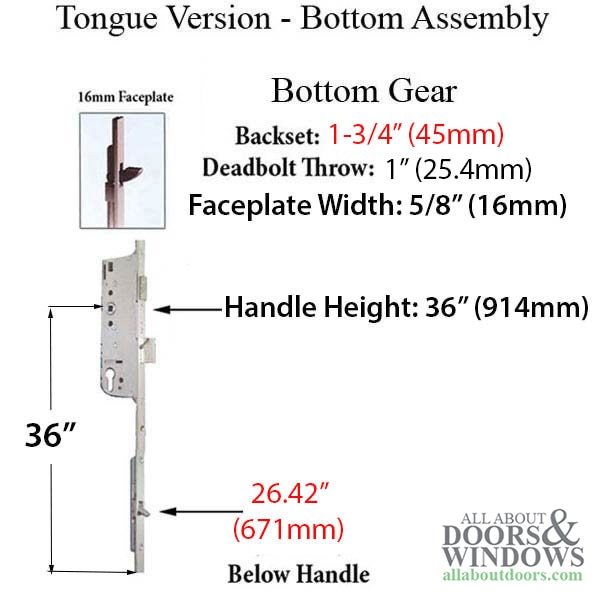

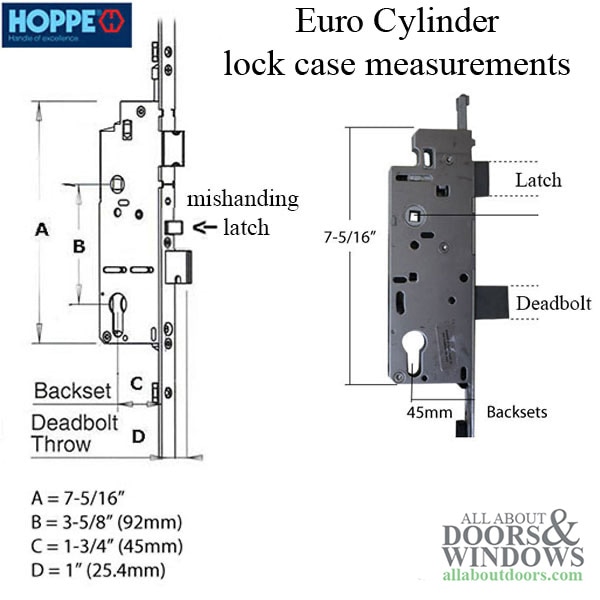

| Backset | 1.75" | 1-3/4" | 45mm |
| PZ | 3.62" | 3-5/8" | 92mm |
| Deadbolt Throw | 1" | 1" | 25.4mm |
| Handle Height | 36" | 36" | 914mm |

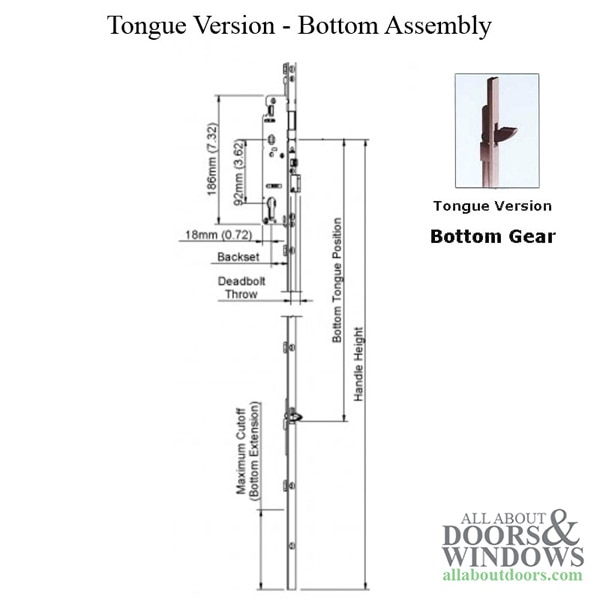

| Bottom Tongue Position | 26-7/16" | 26.42" | 671mm |
| Maximum Cutoff | 4-1/2" | 4.53" | 115mm |
Additional Information
90033 Manual Tongue Version
