Hoppe 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height

Hoppe 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height

Hoppe 16mm Manual 35/92 Gear with Tongue, 1" Deadbolt & 36" Handle Height | All About Doors and Windows(Tongue Version/Manual Gear) 5 screw installation

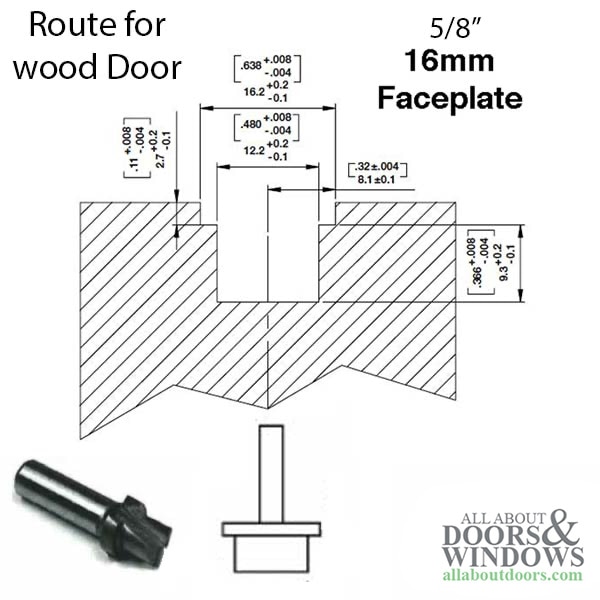

Faceplate: 5/8 inch (15.875mm)

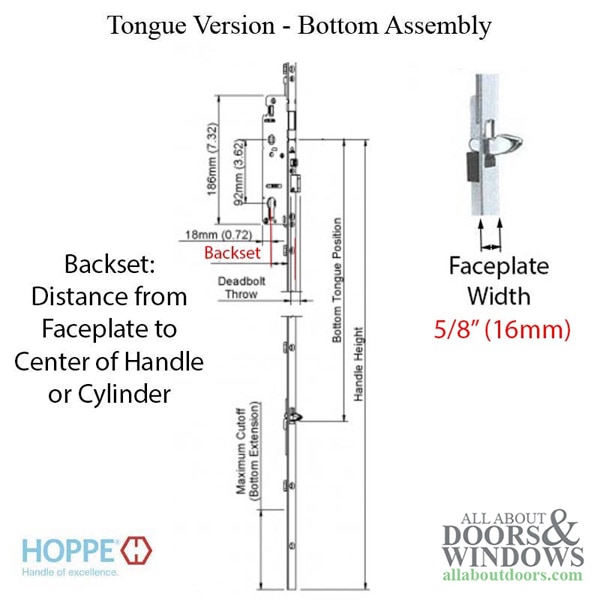

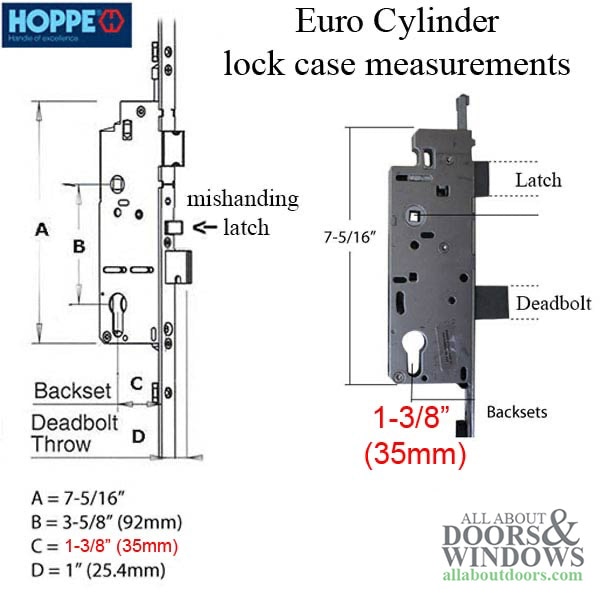

Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1 inch (25.4mm)

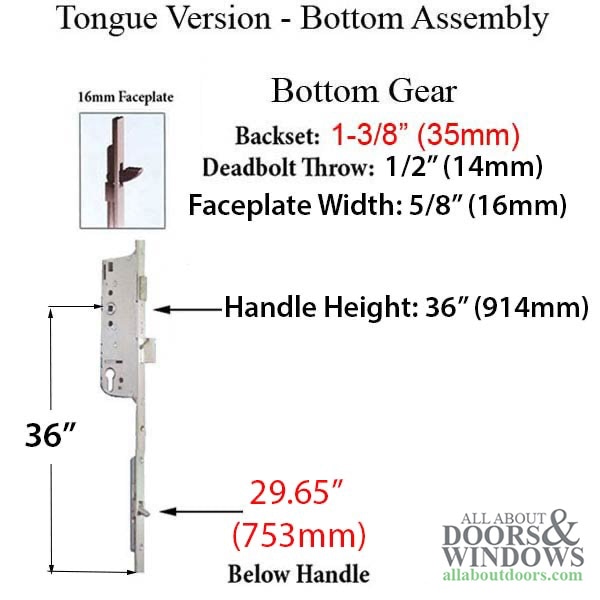

Handle Height: 36.00 inch (914mm)

Maximum Cutoff 1.18 inches.

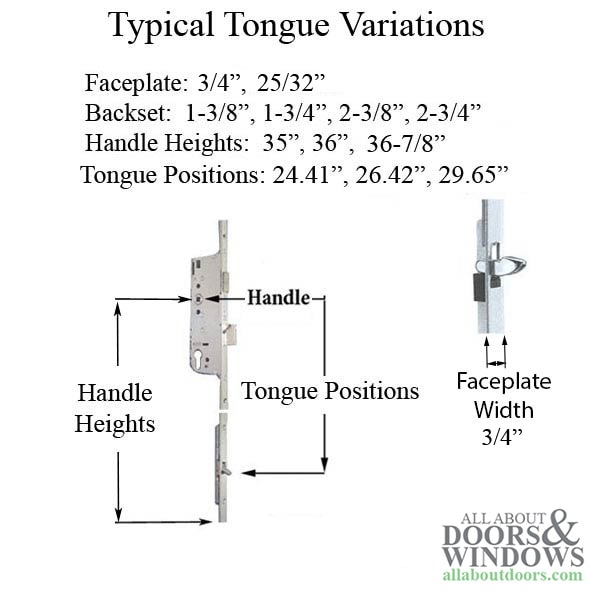

29.65 Tongue Position from center of handle

To Change Handling/Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.

Related Parts for Kolbe and Kolbe Doors:
8778143 - Bottom Gear, 16mm 35/92, Tongue @ 29.65"
8778563 - Top Extension for 93" door, tongue at 46.97"
