Hoppe 16mm Manual Top Extension, Tongue at 62.76", 75.59" Length

Part Number: 8778567
Price: $123.51

Hoppe 16mm Manual Top Extension, Tongue at 62.76", 75.59" Length

Hoppe Top Extension for Manual Tongue Version Lock with 16mm Faceplate. (Manual top extension, tongue version for active door.)

Faceplate Width: 5/8 inch (16mm)
Material: Stainless Steel

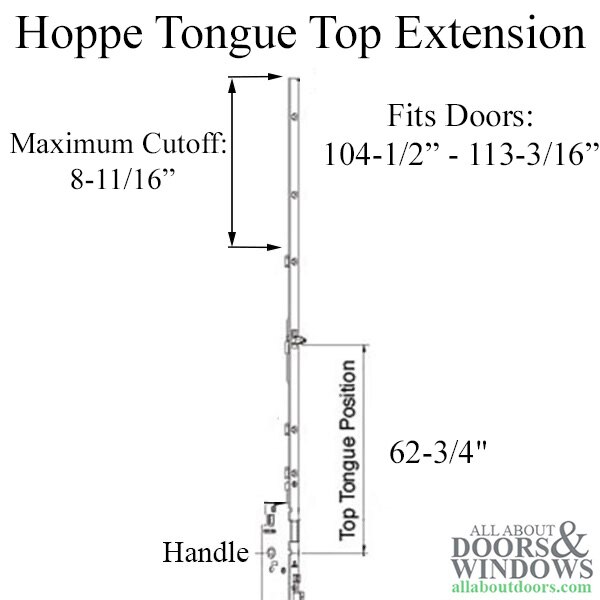

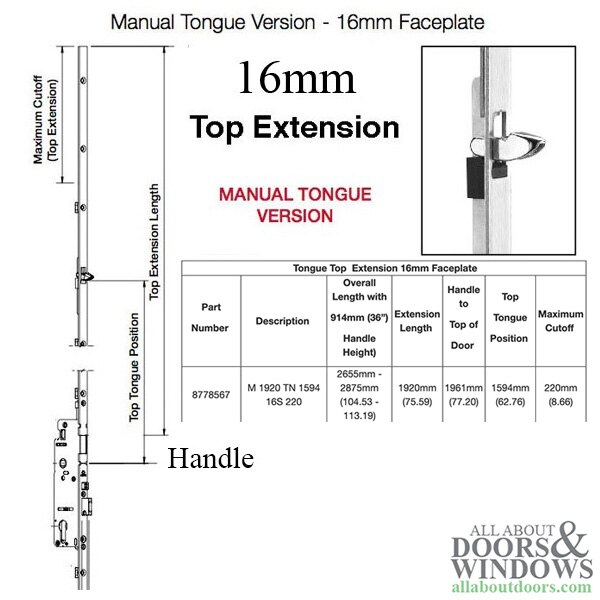

Overall Length: 104.53 to 113.19 inch (2655mm-2875mm) for door with 36 inch handle height.
Extension Length: 75.59 inches (1920mm),
Handle to top of door 77.20 inches (1961mm)
Top Tongue Position: 62.76 inches (1594mm)
Maximum cut off 8.66 inches (220mm)
Number of Screws: 11 - 1-3/8 inch (35mm) length

Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - ​​​​​​Hoppe Top Extension with Tongue 75.59"
