Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius end

Part Number: 2333474
Price: $41.20

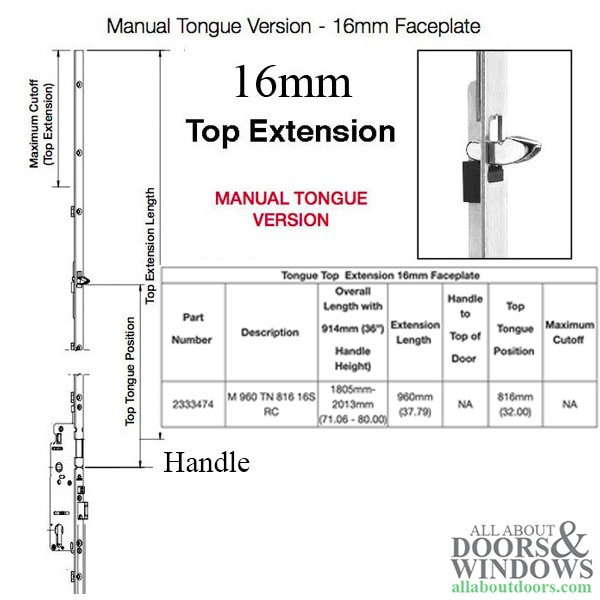

Hoppe 16mm Manual Top Extension, Tongue at 32.12", Radius End (to replace Barber & Ross door hardware.)

Manual version engages multipoint when door handle is lifted.
While offering security in the locked position, the HLS9000 tongue retracts when opened, giving a smooth clean appearance.

Overall length with 914mm (36") Handle Height: 71.06" - 80" (1805mm-2013mm)

Faceplate width: 16mm

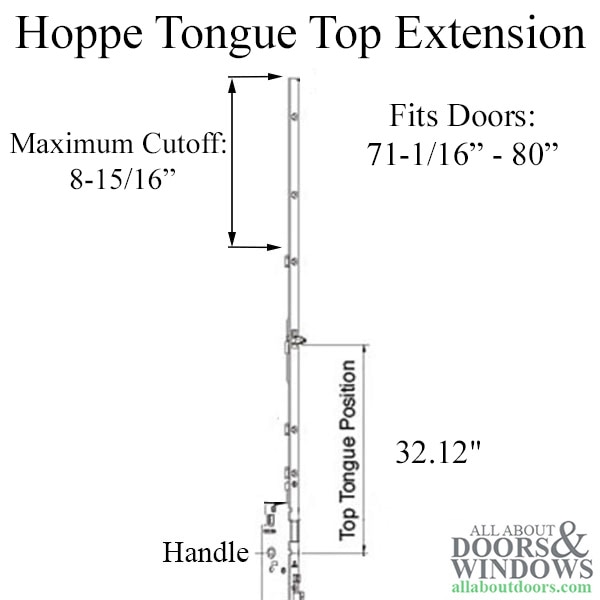

Top Tongue: 32.12" (816mm)
Extension Overall Length: 37.80" (960mm)
Faceplate End: radius

Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - ​​​​​​Hoppe Top Extension with Tongue 75.59"
