Hoppe 16mm Manual Top Extension, Tongue at 46.97", 68.70" Length

Part Number: 8778563
Price: $119.25

Hoppe 16mm Manual Top Extension, Tongue at 46.97", 68.70" Length

This is the Top Extension only, does not include the bottom assembly with gearbox - 1 of 2 Pieces.

Top Section: Manual Tongue
Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 46.97 inches (1193mm)
Extension Length: 68.70 inches (1745mm)
Maximum Cutoff: 17.52 inches (445mm)
Number of Screws: 10
Material: Stainless Steel

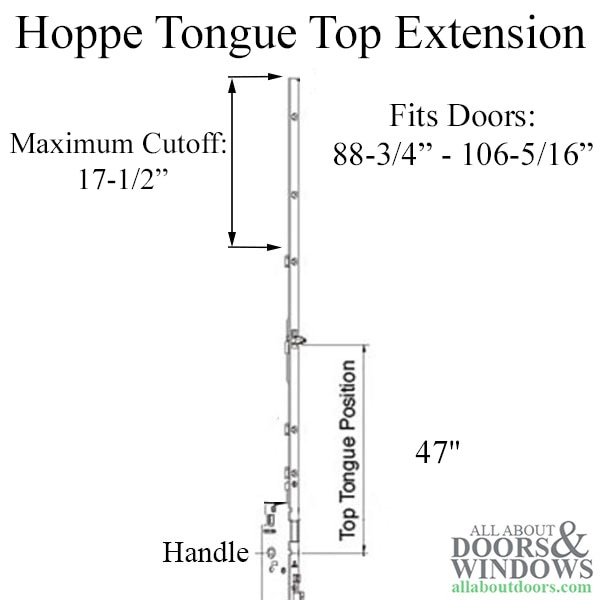

Note: When both Upper and Lower assemblies are connected fits doors from 88.78 to 106.30 inches tall with 36 inch handle height.

The top may be cut a maximum of 17.52 inches, to adjust for different door heights. Overall Handle to Top of Door 68.70 inches with 36 inch handle height.

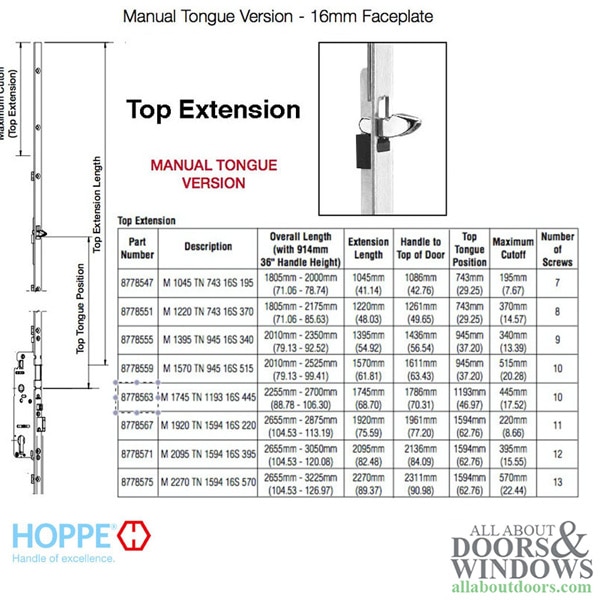

Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - ​​​​​​Hoppe Top Extension with Tongue 75.59"
