Hoppe 16mm Manual Top Extension, Tongue at 37.20", 61.81" Length

Hoppe 16mm Manual Top Extension, Tongue at 37.20", 61.81" Length

Hoppe 16mm Manual Top Extension only, Does Not Include the Bottom Assembly with Gearbox- 1 of 2 Pieces.

Top Section: Manual Tongue
Faceplate Width: 5/8 inch (16mm)
Top Tongue Position: 37.20 inches (945mm)
Extension Length: 61.81 inches (1570mm)
Maximum Cutoff: 20.28 inches (515mm)
Number of Screws: 10
Material: Stainless Steel

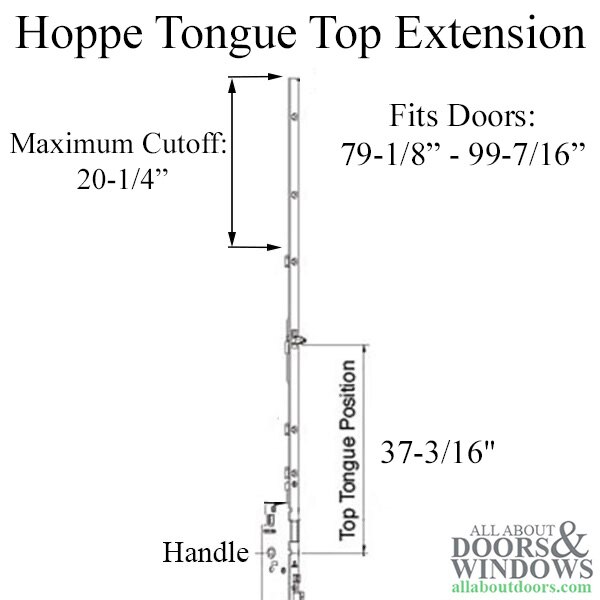

Note: When both Upper and Lower assemblies are connected this fits doors from 79.13 to 99.41 inches tall with 36 inch handle height. The top may be cut a maximum of 20.28 inches, to adjust for different door heights. Overall Handle to Top of Door 63.43 inches with 36 inch handle Height.

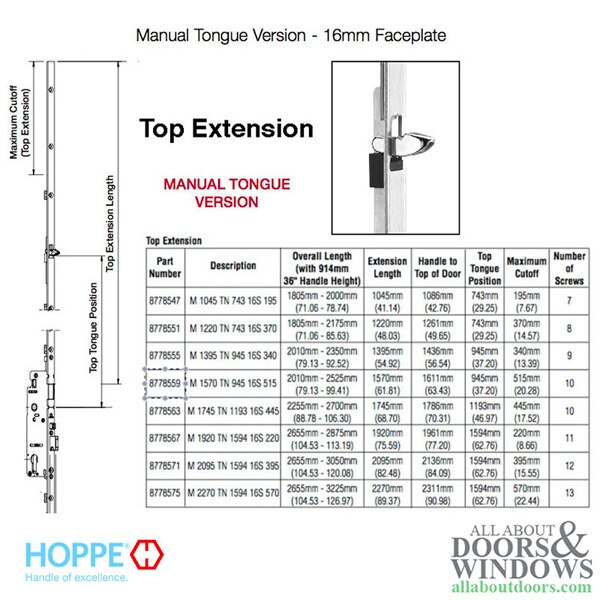

Related Hoppe 16mm Tongue Extensions:
2333474 - Hoppe Top Extension with Tongue 37.79"
8778551 - Hoppe Top Extension with Tongue 48.03"
8778555 - Hoppe Top Extension with Tongue 54.92"
8778559 - Hoppe Top Extension with Tongue 61.81"
8778563 - Hoppe Top Extension with Tongue 68.70"
8778567 - ​​​​​​Hoppe Top Extension with Tongue 75.59"
