16mm Manual Tongue-Shootbolt 45/92 Gear, Tongue @ 26.42"
Hoppe HLS9000 Tongue and Shootbolt, Multi-Point lock Lower Assembly

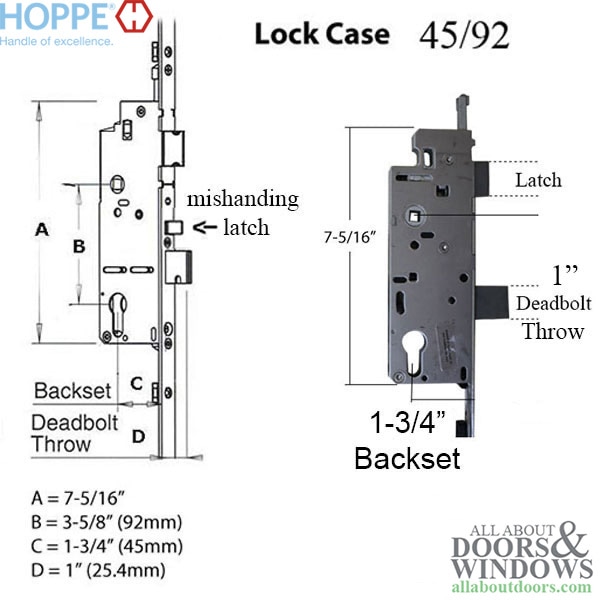

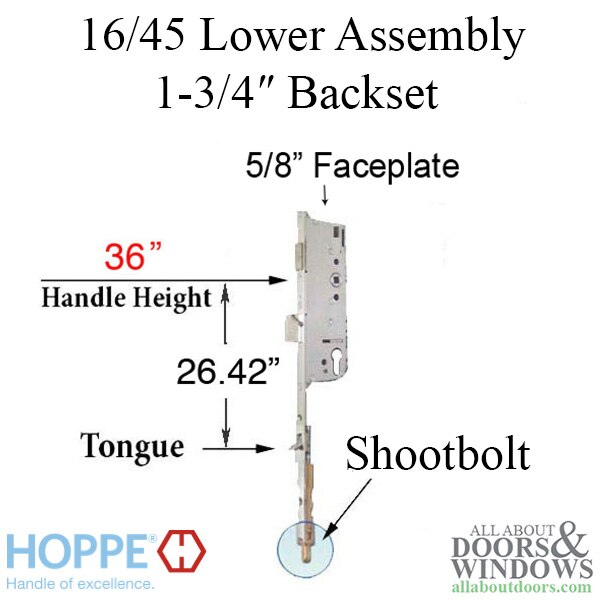

Bottom Section: HL S9000 MP Manual Gear, 90057 Tongue Version for Active Door.
Faceplate Width: 5/8 inch (16mm)
Backset 1-3/4 inch (45mm)
Deadbolt throw: 1 inch (25.4mm)
Handle Height 36 inches (914mm)

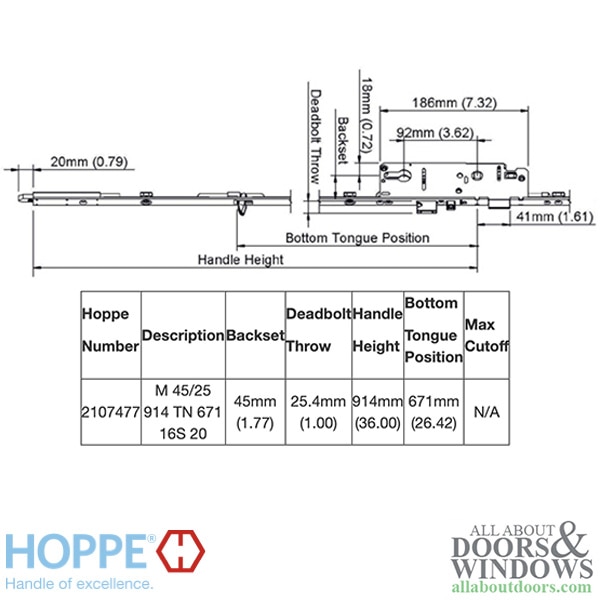

Bottom Tongue Position: 26.42 inches (671mm)
Maximum Cutoff: NONE has Shootbolt attached
Number of screws 6
