16mm Manual 60/92 Gear, Shootbolt-Tongue @ 24.41", 1" Deadbolt Throw

Hoppe HLS9000 Tongue / Shootboltversion Multi-Point lock - 1 of 3 Pieces.

Bottom Section: HL S9000 MP Manual Gear, 90057 Tongue Version for Active Door.

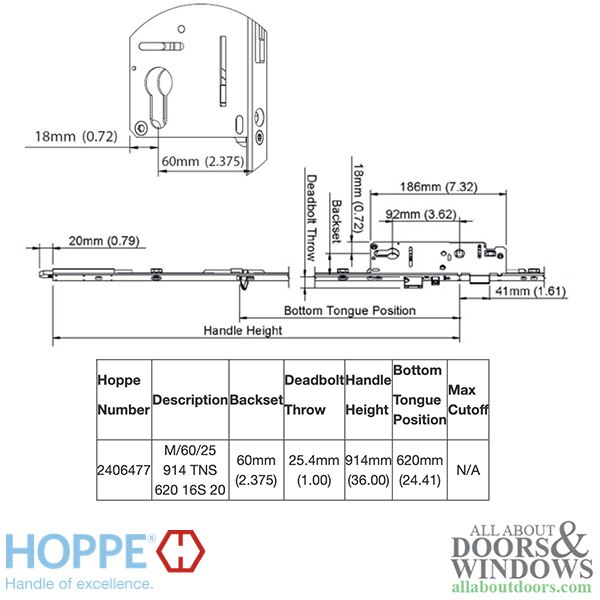

Specifications:

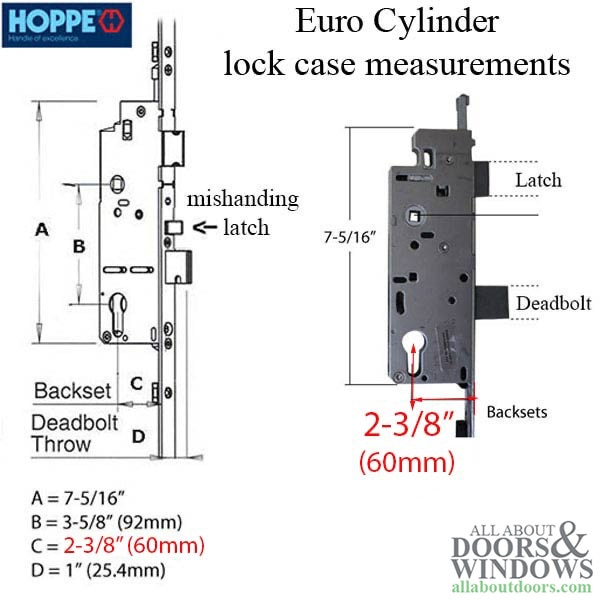

• Faceplate: 5/8 inch (16mm)
• Backset: 2-3/8 inch (60mm)
• DeadboltThrow: 1 inch (25.4mm)
• Handle Height: 36 inches (914mm)
• Bottom Tongue Position: 24.41 inches (620mm)
• Maximum Cutoff N/A
• Number of screws 6
