16mm Manual Tongue-Shootbolt 45/92 Gear, Tongue @ 24.40", 39.62" Handle Height

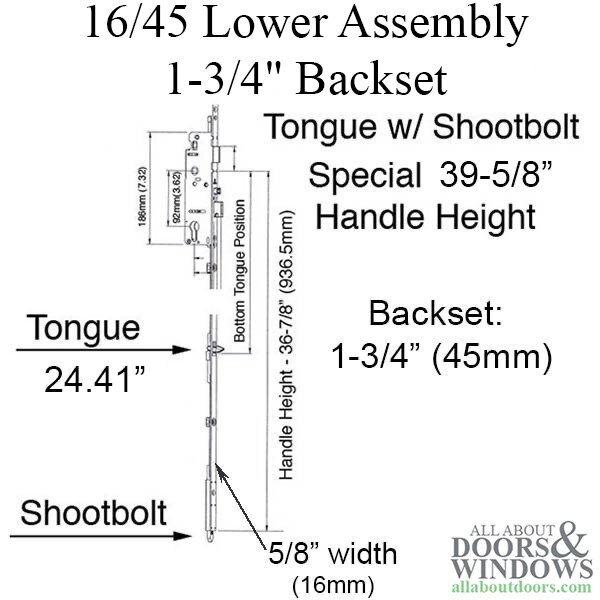

Special Size: Manual Version Tongue with Shootbolt - 39.62 inch handle height
This is the bottom half of a Multipoint lock, Gear and bottom extension
Face PlateWidth: 5/8 inch (16mm),
Special Handle Height: 39.6” (1006mm),
Backset: 1-3/4 (45mm),
Deadbolt Throw: 1" (25.4mm)
Tongue Position: 24.41" (620mm)
Article: HLS Swing Door Multipoint Hardware Installation And Adjustment
Related 16mm Hoppe Tongue/ Shootbolt Bottom Gear Assemblies:
8777951 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 35-3/4"
8778107 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
8778263 - 16/35 Lower Assembly/ Hoppe Multipoint 1-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406477 - 16/60 Lower Assembly/ Hoppe Multipoint 2-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2107477- 16/45 Lower Assembly/ Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406485 - 16/70 Lower Assembly/Hoppe Multipoint 2-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2516297 -16/45 Lower Assembly Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-1/2"
2760062 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-7/8"
2339382 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2680919 - 16/35 Lower Assembly/ Hoppe Multipoint 1.3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2607957 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 54"
