16 mm Manual Tongue-Shootbolt 45/92 Gear, Tongue @ 42.4", 54" Handle Height Special Size: Manual
16 mm Manual Tongue-Shootbolt 45/92 Gear, Tongue @ 42.4", 54" Handle Height

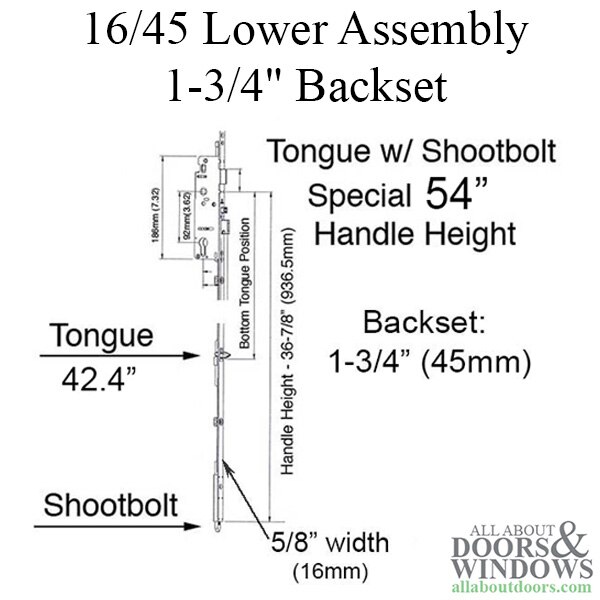

Special Size: Manual Version Tongue with shootbolt - 54" handle height
Used by Weather Shield on their Arizona Door

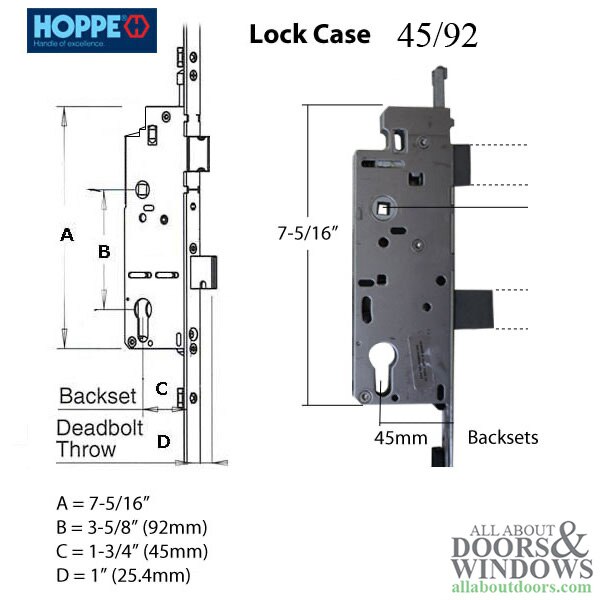

Face Plate Width: 5/8" (16mm) ,
Special Handle Height: 54" (1371.6mm) ,
Lock Backset: 1-3/4" (45mm),
Deadbolt Throw: 1" (25.4mm),
Bottom Tongue Position: 42.4" (1077mm)
NOTE: This is a non-stock item and may take several weeks
Article: HLS Swing Door Multipoint Hardware Installation And Adjustment
Related 16mm Hoppe Tongue/ Shootbolt Bottom Gear Assemblies:
8777951 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 35-3/4"
8778107 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
8778263 - 16/35 Lower Assembly/ Hoppe Multipoint 1-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406477 - 16/60 Lower Assembly/ Hoppe Multipoint 2-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2107477- 16/45 Lower Assembly/ Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2406485 - 16/70 Lower Assembly/Hoppe Multipoint 2-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"
2516297 -16/45 Lower Assembly Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-1/2"
2760062 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-7/8"
2339382 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2680919 - 16/35 Lower Assembly/ Hoppe Multipoint 1.3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"
2607957 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 54"
Special Size: Manual Version Tongue with shootbolt - 54" handle height
Used by Weather Shield on their Arizona Door
Face Plate Width: 5/8" (16mm) ,
Special Handle Height: 54" (1371.6mm) ,
Lock Backset: 1-3/4" (45mm),
Deadbolt Throw: 1" (25.4mm),
Bottom Tongue Position: 42.4" (1077mm)
NOTE: This is a non-stock item and may take several weeks
Article: HLS Swing Door Multipoint Hardware Installation And Adjustment
Related 16mm Hoppe Tongue/ Shootbolt Bottom Gear Assemblies:
