Hoppe 16mm Manual 35/92 Gear, Shootbolt-Tongue at 24.41", 1" D/B

Part Number: 8778263
Price: $205.82

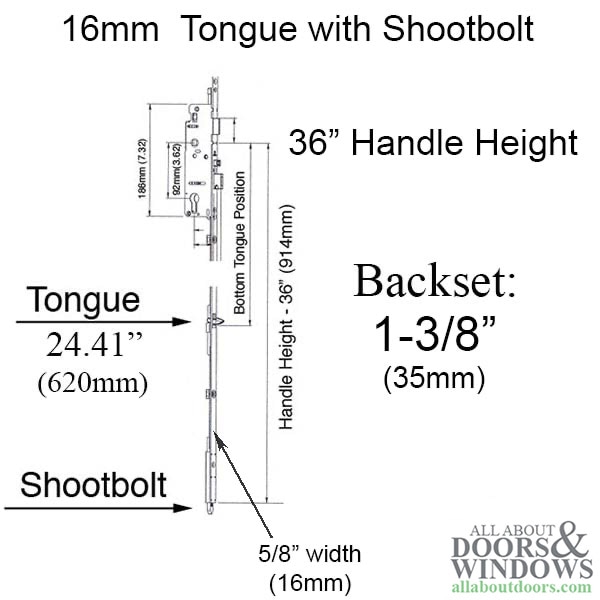

Hoppe 16mm Manual 35/92 Gear, Shootbolt-Tongue at 24.41", 1" D/B (Tongue / Shootbolt version Multi-Point lock - 1 of 3 Pieces.)

Bottom Section: HL S9000 MP Manual Gear, 90057 Tongue Version for Active Door.

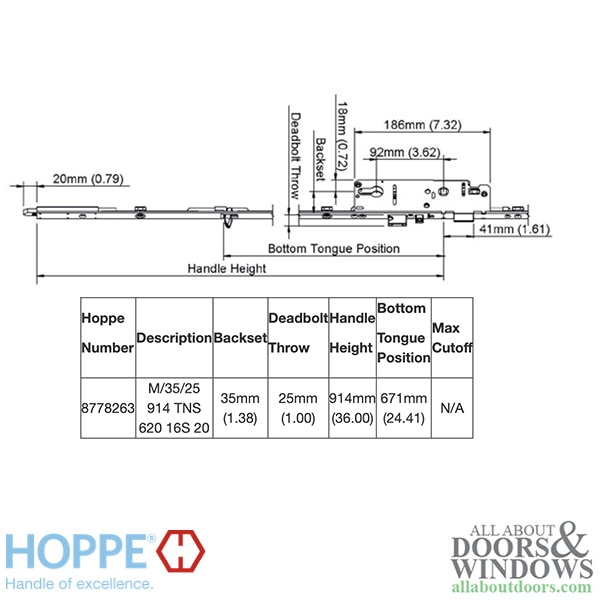

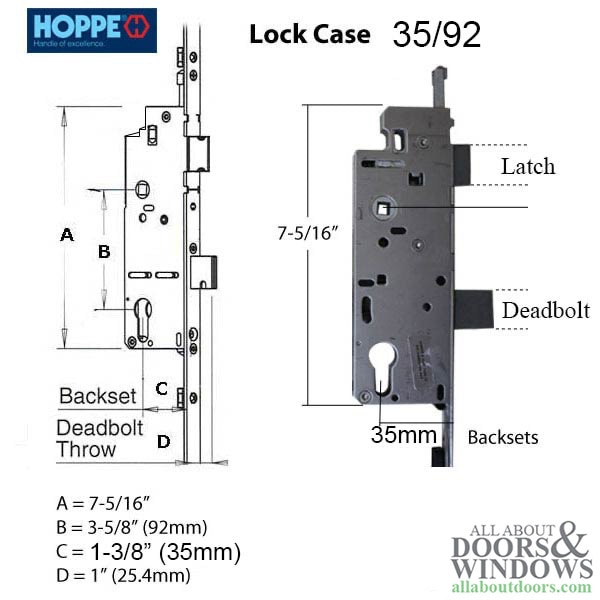

Faceplate: 5/8" (16mm)
Backset: 1-3/8" (35mm)
Deadbolt Throw: 1"(25.4mm)
Handle Height: 36" (914mm)
Bottom Tongue Position: 24.41" (620mm)
Maximum Cutoff: N/A
Number of screws: 6

Article: HLS Swing Door Multipoint Hardware Installation And Adjustment

Related 16mm Hoppe Tongue/ Shootbolt Bottom Gear Assemblies:
8777951 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 35-3/4"

8778107 - 16/45 Lower Assembly Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"

8778263 - 16/35 Lower Assembly/ Hoppe Multipoint 1-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"

2406477 - 16/60 Lower Assembly/ Hoppe Multipoint 2-3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"

2107477- 16/45 Lower Assembly/ Hoppe Multipoint 1-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"

2406485 - 16/70 Lower Assembly/Hoppe Multipoint 2-3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36"

2516297 -16/45 Lower Assembly Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-1/2"

2760062 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 36-7/8"

2339382 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"

2680919 - 16/35 Lower Assembly/ Hoppe Multipoint 1.3/8" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 39-5/8"

2607957 - 16/45 Lower Assembly/ Hoppe Multipoint 1.3/4" Backset Manual Gear with Tongue/ Shootbolt Bottom Extension/ Handle Height: 54"
