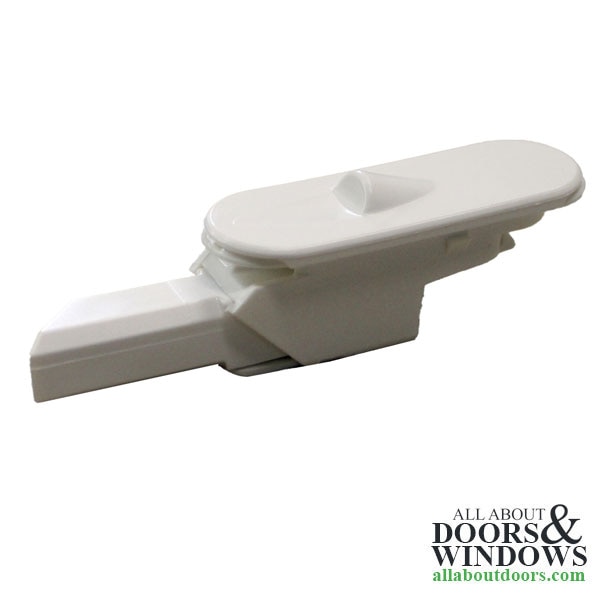

Slide-In Window Tilt Latch, Plastic
Slide-In Tilt-latch for single and double hung vinyl windows.

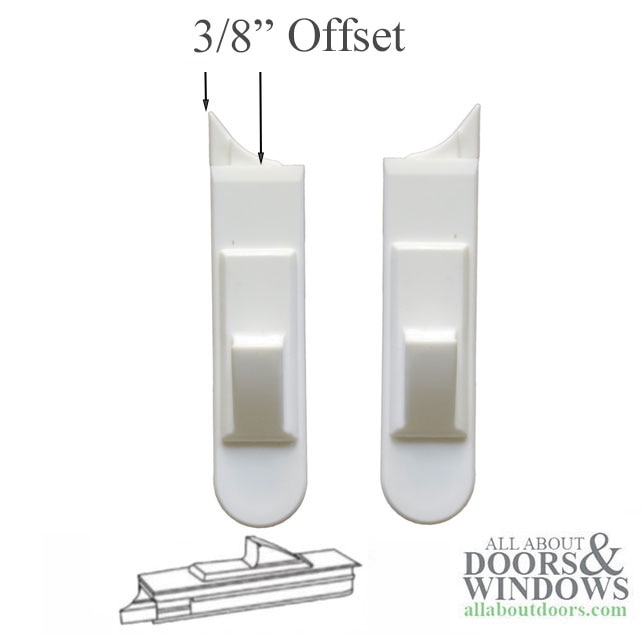

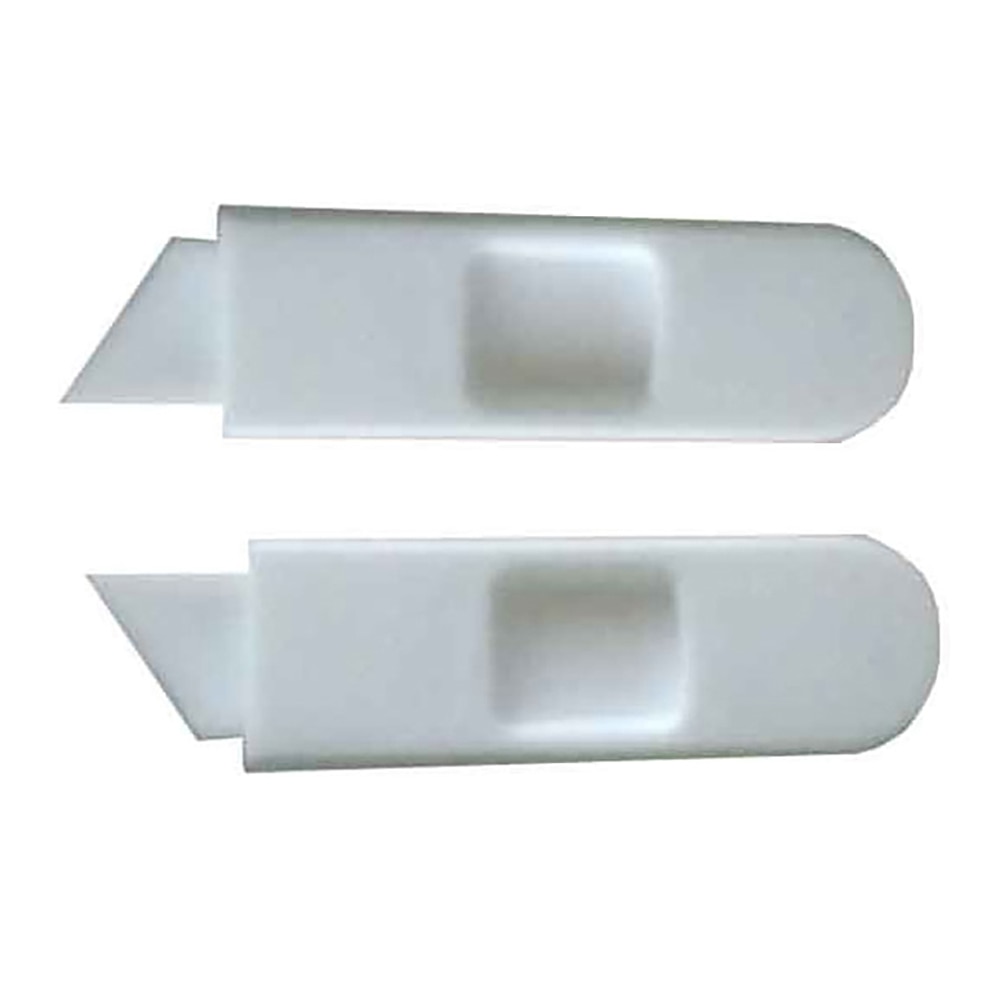

This latch has several shapes and sizes. The nose can be slanted or scallop.
The thumb actuator is normally recessed, but some may be raised.
Some are interchangeable, but compare dimensions to be sure.
The latch normally has small barbs on the side or bottom that allows it to snap into the route in the top of sash.
Note: The Slide-on finger latch assembly slides into a route (cut out) in the top of the window sash. Sometimes you can just push and it will slide out, if not, take a small block of wood and gently tap on the end till it slides out.
Scallop 9/32" Nose Offset, .195 snap in
Scallop 9/32" Nose Offset, 3/32 Stile Snap
