Tilt Latch Pair Fits Single or Double Hung Vinyl Window Short Nose Left Right

Part Number: 503020
Price: $3.95

Single or Double hung window tilt in latch for vinyl, fiberglass or composite windows.
Used by Weather Shield on the Visions 3000 vinyl window and other companies

Application: Vinyl Single and Double Hung Sliding windows

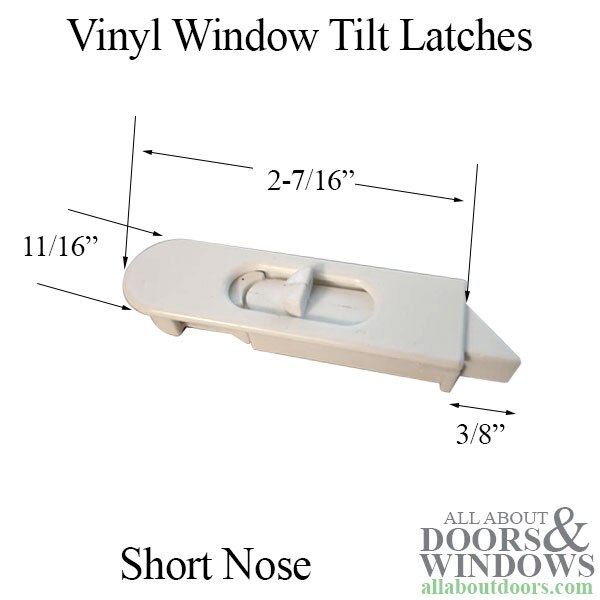

Top Width: 11/16 inch
Top Length:  2-7/16 inch
Hoousing Thickness: 3/8 inch
Nose Offset: 3/16 inch

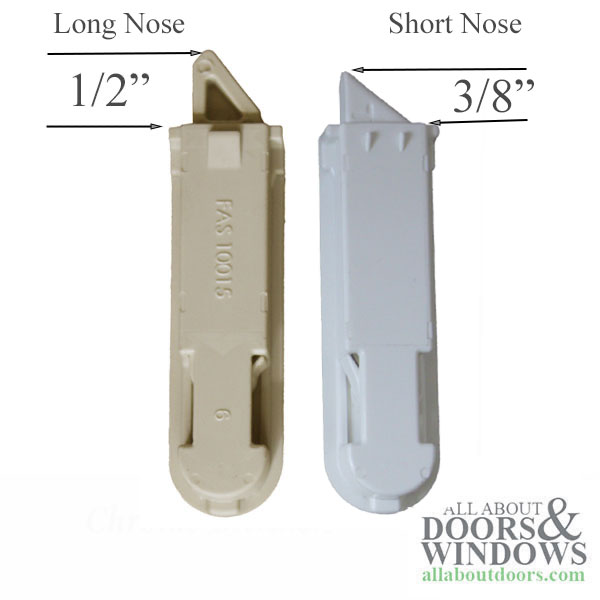

Nose Projection: 3/8 inch
Nose Shape: 45 degree
Thumb Button: Standard, low profile
Material: Vinyl / Plastic

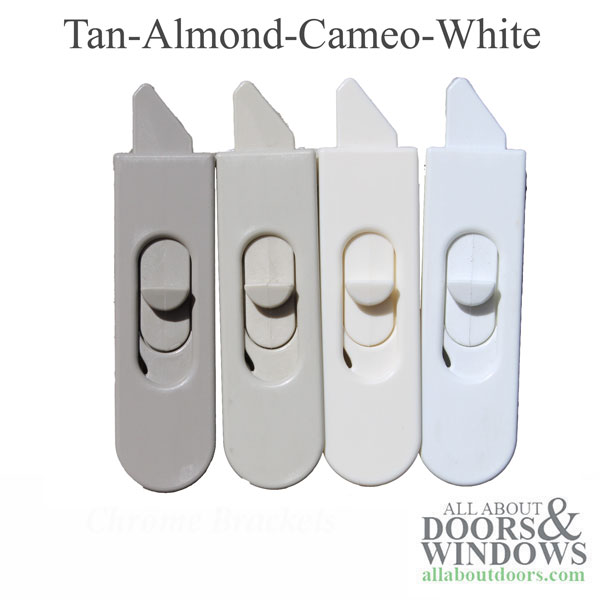

Available Colors:

Sold in Pairs, 1 Left, 1 Right

Product Highlights
Recommended for: composite and vinyl windows
Designed to deliver a smooth quality feel, with easier and quieter operation
Stainless steel spring for corrosion resistance
Fits snugly in check rail with friction fit
Slide-in installation with smooth operation and feel
Proven marketplace design for vinyl, now applied to wood, with no route change needed
