Tilt Latch, Single or Double Hung Vinyl Window, Large Nose, Pair

Part Number: 503021
Price: $3.95

Single or Double hung window tilt in latch for vinyl, fiberglass or composite windows.
Used by Weather Shield on the Visions 3000 vinyl window, Pella on the 250 Series and other companies

Application: Vinyl Single and Double Hung Sliding windows

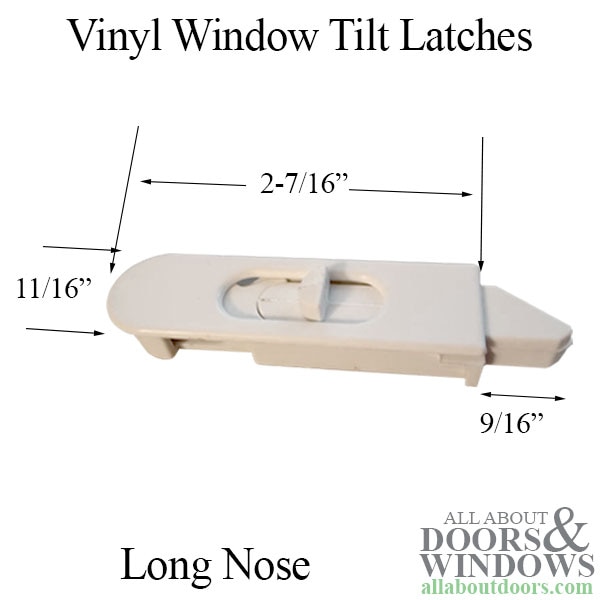

Top Width: 11/16 inch
Top Length: 2-7/16 inch
Nose Offset: 3/16 inch

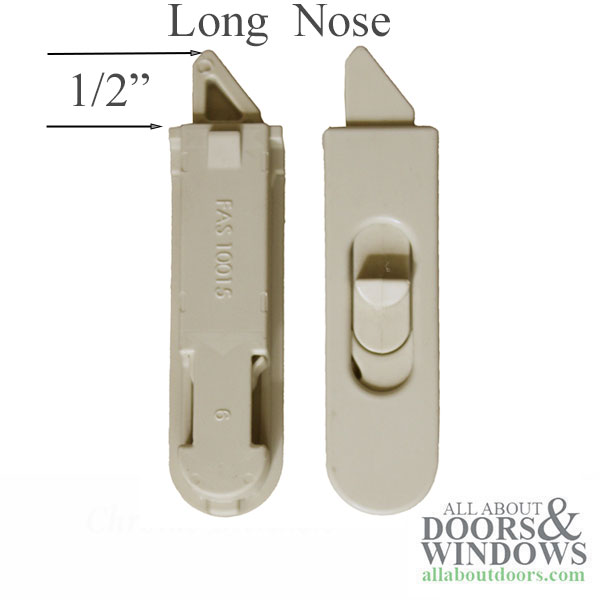

Nose Projection: 1/2 inch
Nose Shape: 45 degree
Thumb Button: Standard, low profile
Material: Vinyl / Plastic

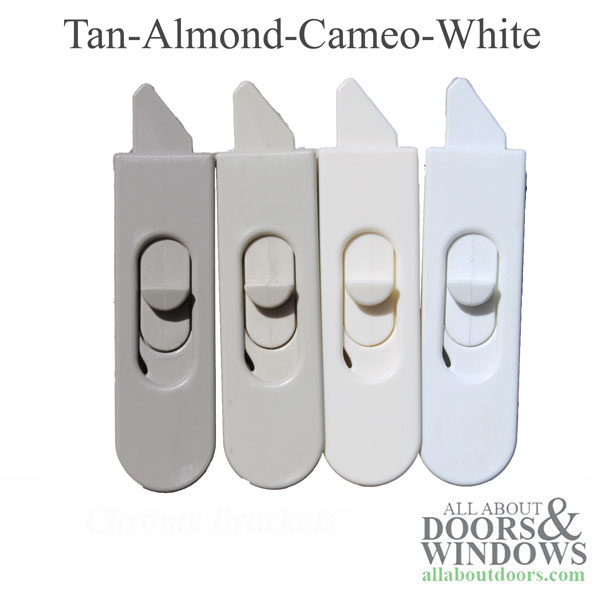

Available Colors:
Desert Tan

Sold in Paris, 1 Left, 1 Right

Product Highlights
Recommended for: composite and vinyl windows
Designed to deliver a smooth quality feel, with easier and quieter operation
Stainless steel spring for corrosion resistance
Fits snugly in check rail with friction fit
Slide-in installation with smooth operation and feel
Proven marketplace design for vinyl, now applied to wood, with no route change needed
