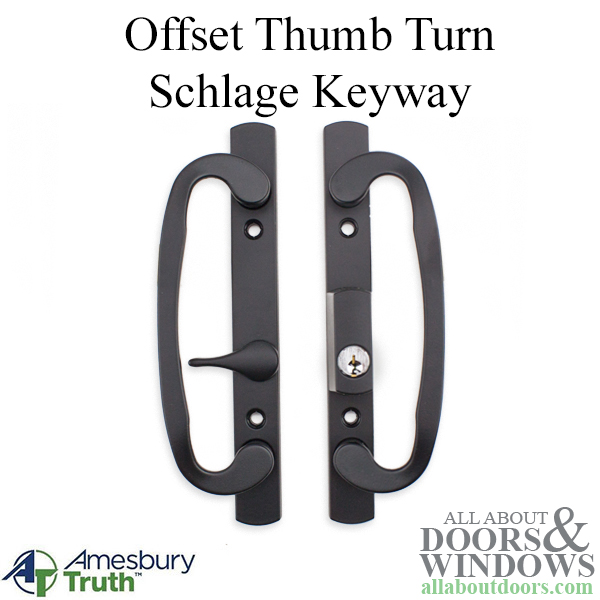

Legacy Glass Sliding Door Handle Set, Keyed with Offset Thumbturn, Schlage Keyway, Choose Color

Back
Price:$45.41 to $198.22
Part Number: 14253-SC1
Price:$45.41 to $198.22

Legacy Handle Set for Sliding Door, Keyed Lock with Weiser Keyway for Active Door
Non-Handed, Thumb Turn Position: OFF CENTER

Markings:
Sash Control 2265 Stamped on back of plate
Type: Uses Mortise Style Lock (Lock is inside door panel)
Does not include Internal mortise Latch - Sold Separately
(See 15142 for Wood & Vinyl Doors or 15143 for Metal Doors)

Function:
Active, with Keyed Lock
Keyway: Schlage
Rekeyable: Yes, 5 pin lock
OPTIONAL: To make a Weiser keyway, purchase cylinder separately

Escutcheon Plate Height: 8-1/2 Inch
Escutcheon Plate Width: 1 Inch

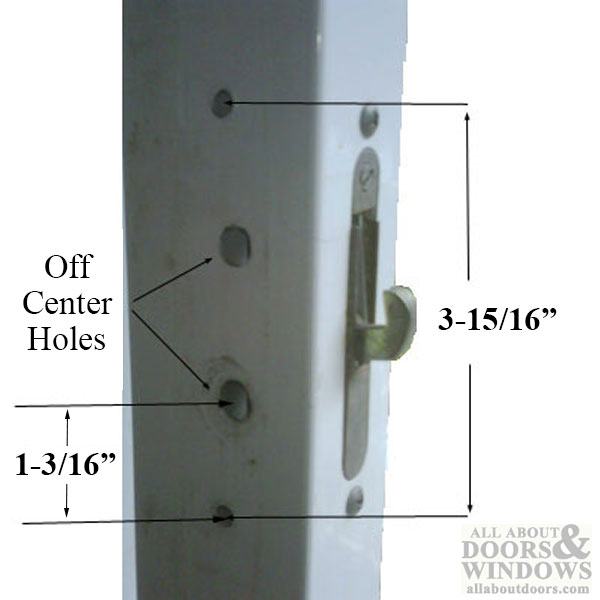

Escutcheon Plate Hole Center: 3-15/16 Inch
Handing: Non-Handed, fits left or right hand doors
Door Thickness: 1-3/4 inch thick door

Base Material:
Zinc on standard hardware, Brass on Premium Hardware

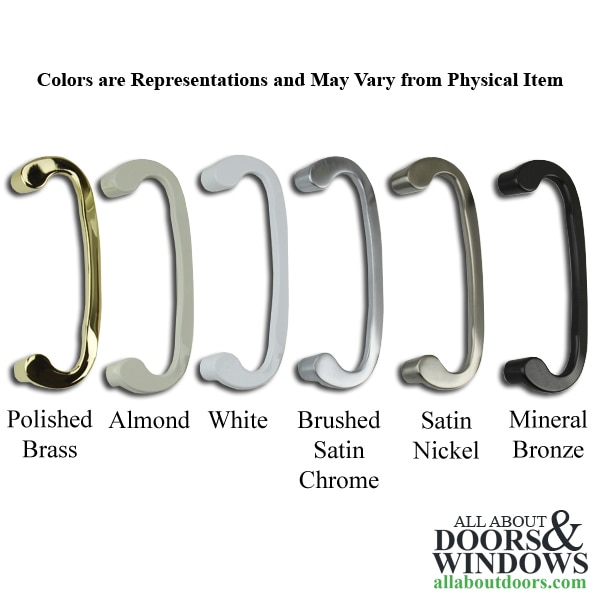

Standard Colors / Finishes:
White
Black
Almond
Mineral Bronze
Plated Polished Brass

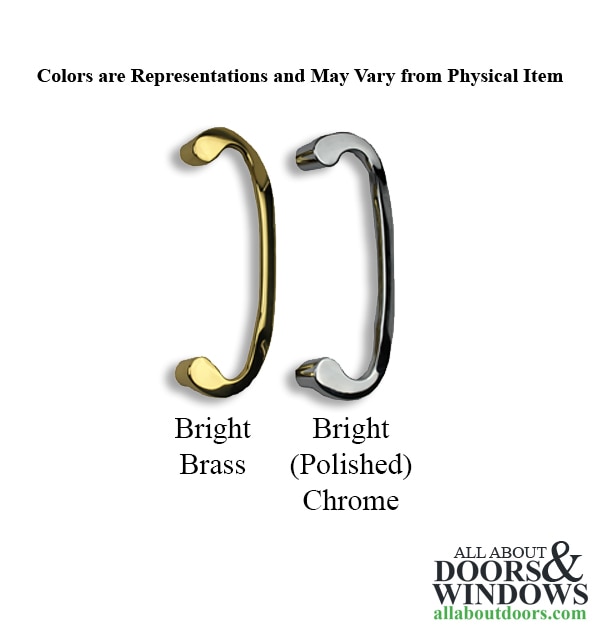

Premium Color / Finishes:
Solid Polished Brass
Bright Brass
Brushed/Satin Chrome
Bright (Polished) Chrome
Lifetime Brushed/Satin Nickel (PVD)

The Legacy Handle Set consists of non-handed two piece construction
It can be mixed and matched by color, keyed, non-keyed and dummy versions.
Handle Set may be used with Single or Multi-Point Locks and can be keyed alike or different.
This set is compatible with 3 or 4 hole pattern hole fabrication and 1-3/4 inch stile thickness.
(others will fit 1-1/4 to 2-1/4 thick doors - Check with office )

Contents: 1 Inside Plate, 1 Inside Handle, 1 Outside Plate, 1 Outside Handle and Installation Screws.
Schlage Keyed Cylinder, 2 keys

These handles are available in 30 Colors/Finishes
Finishes not listed here are Special Order and will require additional lead time and possibly cost.
Please contact the office for further information on how to order special finishes.


Related Parts:
14251 - Non Keyed, Off Center Thumb Turn
14252 - Non Keyed, Centered Thumb Turn
14253-WR - Keyed Version, Off Center Thumb Turn (Special Keyway)
14253-SC1 - Keyed Version, Off Center Thumb Turn (Schlage Keyway)
14254-WR - Keyed Version, Centered Thumb Turn (Special  Keyway)
14254-SC1 - Keyed Version, Centered Thumb Turn (Schlage Keyway)
14255 - Dummy Version, NO thumb turn
