Legacy Handle Set for Sliding Door, Keyed Lock with Weiser Keyway for Active Door
Non-Handed, Thumb Turn Position: CenteredMarkings:
Sash Control 2265 Stamped on back of plate
Type: Uses Mortise Style Lock (Lock is inside door panel)
Does not include Internal mortise Latch - Sold Separately
for Wood & Vinyl Doors or 15143
for Metal Doors)Function:
Active, with Keyed Lock
Rekeyable: Yes, 5 pin lock
lock 5 pin, SC1 key

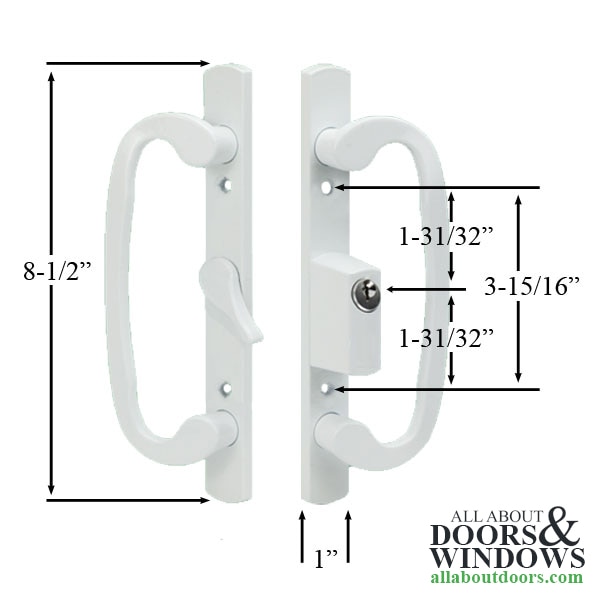

Escutcheon Plate Height: 8-1/2 Inch
Escutcheon Plate Width: 1 Inch
Escutcheon Plate Hole Center: 3-15/16 Inch
Handing: Non-Handed, fits left or right hand doors
Door Thickness: 1-3/4 inch thick doorBase Material:

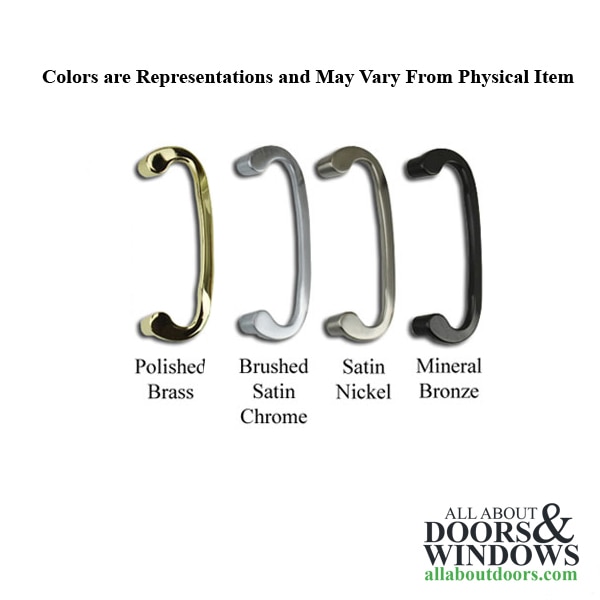

Zinc on standard hardware, Brass on Premium HardwareStandard Colors / Finishes:
Oil Rubbed Bronze
Plated Polished BrassPremium Color / Finishes:
Solid Polished Brass
Lifetime Brushed/Satin Nickel (PVD)
The Legacy Handle Set consists of non-handed two piece construction
It can be mixed and matched by color, keyed, non-keyed and dummy versions.
Handle Set may be used with Single or Multi-Point Locks and can be keyed alike or different.
This set is compatible with 3 or 4 hole pattern hole fabrication and 1-3/4 inch stile thickness.
(others will fit 1-1/4 to 2-1/4 thick doors - Check with office )Contents:
1 Inside Plate, 1 Inside Handle, 1 Outside Plate, 1 Outside Handle and Installation Screws.
Weiser Keyed Cylinder, 2 keys
These handles are available in 30 Colors/Finishes - Special Order, additional lead time and cost.
Contact office to order special Colors/Finishes. Colors AvailableRelated Parts:14251
- Non Keyed, Off Center Thumb Turn 14252
- Non Keyed, Centered Thumb Turn 14253-WR
- Keyed Version, Off Center Thumb Turn (Weiser Keyway)14253-SC1-KIT
- Keyed Version, Off Center Thumb Turn (Schlage Keyway)14254-WR
- Keyed Version, Centered Thumb Turn (Weiser Keyway) 14254-SC1-KIT
- Keyed Version, Centered Thumb Turn (Schlage Keyway) 14255
- Dummy Version, NO thumb turn
