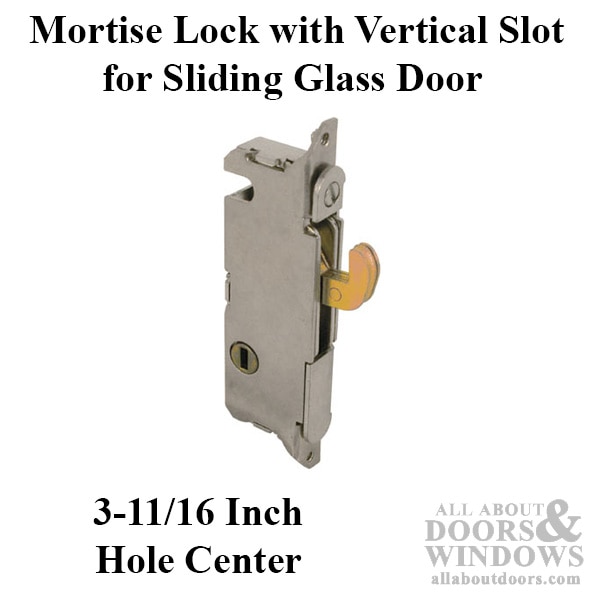

Common Mortise Lock, Vertical Slot Metal Sliding Patio Doors, W & F Style

Part Number: 15143
Price: $12.53

W&F style mortise lock - face has round end with vertical slot when locked.
Squared off lock body with flat mounting plate Installed with 6-32 machine screw;
7/8" Backset
Internal latch for primarily metal glass sliding patio doors;
Note: wood & vinyl doors usually use the 15142 with 45 degree slot.
Faceplate: radius corners / round ends
Installation Screw Holes: 3-11/16 inch center to center
Lock Body: 1/2 wide, 1-1/8 deep, 3-3/16 length
Keyway Slot: vertical when locked

Related Parts:

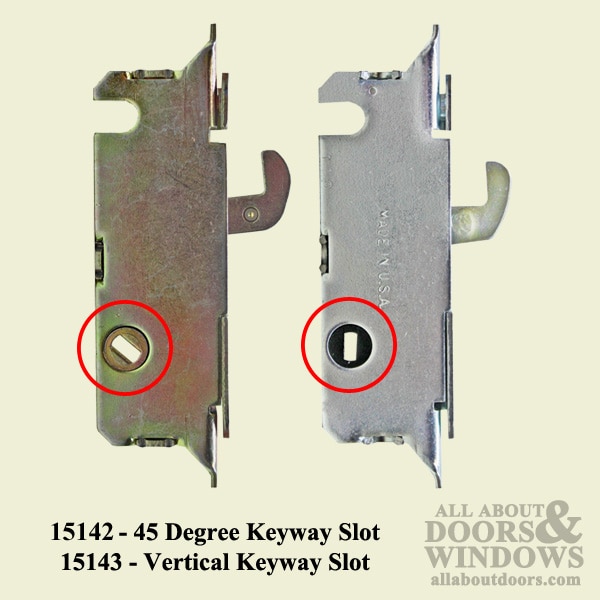

15142: 45 degree Keyway Slot primarily for wood and vinyl patio doors

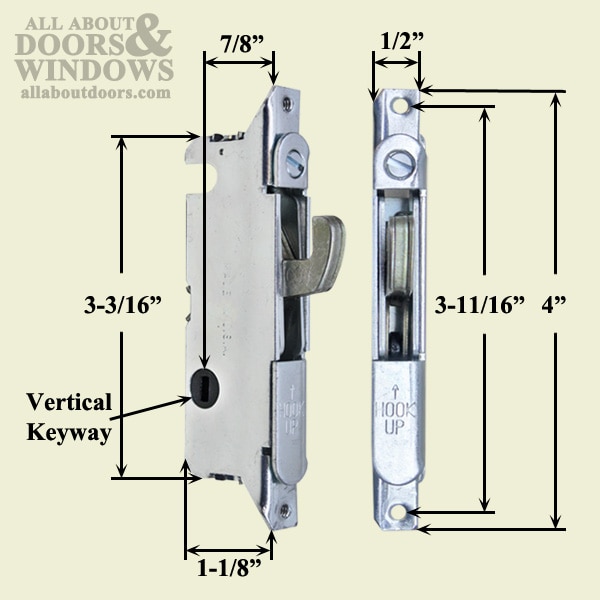

Note: See additional pictures for dimensions

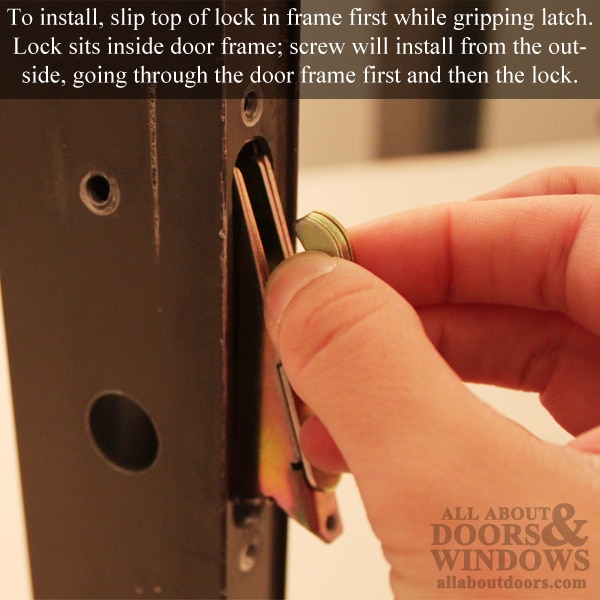

VIDEO: How to Replace Single-Hook Lock (part # 15143) in a Sliding Door

Cross Reference mortise latch numbers
Prime Line E-2013
SlideCo  15410
Strybuc 16-174
Amesbury 2310-1061
Adams-Rite MS-1848-06-630
