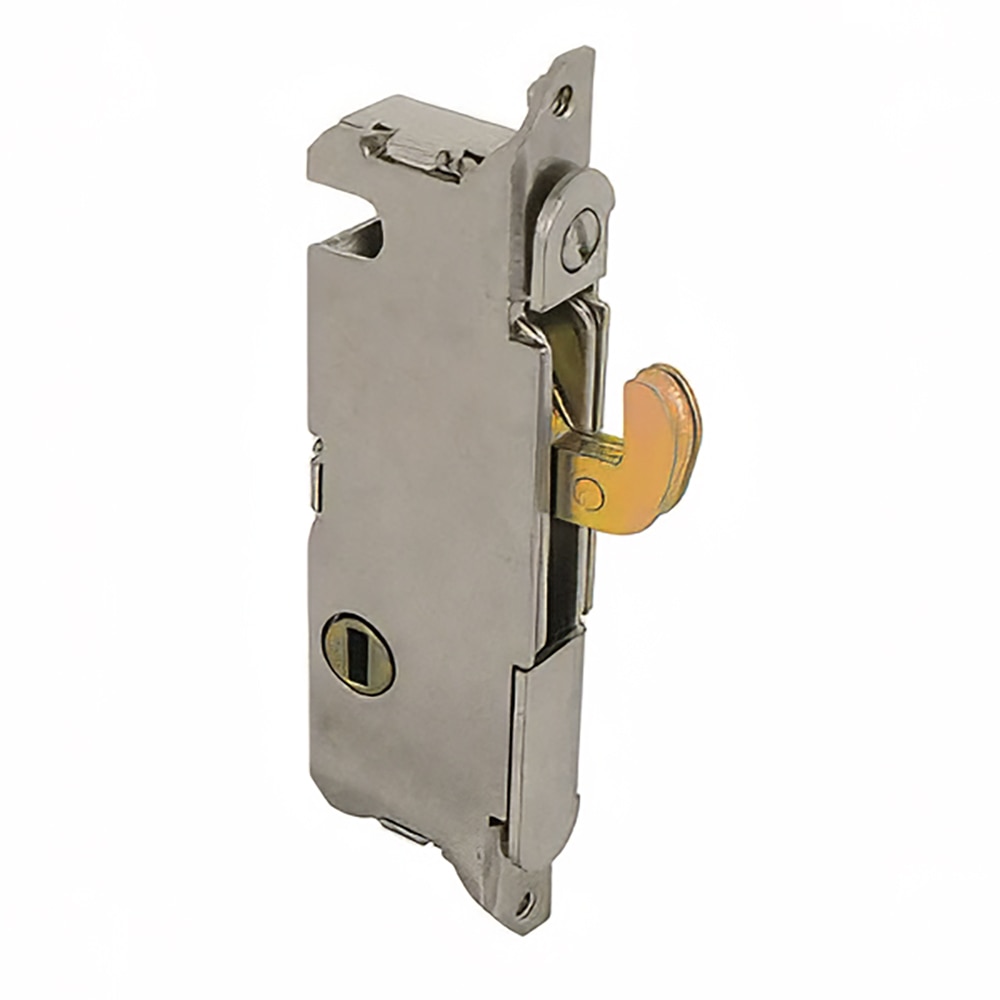

Mortise Lock For Sliding Patio Doors 45 Degrees Slot For For Wood And Vinyl Sliding Patio Doors

Common Mortise Lock, 45° Slot Wood & Vinyl Patio Doors, W & F Style

W&F Style mortise lock - round end with 45 degree slot when locked.

Available Finishes: Zinc Dichromate and Stainless Steel

7/8'' Backset

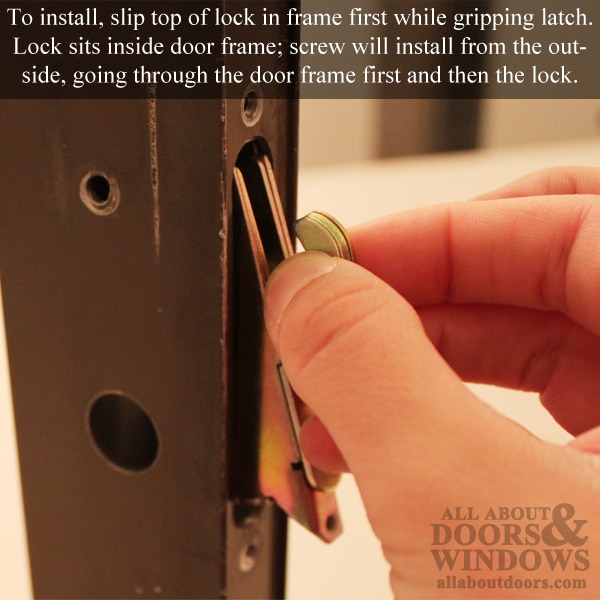

Installed with 6-32 machine screw
Internal Latch for primarily Wood and Vinyl Glass Sliding Patio Doors

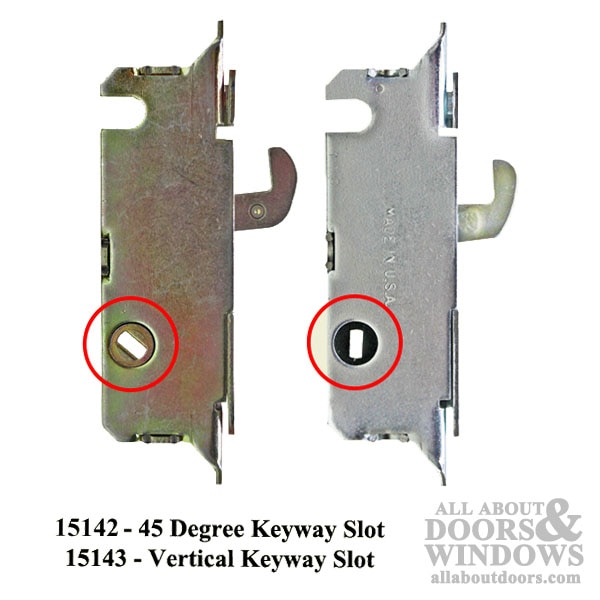

Note: Metal Doors usually use the 15143 vertical keyway Latch

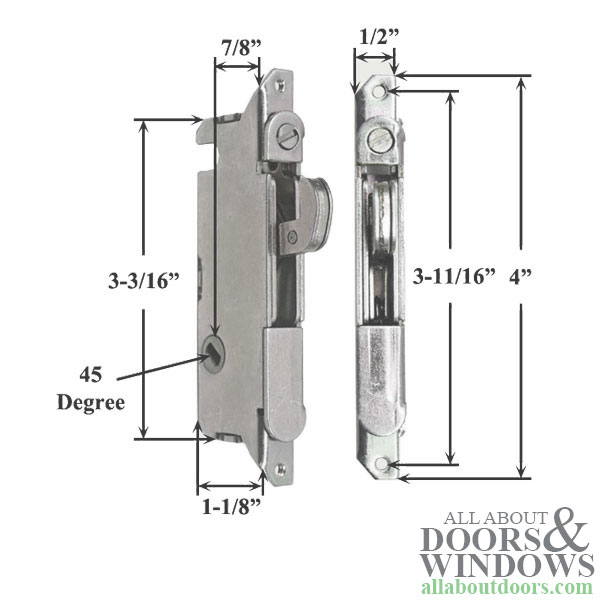

Hole Center: 3-11/16-inch
Keyway: 45 Deg.
