Olympus Handle Center Thumb, Keyed Sliding Glass Door - Schlage Keyway, Choose Color

Centered Thumb Turn, Non-Handed Keyed Active Olympus Handle Set for Sliding Patio Doors
Olympus handle set is all zinc diecast, 3-15/16 inch screw hole spacing for wood, vinyl, fiberglass or aluminum doors.

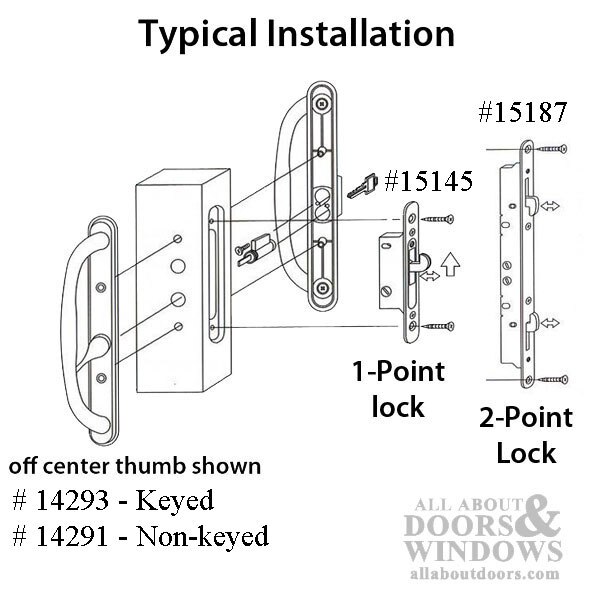

Handle Set may be used with Single, Double or Multi-Point Locks
This set is compatible with 3 hole pattern hole fabrication, for 1-3/4 inch thick doors
(Optional Screws for 1-1/4 to 2-1/4 inch stile thickness available)

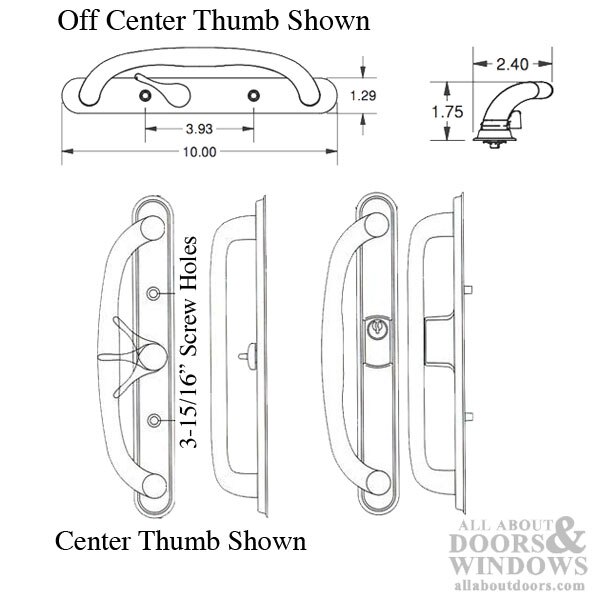

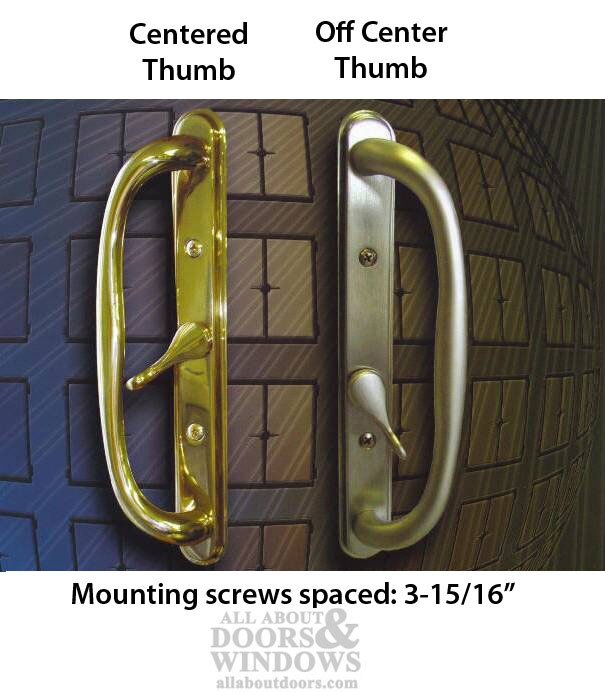

Thumb Turn Position: Centered on Plate (some are Off Centered)
Escutcheon Plate Height: 10 Inch
Escutcheon Plate Width: 1-5/16 Inch
Escutcheon Plate Screw Hole: 3-15/16 Inch Center
Handing: Non-Handed, fits left or right hand doors
Latch Style: Hook Style
Handle Type: Internal Mortise Lock Style

Door Thickness: Standard 1-3/4 inch - Optional 1-1/4 - 2-1/4 Inch available
Function: Active KEYED, 2 Keys with Lock
Keyway: Schlage (Purchase 15033 to make into a Weiser keyed handle set)
Material: Zinc Diecast

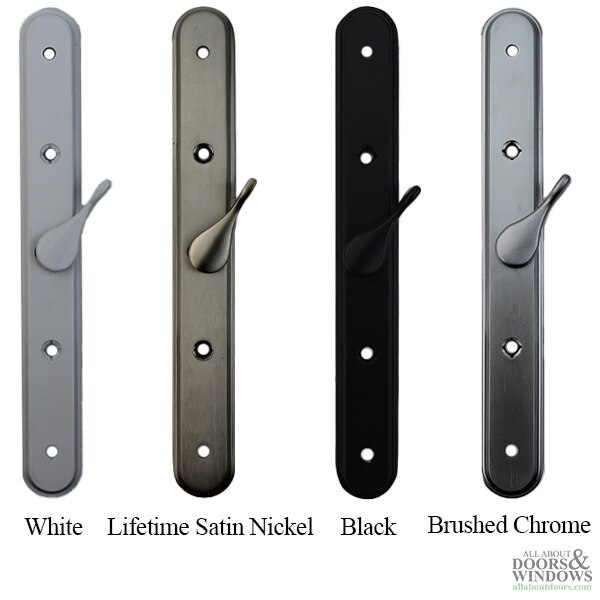

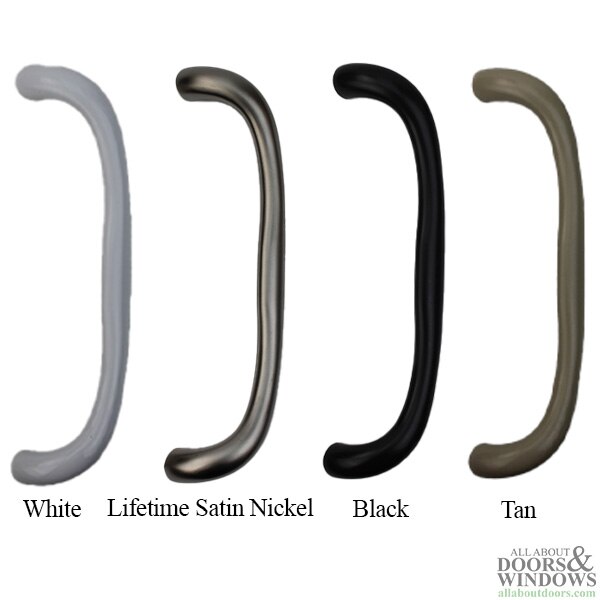

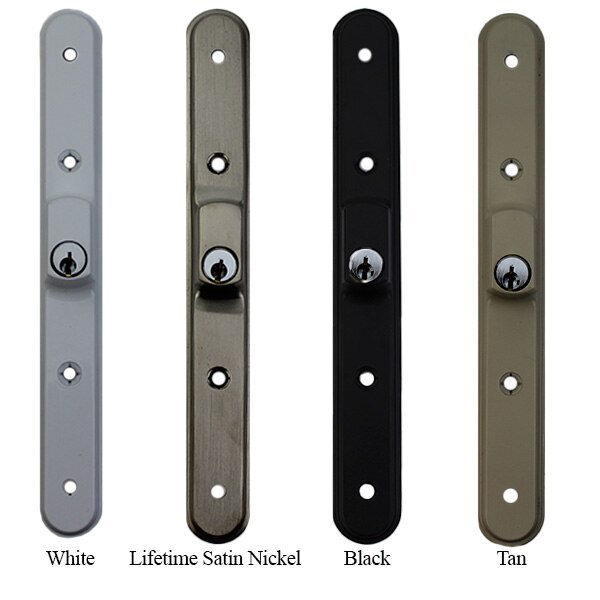

Finish: Brushed Chrome, Black Lifetime Satin Nickel, Tan, White

Contents: 1 Inside Plate, 1 Inside Handle, 1 Outside Plate, 1 Outside Handle, Keyed cylinder, 2 Keys and Installation Screws
NOTE: One and Two point mortise locks not included

Special Note:
These handle sets are shipped in clear blister pack which can put minor rub marks on the surface. Some shipping carriers do not handle packages with care. Minor scratches or blemishes that occur in shipping are not defects.

Related Parts:
14293-WR: Olympus Keyed Handle Set, Off-Center Thumbturn, Weiser Keyway
14293-SC1: Olympus Keyed Handle Set, Off-Center Thumbturn, Schlage Keyway
14294-WR: Olympus Keyed Handle Set, Centered Thumbturn, Weiser Keyway
14294-SC1: Olympus Keyed Handle Set, Centered Thumbturn, Schlage Keyway
151006 - Keyed Lock Cylinder (Weiser or Kwikset Keyway)
