Olympus Sliding Glass Patio Door Handle Weiser Keyed Center Thumb Turn Door Handleset

Part Number: 14294-WR
Price:$58.80 to $98.28

Olympus Keyed Handle Set, CENTER Thumb, Sliding Glass Patio Doors


Used on wood, vinyl, fiberglass, composite or aluminum doors.
Handle Set may be used with Single, Double or Multi-Point Locks
This set is compatible with 3 hole pattern hole fabrication
(Optional Screws for 1-1/4 to 2-1/4 inch stile thickness available)
One and Two point mortise locks not included.


Application: Used with Internal Mortise Lock with hook type latch

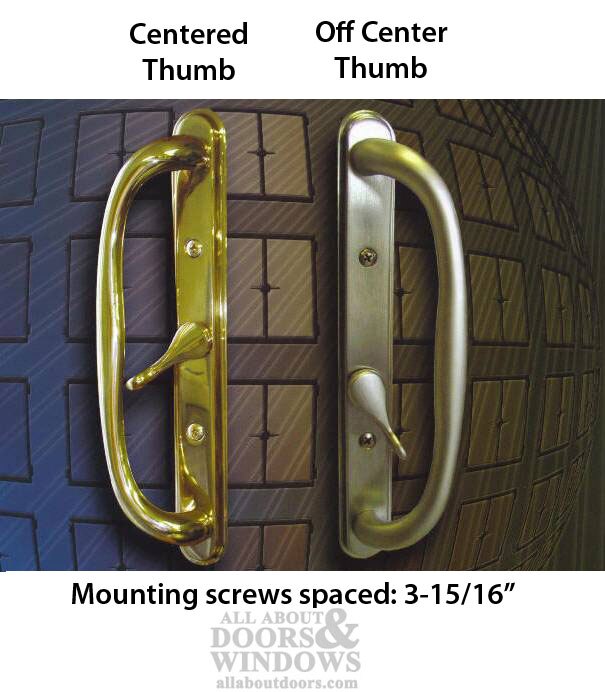

Thumb Turn Position: Centered on Plate (some are Off Centered)

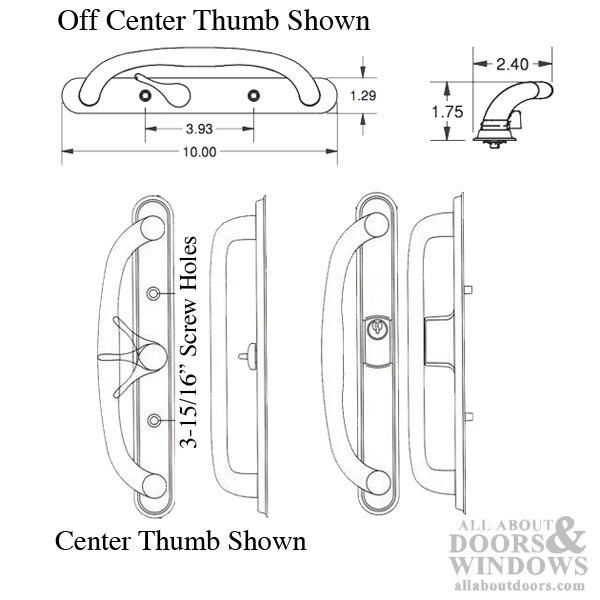

Escutcheon Plate Width: 1-5/16 Inch
Escutcheon Plate Height: 10 Inch
Escutcheon Plate Screw Hole: 3-15/16 Inch Center
Handing: Non-Handed, fits left or right hand doors
Door Thickness: Standard 1-3/4 inch - Optional 1-1/4 - 2-1/4 Inch available
Function: Active KEYED, 2 Keys with Lock
Keyway: Special Restricted keyway - Key blanks not available locally
Material: Zinc Diecast

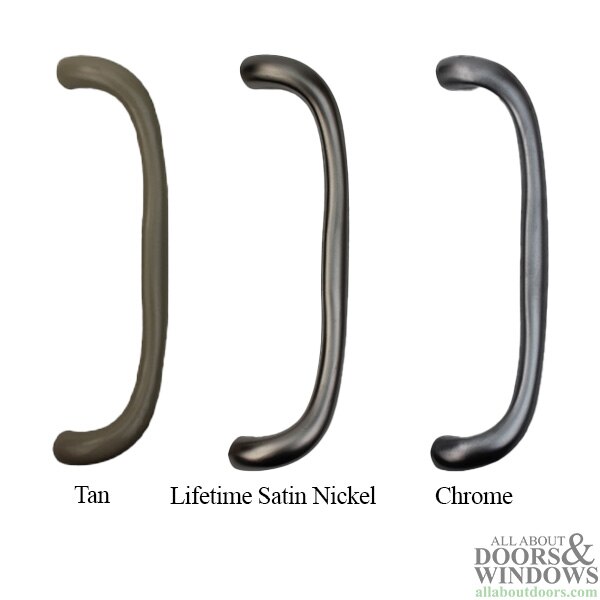

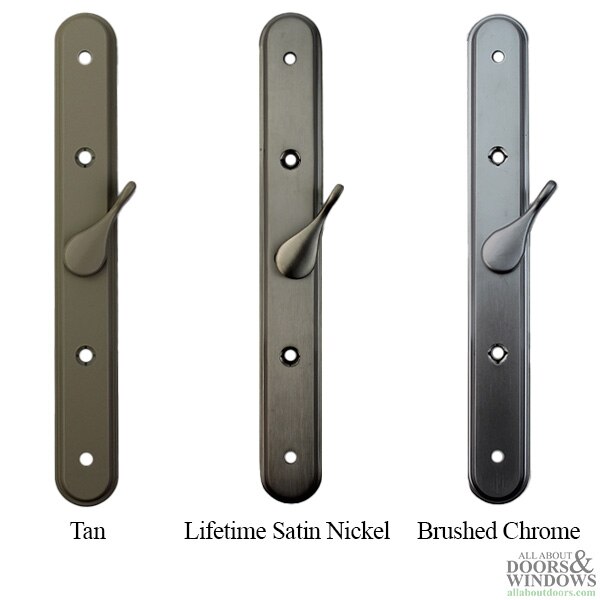

Finish: Satin Chrome, Tan
Other Finishes: See 14294-SC with Schlage 5 pin

Contents: Inside/Outside Plate, Inside/Outside Handle, Keyed cylinder, 2 Keys, Installation Screws

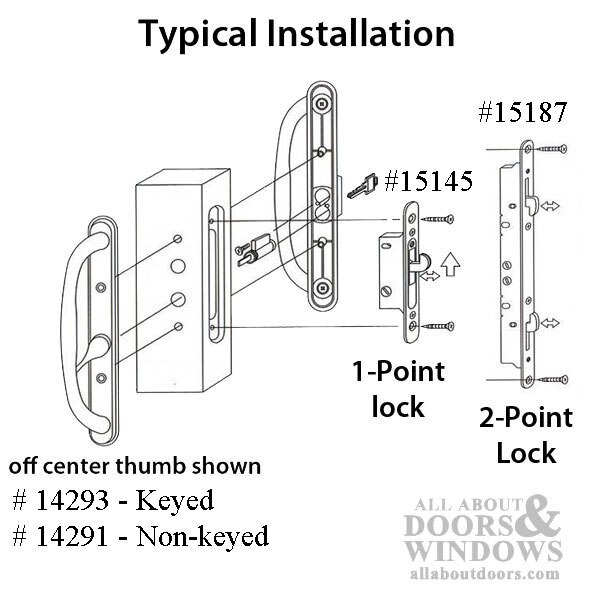

Related Patio Door Hardware:
14291 - Non Keyed, Off Center Thumb Turn
14292 - Non Keyed, Centered Thumb Turn
14293-WR: Olympus Keyed Handle Set, Off-Center Thumbturn, Weiser Keyway
14293-SC1: Olympus Keyed Handle Set, Off-Center Thumbturn, Schlage Keyway
14294-SC1: Olympus Keyed Handle Set, Centered Thumbturn, Schlage Keyway
14295 - Dummy Version, NO thumb turn
15145 - Single Point mortise lock
15187 - Two Point mortise lock
