Hoppe Multipoint Lock, 1-3/8" backset, Manual 2 rollers Bottom @ 29.53" & Top @ 50.59

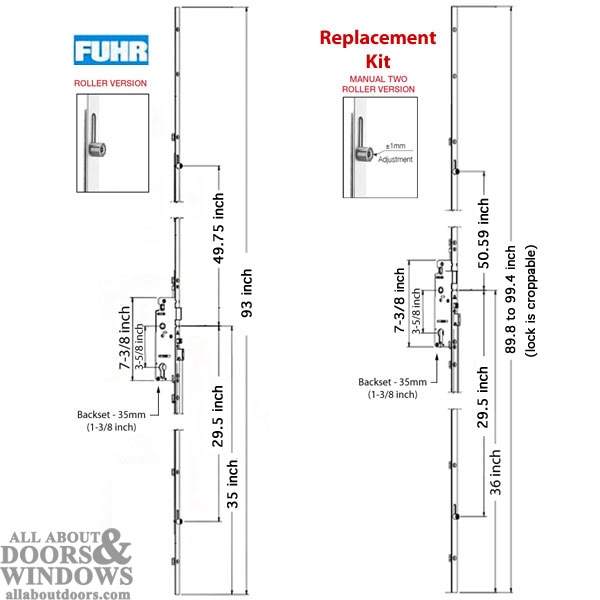

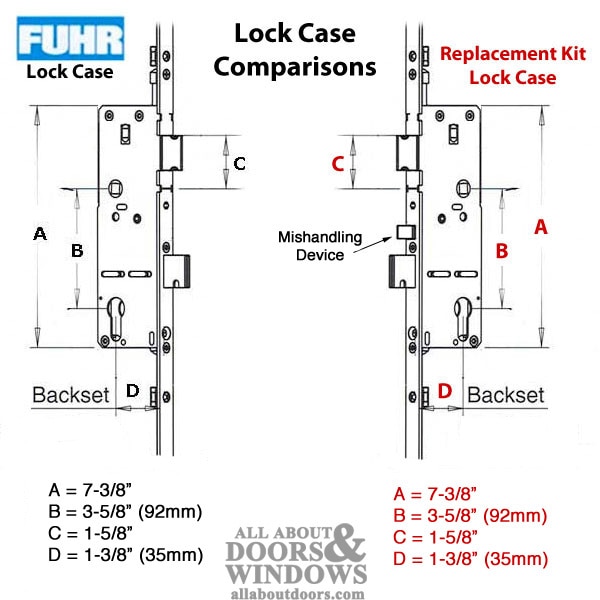

This HOPPE multipoint lock replaces both automatic and manual versions of FUHR 93 inch 2-roller multipoint locks (replaces parts # 499010399 & 499010699)

HOPPE Replacement Kit for a variety of Multipoint locks on doors with Old Hoppe, Fuhr, Roto, Weather Shield or other brands that may not be available.

Please confirm all measurements to be sure this is the correct replacement for your door.

The kit includes bottom gear, top extension and stainless steel screws

PLEASE REVIEW ALL IMAGES FOR IMPORTANT DETAILS.

Please review all images for important details, You  need to be familiar with all terms

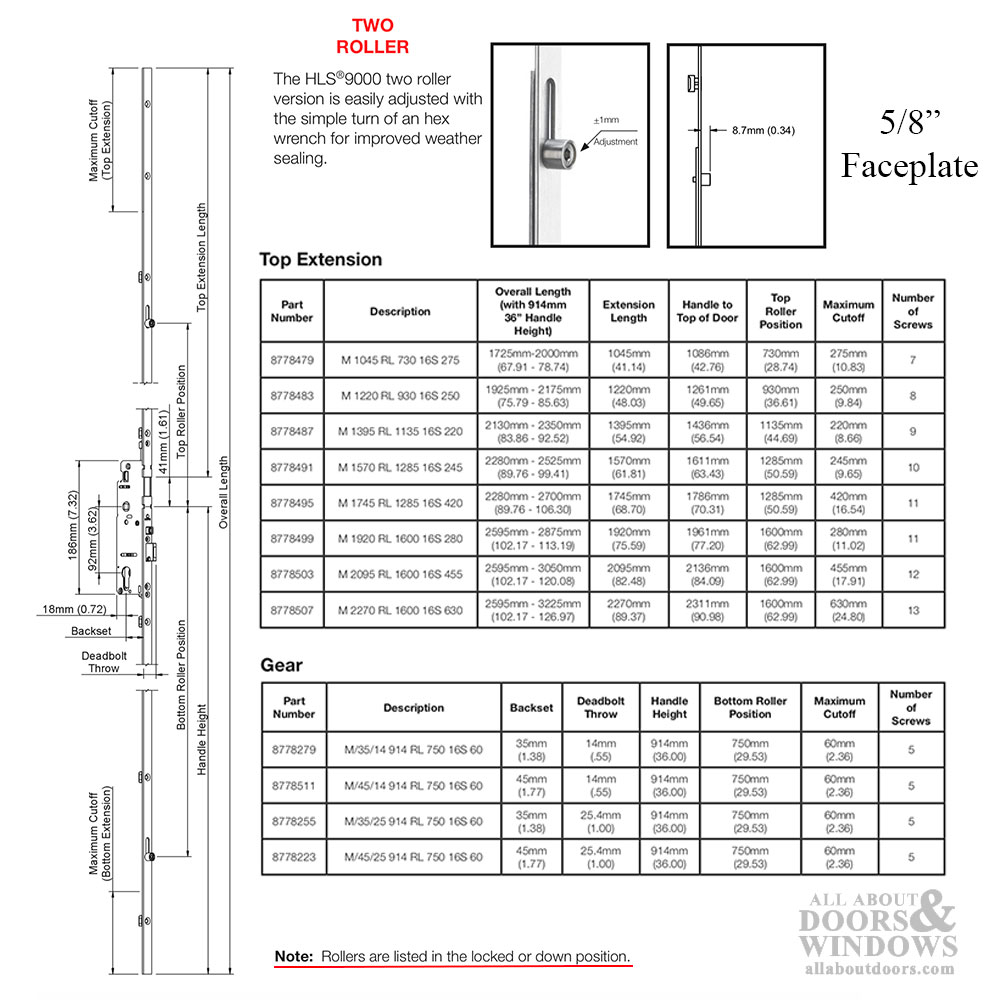

Specifications:

Lock Type: Manual, Two Roller

Faceplate Width: 5/8 inch (16mm)

Backset: 1-3/8 inch (35mm)

Handle to Cylinder PZ: 3-5/8 inch (92mm)

Deadbolt Throw: 1 inch  (25.4mm)

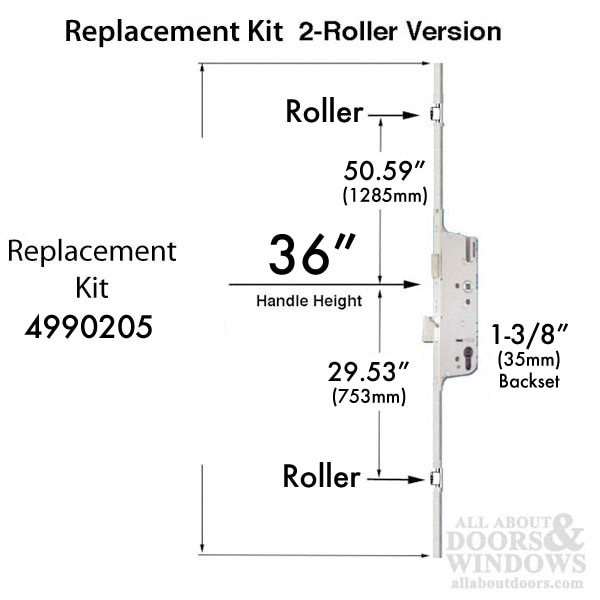

Handle Height: 36 inch ( 914mm)

Top Roller Position: 50.59 inch ( 1285mm)

Bottom Roller Position: 29.53 inch ( 750mm)

Note: Rollers are measured with rollers in locked position

Overall Length: Doors 89.76 - 99.41 (2280 - 2525mm)

Croppable: Yes, Max cutoff from top extension 2.36 inch (60mm)

Note: This multipoint lock can be trimmed for different height doors.

Kit Contents:

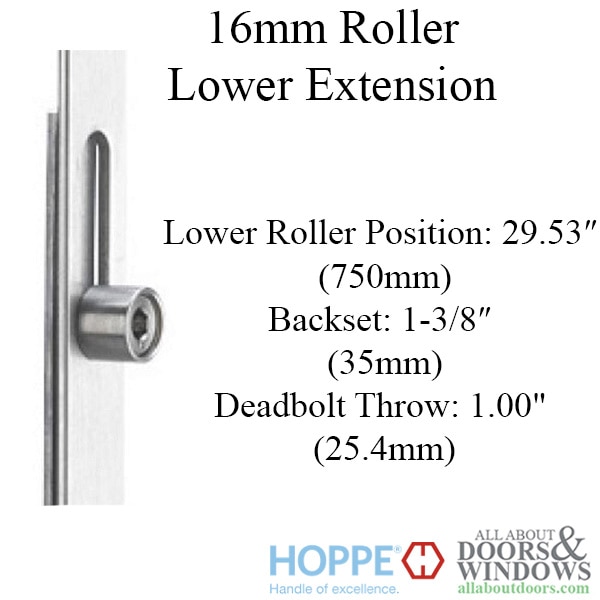

8778255 - 5/8 wide faceplate,  Manual Gear, 1-3/8" backset, Bottom Roller @ 29.53",  1" D/B

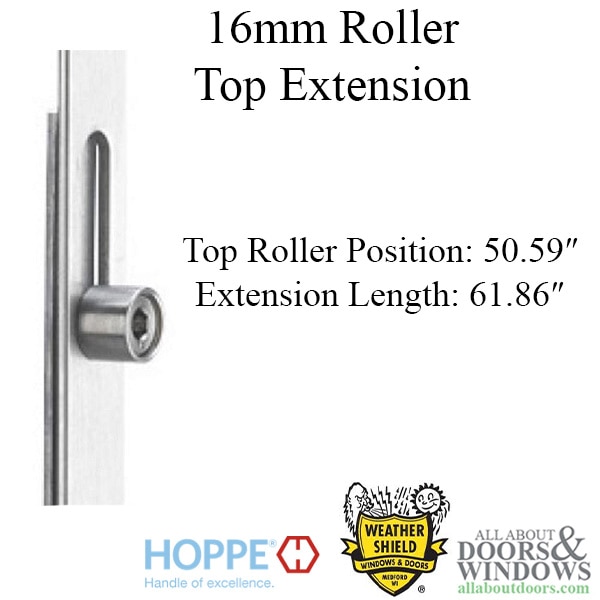

8778491 - 5/8 wide faceplate, Top Extension, Roller @ 50.59" (1285mm) Length  61.81" (1570mm)

8785695: Installation Screws, 1-3/8 Length (35mm) - Stainless Steel (20)

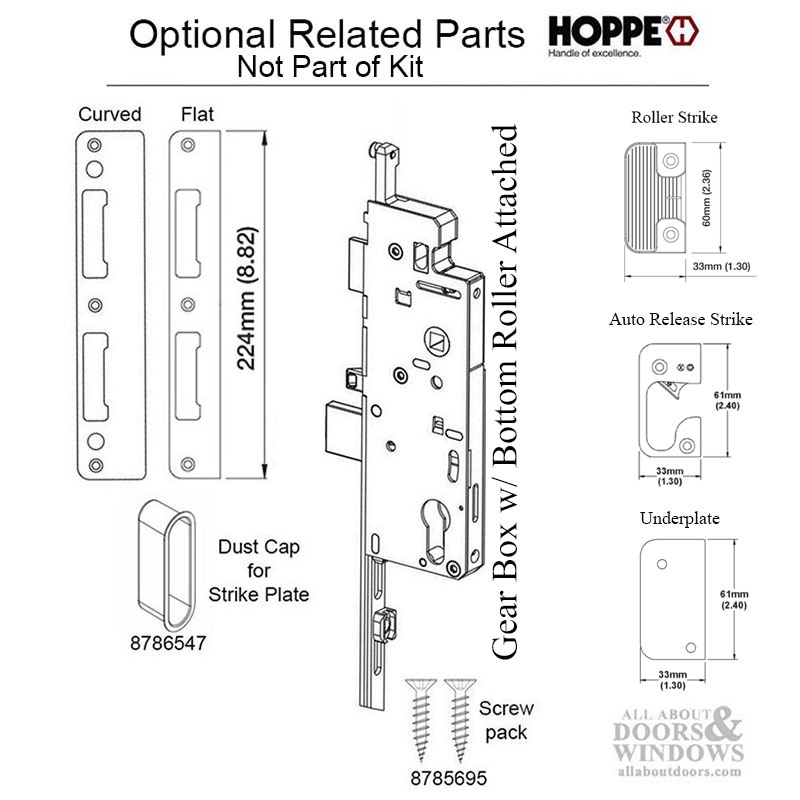

Optional Related Parts: 1-3/4" Door - Stainless Steel

8783867 - Auto-Release Strike Plate - Brass

8783871 - Auto-Release Strike Plate - Nickel

8784775 - Underplate for Auto Release - Brass

8784783 - Underplate for Auto Release -Nickel

8785003 - Roller Strike Plate - Brass

8784999 - Roller Strike Plate - Nickel

1963554 - Latch & Deadbolt Strike Plate, Curved 1-3/4" (45mm) door - Stainless Steel

2342311 - Latch & Deadbolt Strike Plate, Flat 1-3/4" (45mm) door - Stainless Steel

8786547 - Dust cap for strike plate

INSTALLATION NOTE: Cutting to length

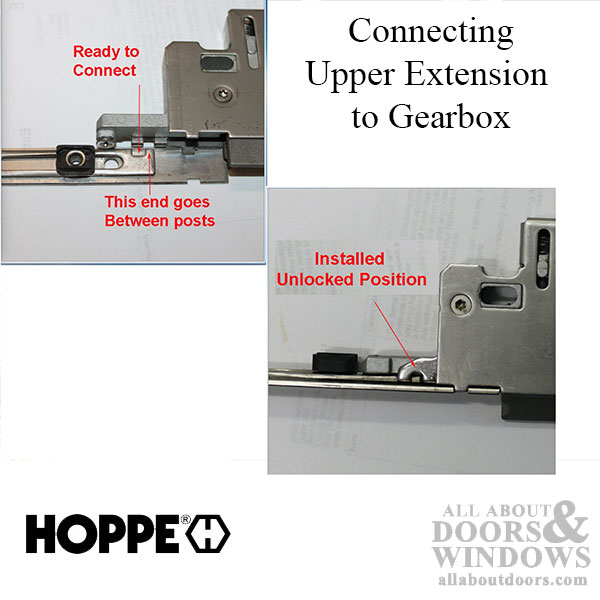

1. Attach top extension to lower assembly

2. Lay the old lock and new lock side by side to get length.

3. The top extension is longer than needed,  Mark the Top extension for proper length.

4. Using a hacksaw cut excess from top of extension

5. Install complete lock, be sure the handle height is the same as before

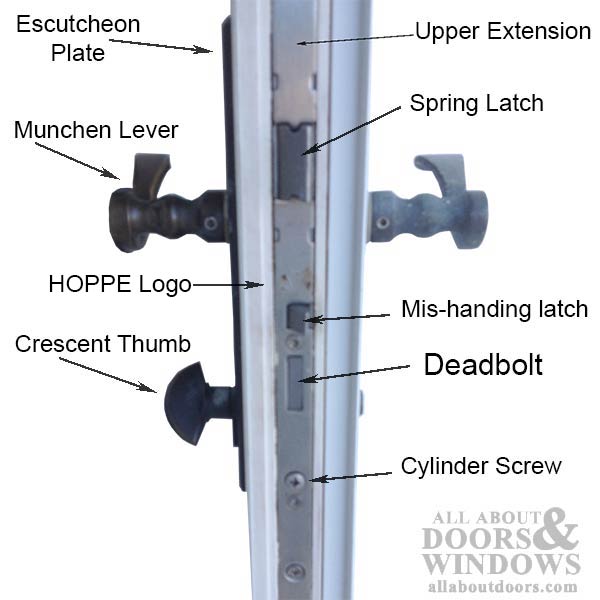

6. Test operation of door BEFORE closing. The small Mis-handing latch must be depressed to operate lock.

Operation: Manual Function

To lock door, Lift handle and then turn thumb turn or Key to extend deadbolt

To unlock door, Turn thumb turn or key and then depress lever.

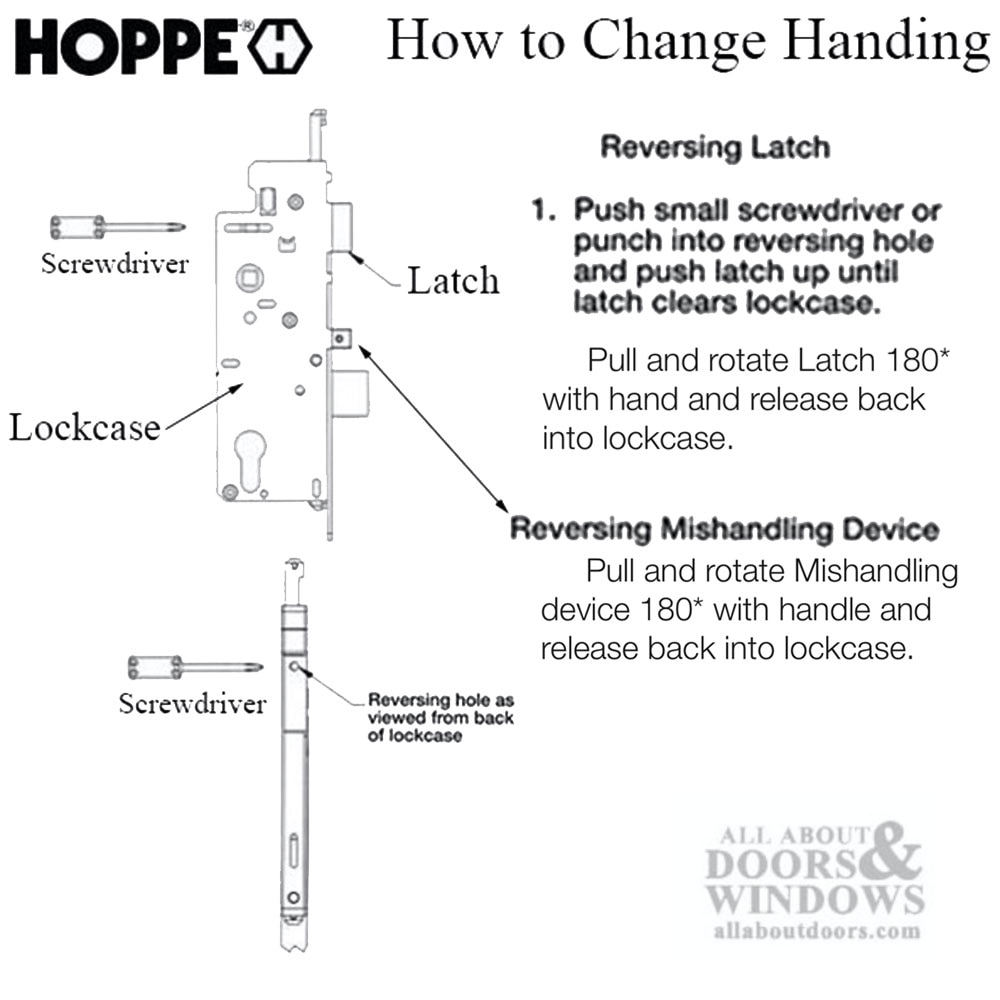

To Change Handling / Reversing Latch

Latch handing may be changed by inserting small screwdriver into small hole in back of latch and pushing forward, Twist latch and release.  See additional pictures.

NOTE 1: Lock will have to be trimmed on bottom due to difference in handle height of new and old locks; top will be trimmed on top as well, to fit your specific door height.

NOTE 2: Replacement process may involve modification to door jamb-- roller strikes may need to be moved up or down in door jamb.

For replacement instructions, read: Replacing FUHR roller multipoint lock with HOPPE roller lock
