Fuhr 93" Automatic 3 Roller Multipoint Lock, 35" Handle Height- See Replacement Options
DISCONTINUED ITEM - SEE REPLACEMENT OPTIONS
Fuhr 93" Automatic 3 Roller Version - 3 actual Rollers on Lock; 1 auto release roller and 2 locking rollers

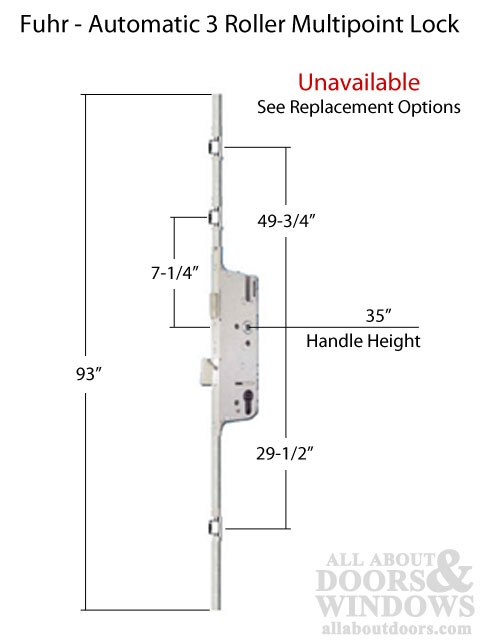

Fuhr Lock Dimensions:
Faceplate Width: 16mm (5/8")
Overall Length: 93"
Handle Height: 35"
Backset: 35mm (1-3/8")
Automatic Release Roller: 7-1/4" up from Handle Cylinder
Top Roller Position: 49-3/4" up from Handle Cylinder
Bottom Roller Position: 29-1/2" down from Handle Cylinder
Color/Finish: Yellow Dichromate (gold)

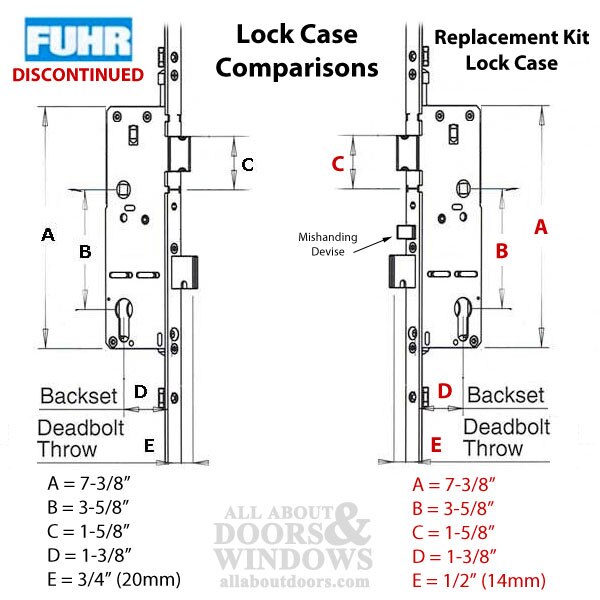

2 Replacement Options:
1. 4990280: HOPPE with roller on bottom and shootbolt on top. This is the easiest replacement for the discontinued FUHR lock: it is a 3-piece system with a bottom roller in the same position as the FUHR lock and a shootbolt on the top instead of a top roller. The top extension will fit doors from 91-3/8 inches to 95-5/16 inches tall and will need to be cut to length. Unlike option 2, this replacement does not require moving roller strikes on the door jamb. Kit includes bottom gear, middle extension, top shootbolt, socket strike and stainless steel installation screws.
2. 4990205: HOPPE with 2 rollers: This replacement is more complex; involves moving strikes on door jamb; lock will fit doors from 89-3/4 inches to 99-7/16 inches tall and will need to be cut to length. Kit includes bottom gear, top extension and stainless steel installation screws.
NOTE: Handle height of both replacement kits is 36 inches-- replacement requires trimming an inch off the bottom of the new lock so handle is at 35 inches to match the holes bored into your door.
Note 2: Both replacement kits operate manually--unlike original FUHR lock, replacement will not automatically lock when door is closed.
For replacement guide for option number 1, read article: Replacing FUHR with HOPPE Roller/Shootbolt
For replacement guide for option number 2, read article: Replacing FUHR with HOPPE Roller
Additional Article: How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
