16mm Manual Gear, 35/92, Roller @ 29.53", 1" Deadbolt Throw

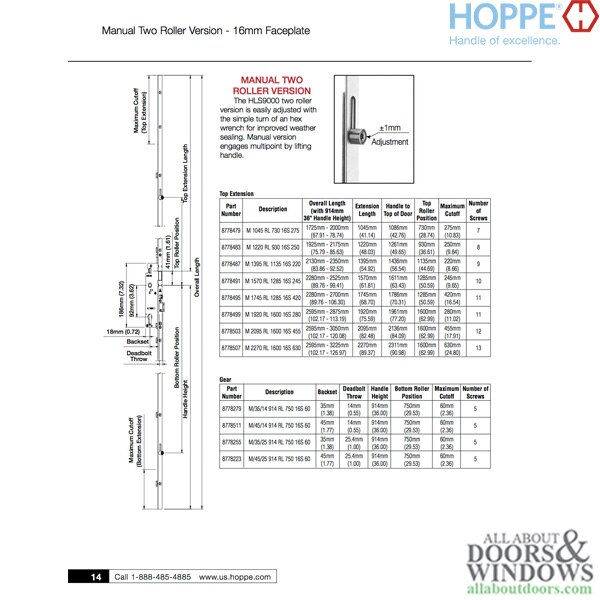

Hoppe HLS9000 Manual Two Roller Version, Bottom Gear for Active Door

Specifications:

• Faceplate Width: 5/8 Inch (16mm)
• Overall Height: 39-9/16 Inches

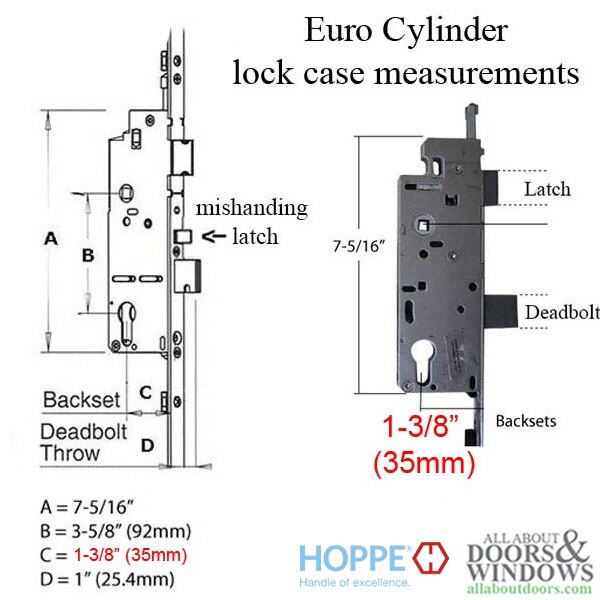

• Backset: 1-3/8 Inches (35mm)
• Deadbolt Throw: 1 Inch (25.4mm)

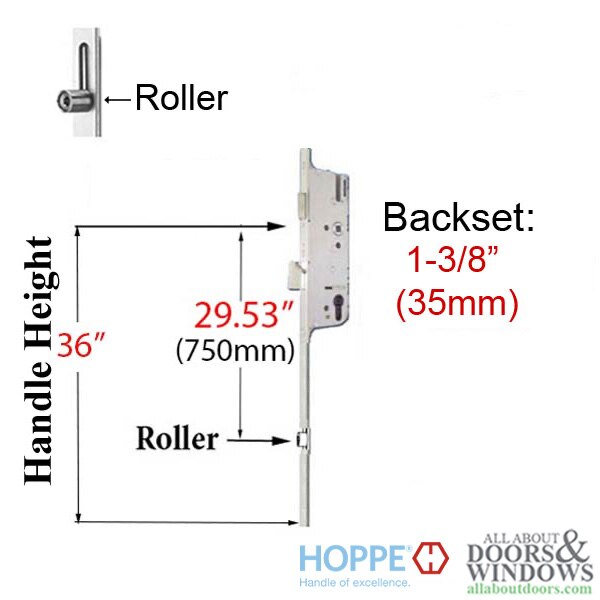

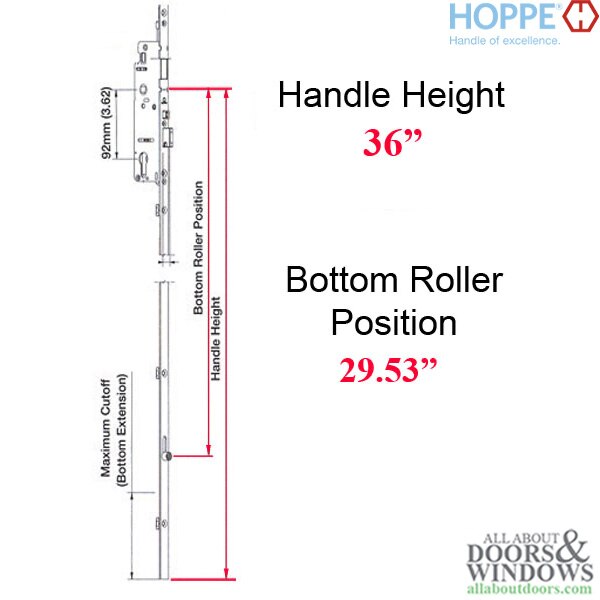

• Handle Height: 36 Inches
• Bottom Roller Position: 29-1/2 Inches
• Maximum Cutoff: 2-3/8 Inches (60mm)
• Number of Screws: 5
