16mm Manual Top Extension, Shootbolt 27.56" length

Part Number: 8778627
Price: $56.75

16mm Top Shootbolt Extension for ACTIVE Hoppe HLS9000  Multipoint Lock

This is the top shootbolt  extension with Croppable end, for adjustable door heights

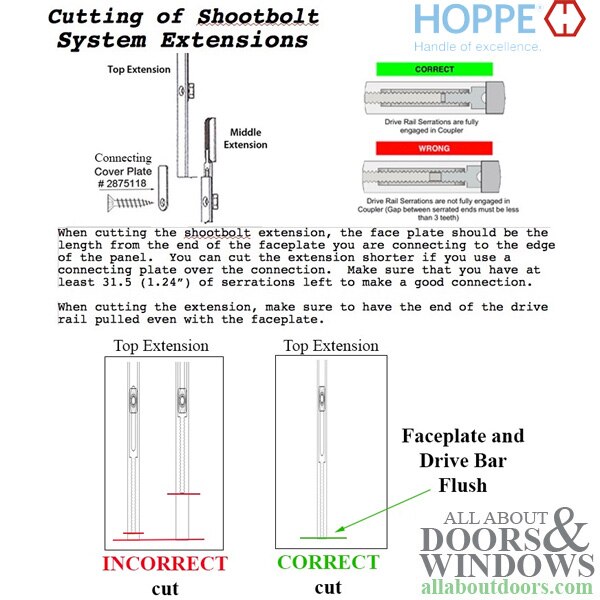

When Cropping (cutting) to desired lengths, be sure the faceplate and serrated drive bar are flush.

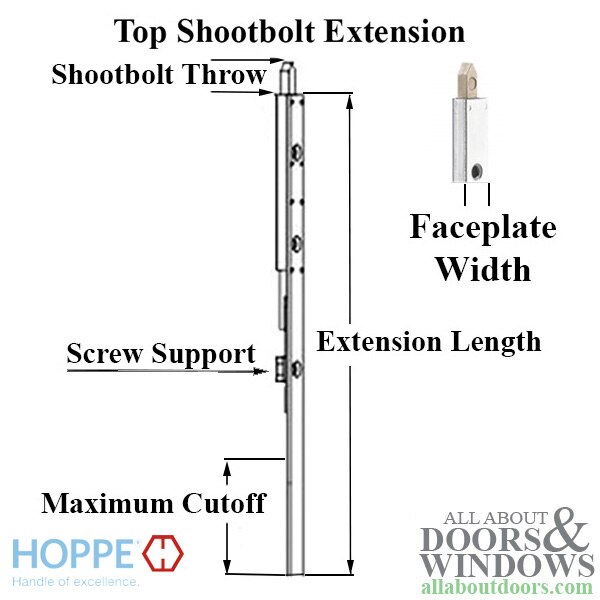

Faceplate width: 5/8 inch (16mm)

Top Extension Length: 27.56 (700mm)

Shootbolt Throw:  3/4 inch (20mm)

Maximum Cutoff: 3.94 inches (100mm)

Number of Screws: 4

Material: Stainless Steel


Popular Hoppe Combinations:

Overall Lock Lengths- when combined with Middle Extensions and 36 inch handle height

8778691 - 27.20 inch Middle Extension; Door Heights   88.43-92.36)

8778695 - 44.92 inch Middle Extension; Door Heights  106.14-110.08

8778699 - 62.64 inch Middle Extension; Door Heights  123.86-127.80


NOTE: 6 middle extensions and 6 Top shootbolt extensions available for various door heights

Handle Height + 1.61 + Middle Extension Length + Top Shootbolt length  = Maximum Overall Length
