16mm Manual Middle Extension, Shootbolt 44.92" length

Part Number: 8778695
Price: $47.55

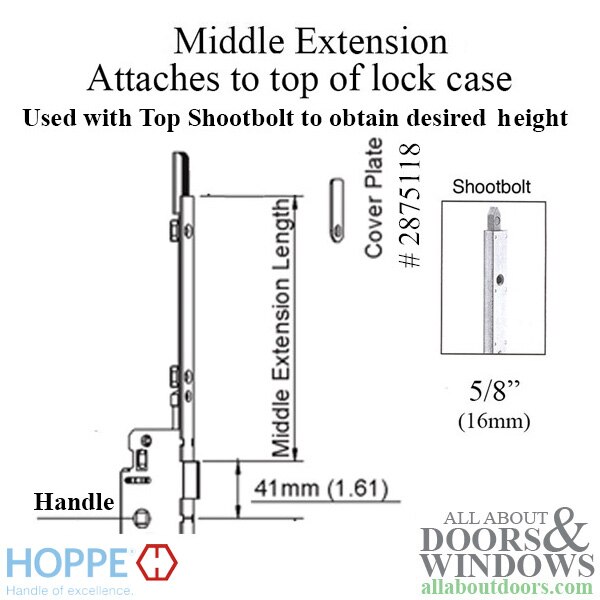

Hoppe HLS9000 Middle Extension. for Active Shootbolt with 5/8 inch  faceplate width

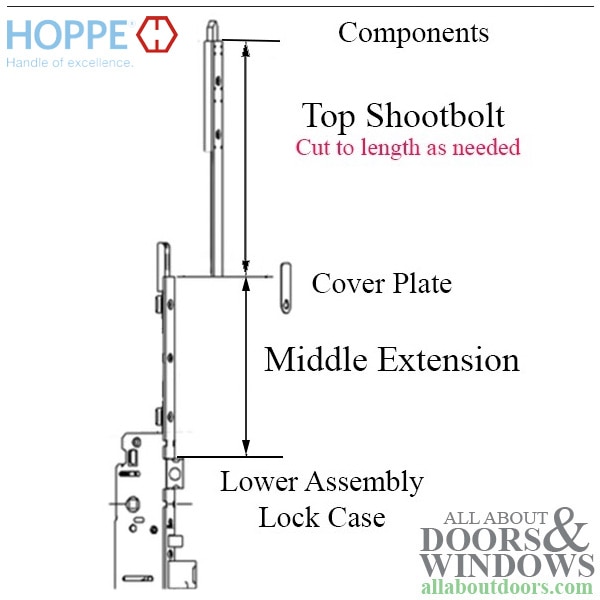

There are 3 basic Middle Extensions used in combination with 6 Top Shootbolt Extension to obtain desired door heights.

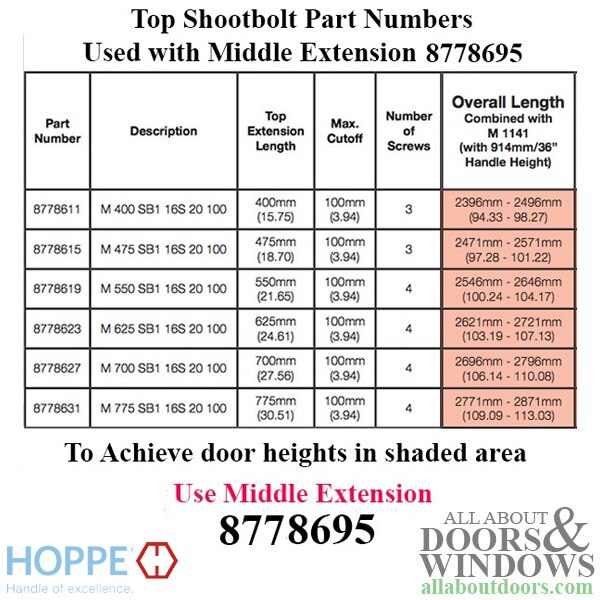

Extension # 8778695 is for doors ranging from 94.33 - 113.03  inches when matched with one of six top shootbolts. See Chart


Application: Middle Extension, used with top shoot bolt extension

Middle Extension Length: 44.92 inches (1141mm)

Maximum Cutoff: N/A, Does not get cut

Number of Screws: 6


Overall lock lengths when Shootbolt is combined with middle extensions and 36 inch handle height

8778691 - 27.20 inches; Door Heights    76.61 - 95.31    (1946mm - 2421mm)

8778695 - 44.92 inches; Door Heights    94.33 - 113.03  (2396mm - 2871mm)

8778699 - 62.64 inches; Door Heights  112.05 -130.75   (2846mm - 3321mm)


NOTE: other extensions length available for special heights not shown
