HOPPE 16mm Active Door Multipoint Lock Extensions
Combine Middle and Top Extension with Gear for complete lock. Use Cover Plate to cover seam between Middle and Top Extension Face-plate width: 16 mm (5/8" wide)
SPECIAL NOTE: Top Extensions for Active doors do not work the same as the Inactive top extensions ACTIVE top extensions are reversing gear, when pulling down on the serrated teeth drive bar the top shoot bolt Extends INACTIVE top extensions when pulling down on the serrated teeth drive bar the top shoot bolt Retracts.
Inactive shootbolts Push to Extend Bolt - Active shootbolts Pull to Extend bolt
15 Products
3622868

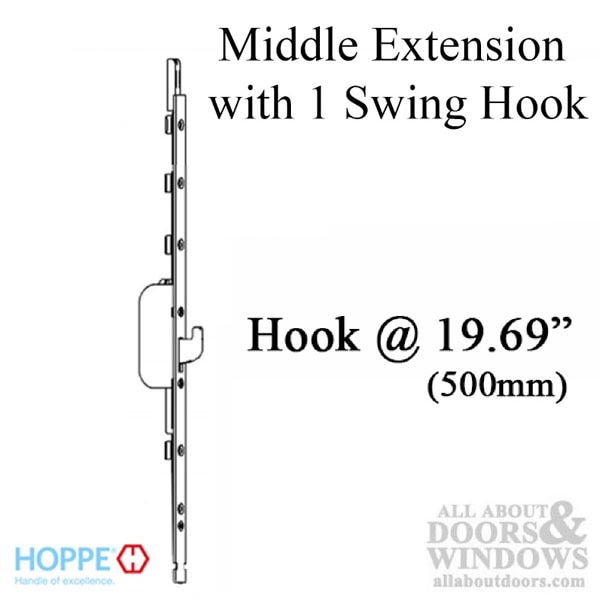

Hoppe Manual Swing Hook 16mm Middle Extension with Overall Length of 24.09 InchesMultipoint Swing Hook8778695
16mm Manual Middle Extension, Shootbolt 44.92" length16mm Middle Shootbolt Extension 44.92"
8778699
16mm Manual Middle Extension, Shootbolt 62.64" length16mm Middle Shootbolt Extension 62.64"
40005161
HLS9000 SWD Multipoint Operational Sticker, Left Hand, English, 3.5" x 11"Sticker Only40005155
HLS9000 SWD Multipoint Operational Sticker, Right Hand, English, 3.5" x 11"Sticker Only
