16mm Manual Middle Extension, Shootbolt 62.64" length

Hoppe HLS9000 Middle Extension. for Active Shootbolt with 5/8 inchfaceplate width

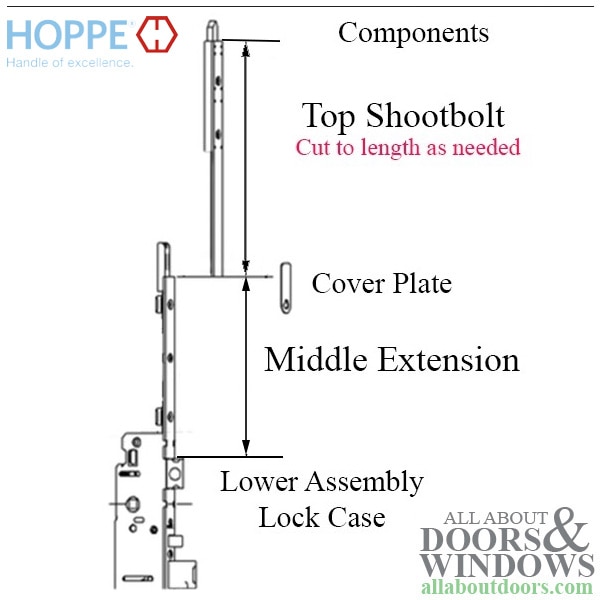

There are 3 basic Middle Extensions used in combination with 6 Top Shootbolt Extension to obtain desired door heights.

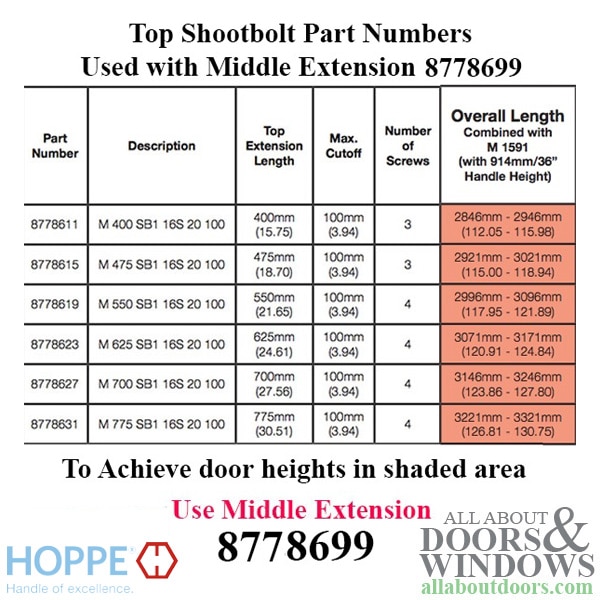

Extension # 8778699 is for doors ranging from112.05 -130.75inches when matched with one of six top shootbolts. See Chart

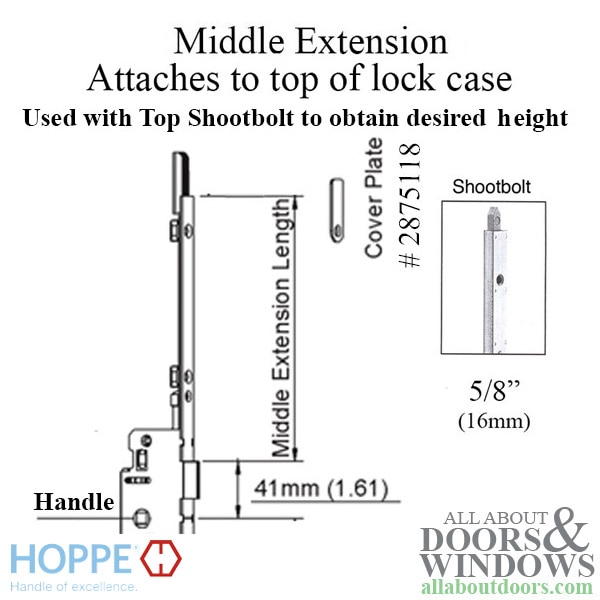

Application: Middle Extension, used with top shoot bolt extension

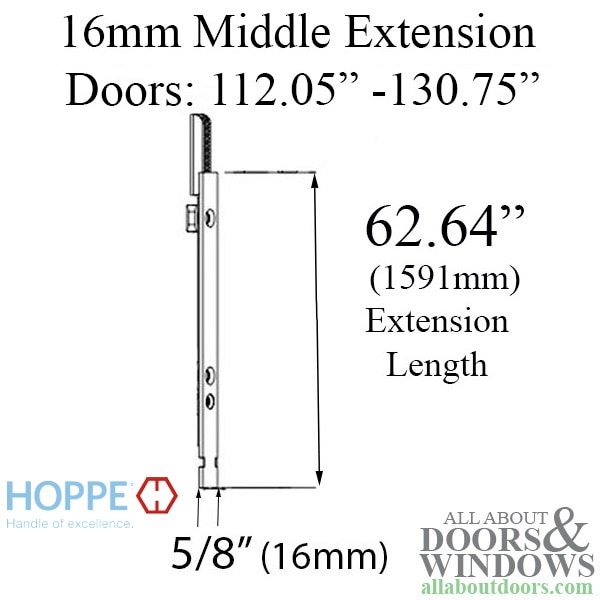

Middle Extension Length: 62.64 inches (1591mm)

Maximum Cutoff: N/A, Does not get cut

Number of Screws: 8

Overall lock lengths when Shootbolt is combined with middle extensions and 36 inch handle height

8778691 - 27.20 inches; Door Heights76.61 - 95.31(1946mm - 2421mm)

8778695 - 44.92 inches; Door Heights94.33 - 113.03(2396mm - 2871mm)

8778699 - 62.64 inches; Door Heights112.05 -130.75 (2846mm - 3321mm)

NOTE: other extensions length available for special heights not shown
