Replacement Kit for Winkhaus 5-Point Roller/Shootbolt in Weathershield Doors
5-Point Multipoint Lock with Rollers and Shootbolts
Replaces WINKHAUS 5-point lock (part 499117599 This was used:
in Weathershield hinged patio doors made prior to March 2002
in ProShield hinged patio doors made prior to August 2004
in Visions hinged patio doors made prior to February 2004

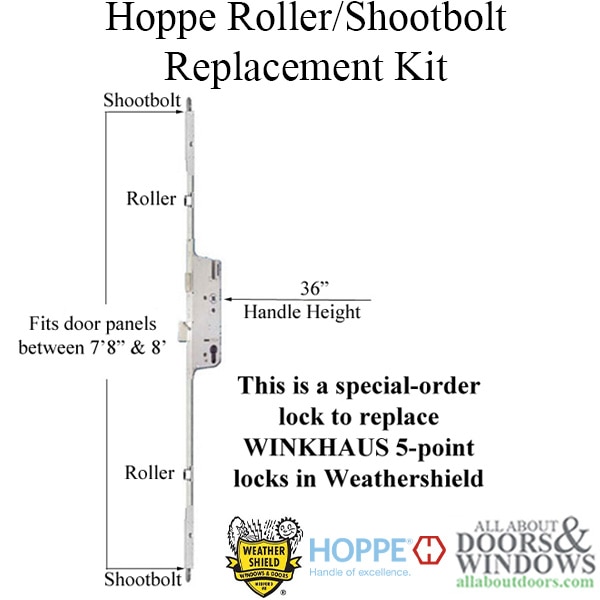

This is a 4-part kit consisting of:
Bottom gear and lockbox,
Middle extension
Top shootbolt extension (top shootbolt extension can be trimmed to minimum door panel height)
Screws

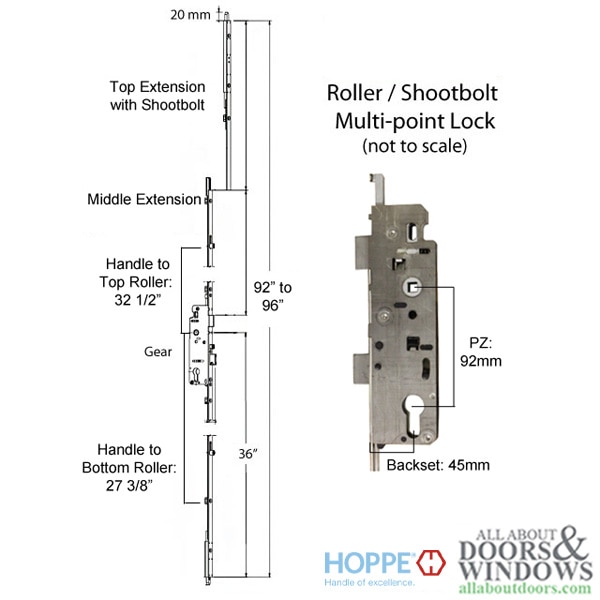

Replacement Lock Dimensions:
Bottom roller located 27-3/8 inches from handle
Top roller located 32-1/2 inches from handle
Backset: 45mm
Handle height: 36 in.
Fits door panels between 92 and 96 inches tall
PZ (distance from center of cylinder to center of handle): 92mm
Faceplate: 16mm wide

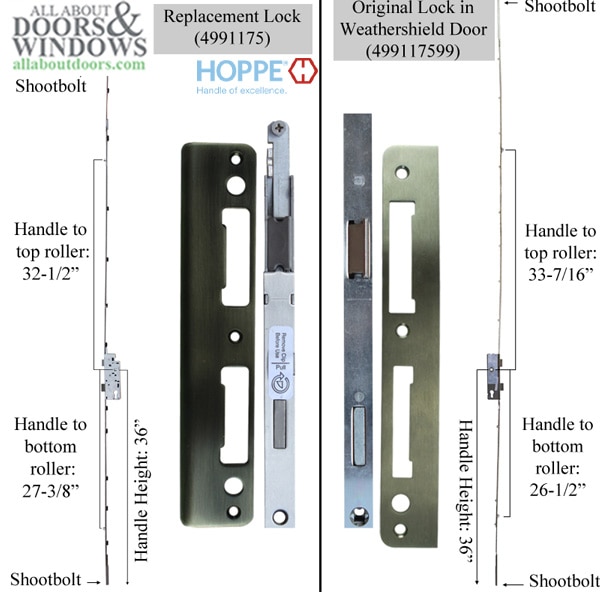

*NOTE: If you are replacing a WINKHAUS 5-point lock in a Weathershield door and the PZ, backset, handle height and/or faceplate width do not match this replacement, please contact us using the contact us form via the button at the top of the page or by calling us. The bottom and top roller locations will most likely differ from your current lock measurements and that is okay.
Existing stock is limited; these are special order and may take longer to ship.
