Winkhaus 5-Point Roller/Shootbolt Multipoint Lock for Weathershield pre-3/2002

Part Number: 499117599
See Description

This product has been discontinued and is no longer available

WINKHAUS 5-Point Multipoint Lock with Rollers and Shootbolts

Used in:

Weathershield hinged patio doors made prior to March 2002
ProShield hinged patio doors made prior to August 2004
Visions hinged patio doors made prior to February 2004

Features:

2 rollers and top and bottom shootbolts.
Fit door panels between 92 and 96 inches tall

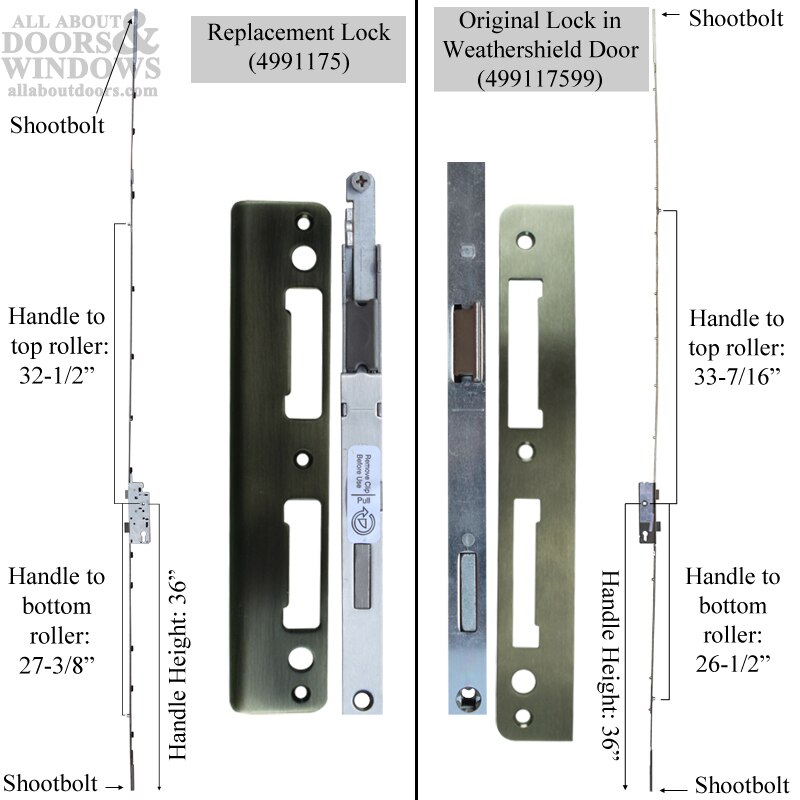

Bottom roller located 26-1/2 inches down from handle
Top roller located 33-7/16 inches up from handle
Backset: 1-3/4" (45mm)
Handle to Cylinder PZ: 3-5/8 inch ( 92mm)

This lock is discontinued and no longer available.

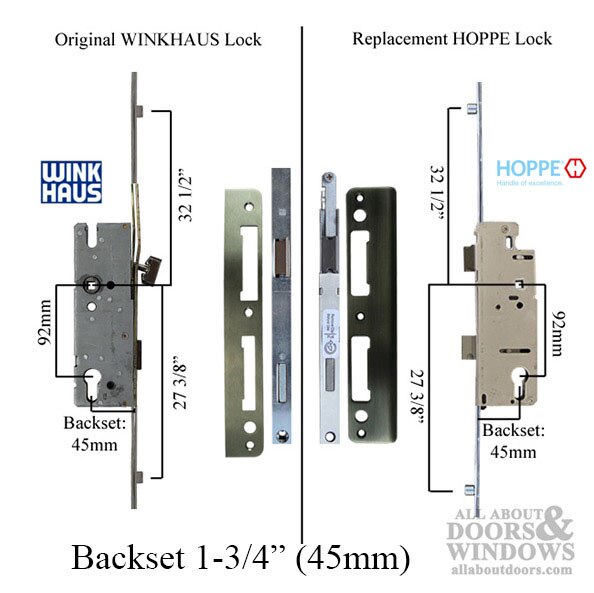

Replace with HOPPE 3-point or 5-Point Lock: #4991175-KIT

Additional Resources:
Replacing this Lock in a Weather Shield Door
Q&A on Replacing Roller Locks in Weather Shield Doors With Non-Roller Locks
How to Re-Hand a Winkhaus Multipoint Lock
