Heavy Duty 4 Bar Hinges
The hinges in this category have a Track Width of 7/8" Please Check all measurements before ordering.
This Section contains Amesbury Truth, Anderberg and Caldwell 4-Bar hinges
4-bar hinges are certified to AAMA 904.1
Designed to be used primarily on vents with a lip on the outside edge
Adaptable to both casement and projected window applications
Standard Duty 4-bar hinges are for lighter windows no heavier than 40 lbs.
Heavy Duty 4-bar hinges are for commercial windows up to 200 lbs.
201/301 Series hinges are manufactured with a black acetal or brass shoe
8 Products
301HD-S
Anderberg 301SS Heavy Duty 4 Bar Window Hinge with Stop Stainless SteelTrack Width: 7/8" (0.875)
301HD-S-10-125
4 Bar Hinge 7/8 x 10 Truth 34.24 Heavy Duty Anderberg 301 .125 Bottom Shim Stainless SteelHD 7/8 x 10 with .125 shim

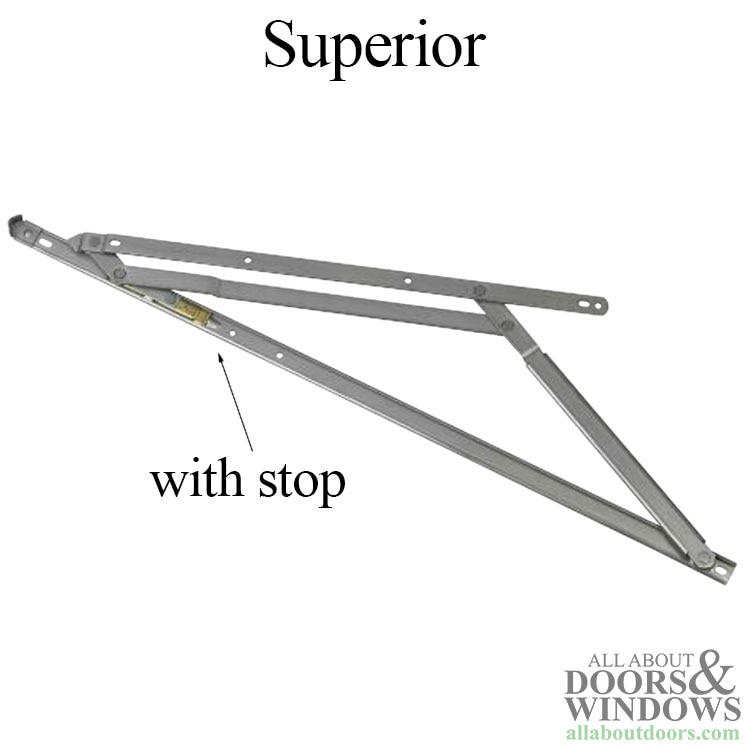

301SP-S-28
Anderberg 301SS Superior 4 Bar Awning Window Hinge with Stop Stainless Steel 28" TrackTrack Width: 7/8" (0.875)
333HDE-S-16
Anderberg 333SS 4 Bar Egress Window Hinge with Stop Stainless Steel 16 Inch TrackTrack Width: 7/8" (0.875)

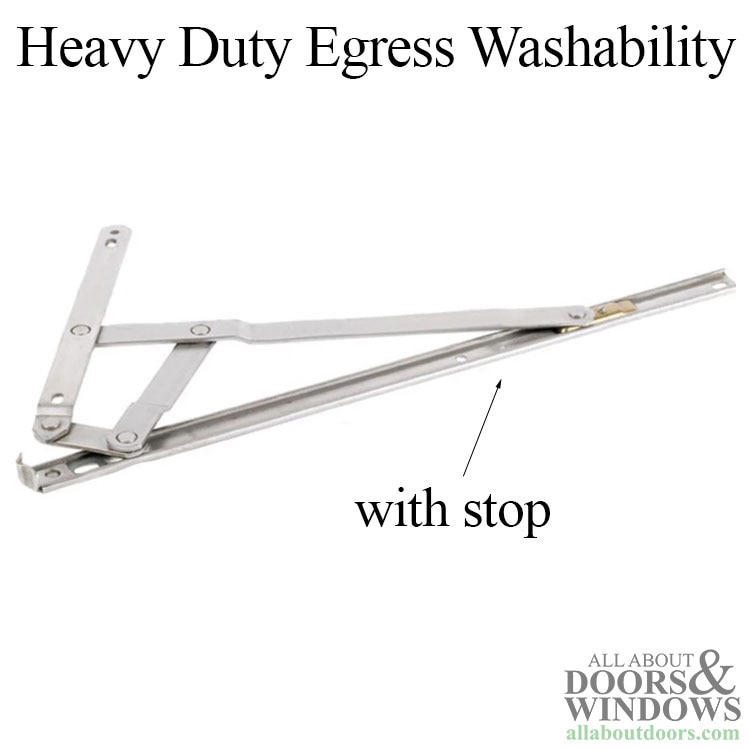

334HDE-S-W-16
Anderberg 334SS 4 Bar Heavy Duty Casement Window Egress Hinge Washability with Stop Stainless Steel 16"Track Width: 7/8" (0.875)

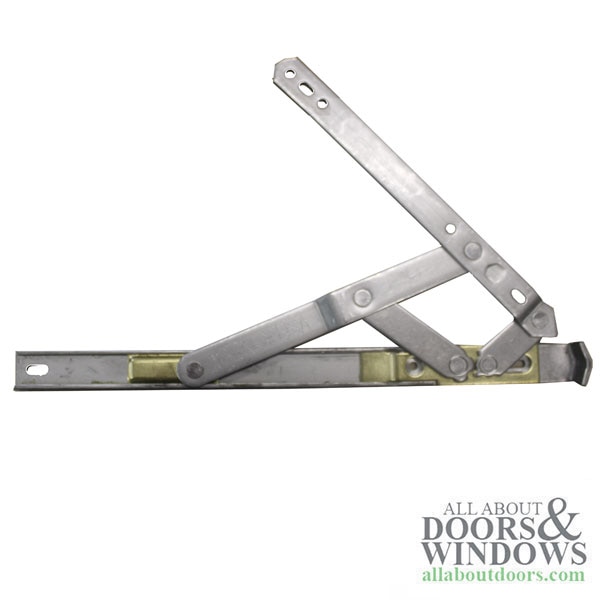

5012LR
4 Bar Hinge 12" Caldwell Egress Loose Rivet Commercial Window Stainless Steel7/8 x 12" Commercial

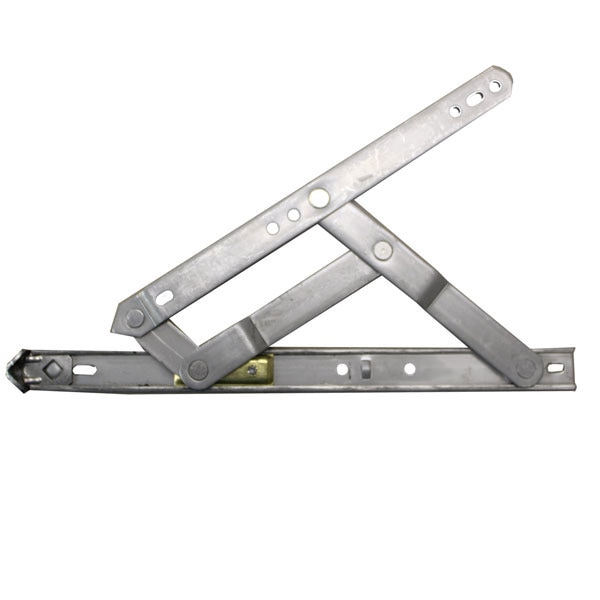

4010-11.5
4-Bar Hinge 7/8 x 11-1/2 Custom Caldwell INLINE Commercial Projection WindowCustom 7/8 x 11-1/2 Commercial
