Anderberg 301SS Heavy Duty 4 Bar Window Hinge with Stop Stainless Steel

Anderberg 301SS Heavy Duty Commercial 4 Bar Casement / Awning Window Hinge

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)

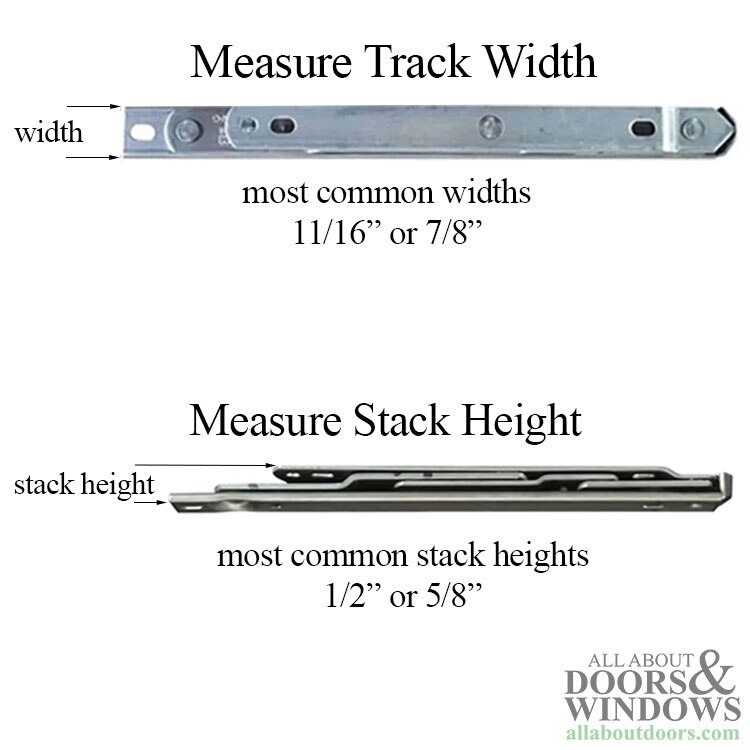

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)
Stop: Yes (stops the window from opening too far to insure proper weight support)
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.

NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.

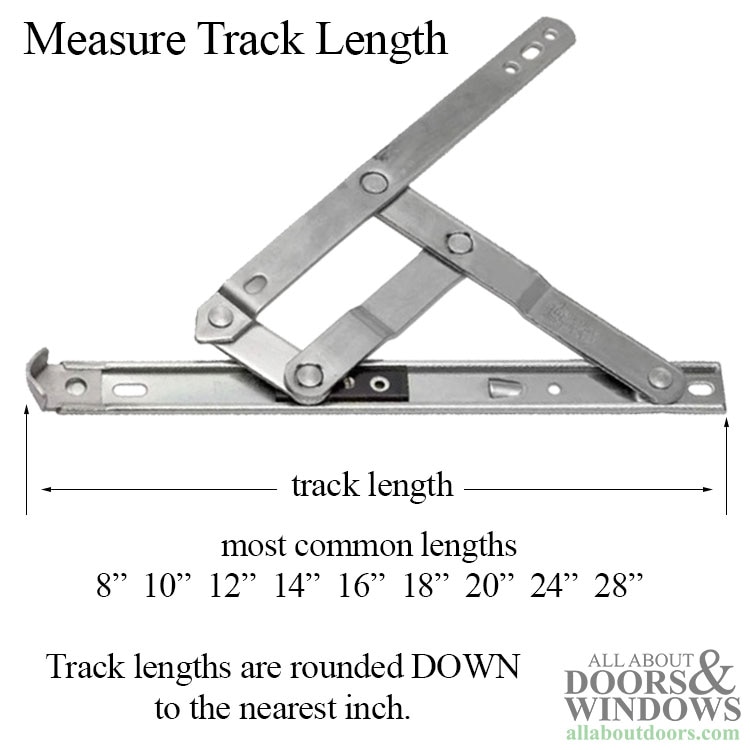

Available Track Lengths: (rounded DOWN nearest to one of the following lengths)
10"
12"
14"
16"
18"
20"
24"
28"

IMPORTANT NOTE (new construction projects)
Use the following chart to account for Window Weight and Width
10" Track Length - Supports up to 58 lbs at a width of 20"
12" Track Length - Supports up to 73 lbs at a width of 25"
14" Track Length - Supports up to 85 lbs at a width of 29"
16" Track Length - Supports up to 99 lbs at a width of 40"
18" Track Length - Supports up to 108 lbs at a width of 40"
20" Track Length - Supports up to 117 lbs at a width of 50"
24" Track Length - Supports up to 129 lbs at a width of 60"
28" Track Length - Supports up to 175 lbs at a width of 80"
