Anderberg 301SS Superior 4 Bar Awning Window Hinge with Stop Stainless Steel 28" Track
Anderberg 301SS Superior 4 Bar Awning Window Hinge

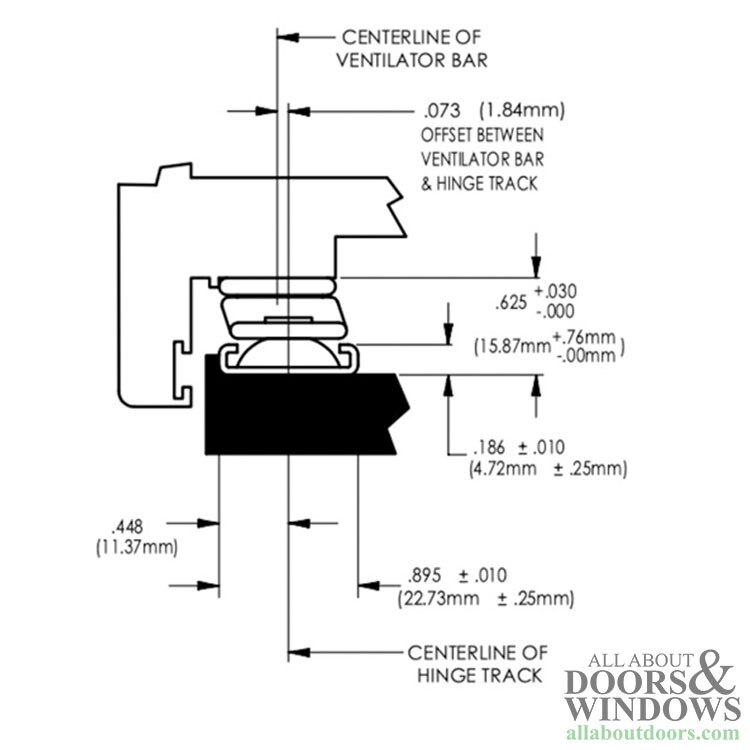

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)

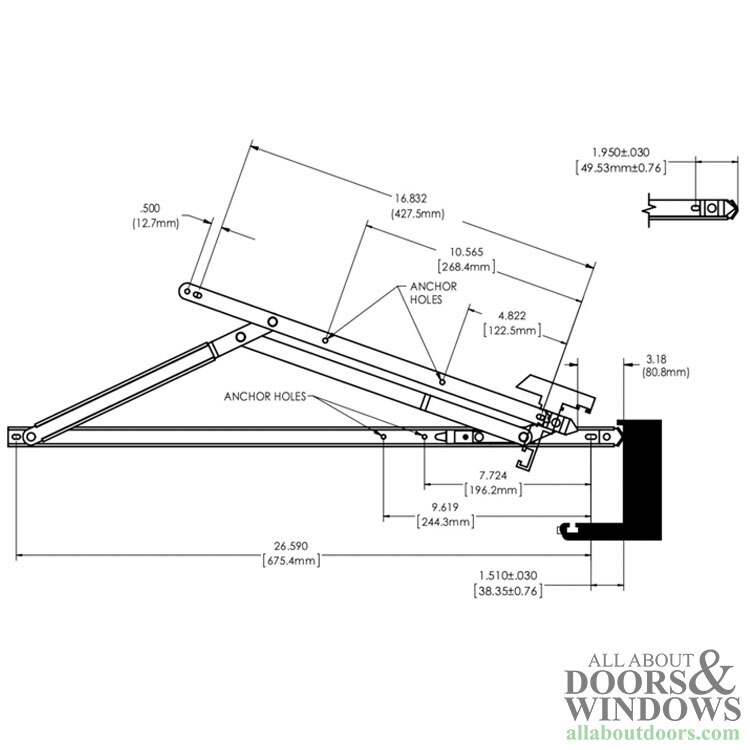

See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)
Stop: Yes (stops the window from opening too far to insure proper weight support)
Handing: Left or Right Hand (reversible)
Maximum Weight Load: 300 Pounds
Sash Height Range: 64 to 86 inches
Friction Shoe: Yes, Brass
Material: Stainless Steel
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.
This Superior Hinge has been engineered to work on awning sashes ranging from 64"- 86" in height, and will provide a choice of 20°, 18°, or 14° of opening.
Hinge life can be prolonged by periodically adding a drop of light weight oil at each riveted joint.
NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.
Truth has changed their part numbers. (Old) - New
(34.87.00.200.1) - 2121568
