Anderberg 333SS 4 Bar Egress Window Hinge with Stop Stainless Steel 16 Inch Track

Anderberg 333SS Heavy Duty Egress 4 Bar Casement Window Hinge

NOTE: This hinge is designed for casement windows only

IMPORTANT MEASUREMENTS (when replacing your old hinge)
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)
See additional images for how to measure these features of your hinge.
If your measurements do not match these then you may need a different hinge. (see related items below)

Hinge Type: Casement Egress
Track Width: 7/8" (0.875)
Track Stack Height: 5/8" (0.625)
Call Size: 16"
Track Length: 16-3/4" overall (16.75)
Functioning Track Length 16-1/2" (16.5)
Stop: NO (designed for casement windows only)
Handing: Left or Right Hand (reversible)
Shim: None (not included) If you need a shim for your replacement please contact our office for ordering information.

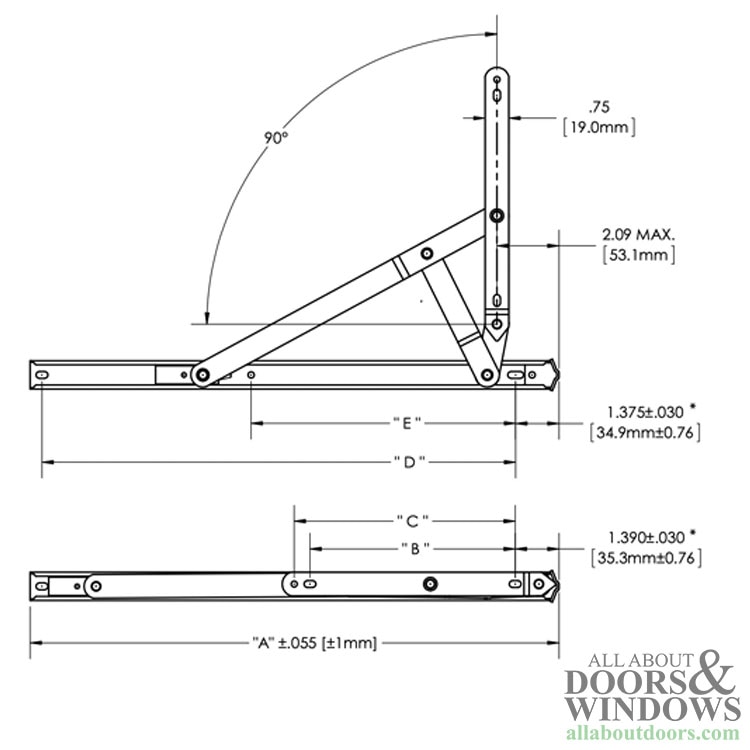

Dimensions (see additional images)
B - 6.50 inches
C- 7.00 inches
D - 15.01 inches
E - 8.39 inches

IMPORTANT NOTE (new construction projects)
Use the following chart to account for Window Weight and Width
16.5" Track Length - Supports up to 175 lbs at a width of 32"

NOTE: These hinges are priced and sold each.
When replacing hinges it is best practice to replace them in pairs.
