4 Bar Hinge 12" Caldwell Egress Loose Rivet Commercial Window Stainless Steel
Caldwell Egress series non-handed commercial window inline Multi-Bar hinge, supports up to 160 pounds.

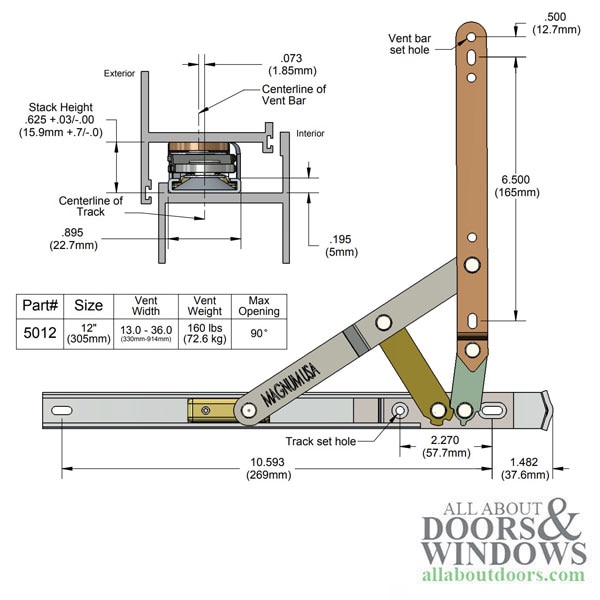

Technical Specifications:
Window Type: Casement
Adjustable Tension: No
Mounting Type: Inline
Handed: No, Non Handed design swings left or right
Hinge Stack Height: 5/8 inch (16mm) 0.625 ( Shim can be used to increase hinge stack height)
Sash Maximum Weight: 160 Lbs
Sash Minimum Width 13 inch
Sash Maximum Width: 36 inch
Hinge Width: 7/8 inch
Hinge Length: 12 inch
ADACapability: Yes
AW Testing: Yes
NYC/DOH: Application Dependent
Hinge Friction Option: Loose Rivet
Material: Austenitic Stainless Steel, Brass Shoe
Screw Size: #10 (M5)
Certifications: AAMA 904.09
Box Quantity: 50 pcs
Country of Origin: Made in the USA
