4-Bar Hinge 7/8 x 11-1/2 Custom Caldwell INLINE Commercial Projection Window

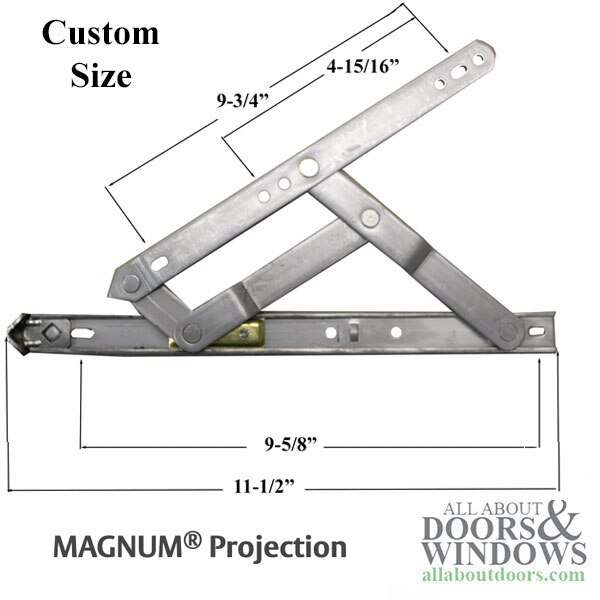

CUSTOM 4-Bar Hinge 11-1/2" inline Caldwell commercial projection window ( made for 1 specific customer)
Caldwell non-handed commercial window inline Multi-Bar hinge, supports up to 160 pounds.

Technical Specifications:
Window Type: Projection
Adjustable Tension: Yes
Mounting Type: Inline
Stop: Yes
Handed: No, Non Handed design swings left or right
Hinge Stack Height: 5/8 inch (16mm) 0.625 ( Shim can be used to increase hinge stack height)
Hinge Width: 7/8 inch
Hinge Length: 11-1/2 inch
Material: Austenitic Stainless Steel, Brass Shoe
Screw Size: #10 (M5)
Box Quantity: 50 pcs
Country of Origin: Made in the USA

Sold Each
