Non-Handed Mortise Mount Aluminum Handle Set for Sliding Glass Door 3-15/16" Screw Hole Center Hook Style Latch

Part Number: 14319
Price:$29.21 to $41.72
NOTE: This Handleset will not work with 15143 Mortise lock with Vertical Slot used on Aluminum doors, it works with the 15142 with 45 degree slot.

If you have an aluminum door, you will need to change the mortise lock also.

Non-handed mortise mount aluminum handle set typically used with wood or vinyl sliding glass doors.
This handle set is a standard reversible mortise mount for left or right handed mortise locking doors.
It is constructed of extruded aluminum with wood grain strips on inside pull and diecast outside pull.
Handle set is designed to be used with any of the following latching units: 15029, 15094, 15062, 15027, that can be found in related parts below.

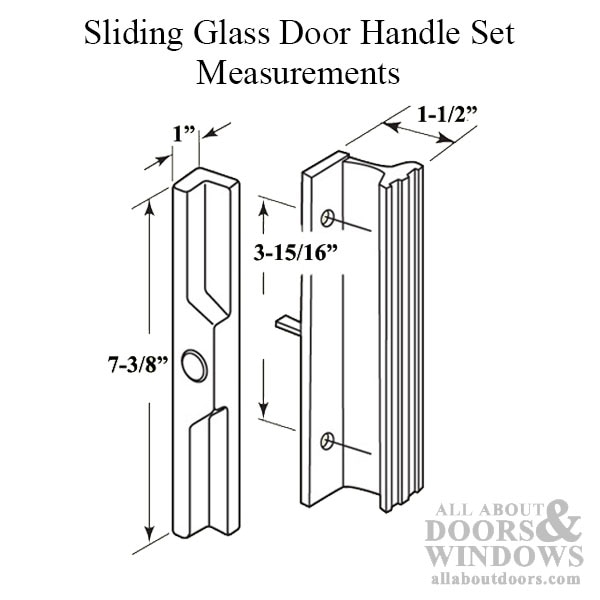

Handle Length: 7-3/8 Inch
Inside Handle Width: 1-1/2 Inch
Outside Handle Width: 1 Inch
Hole Center: 3-15/16 Inch
Handle Type: Mortise
Latch Style: Hook
Material: Aluminum
Finish: Painted
Handing: Non-Handed

Available Colors:
Black

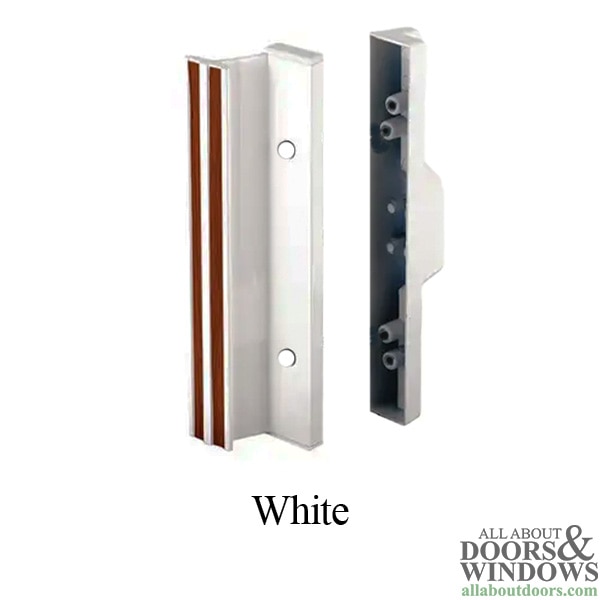

White
Almond

Contents:1 Inside Handle, 1 Outside Handle, Fasteners

Priced and sold as set.

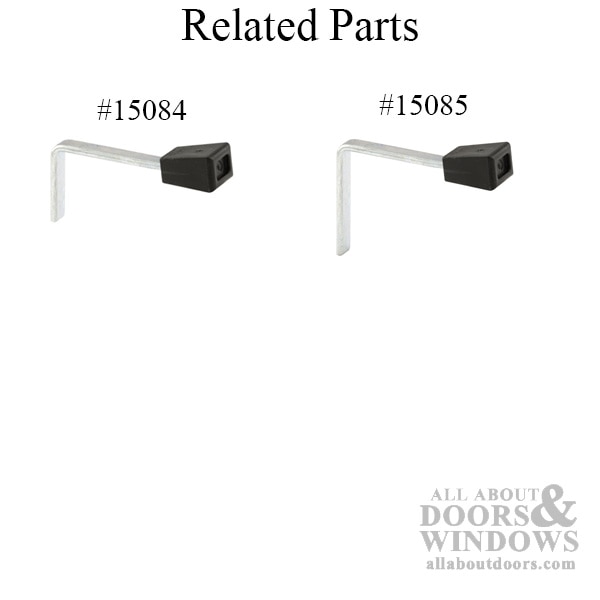

Related Parts:
15084- Latch Lever for Sliding Patio Door with 3/4 inch Tailpiece
15085- Steel Lever Latch with 1-1/4 Inch Tail for Sliding Glass Door
This product is similar to or the same as the following part numbers in these brands:
Prime-Line Products: C 1112, C 1058, C 1111
