Kit replaces inactive FUHR lock found in french Caradco doors.NOTE:

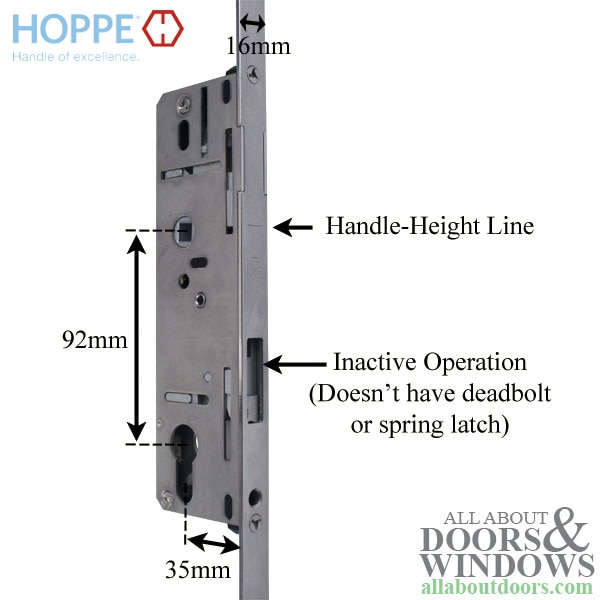

This is kit for a 93 inch inactive Caradco door.Handle-height
: Adjustable (to replace Caradco, lock must be trimmed so handle height is 35-1/2 inches)Backset
: 35mmFull Lock Length
: Adjustable (to replace Caradco 93 inch lock, must trim)PZ
: 92mmKit Includes:Gear boxTop shootbolt tip
(longer shootbolt tip in kit--make sure you install correct shoot on correct end)
Bottom shootbolt tip (shorter shootbolt tip)Replacement Information:
(Full guide available here)

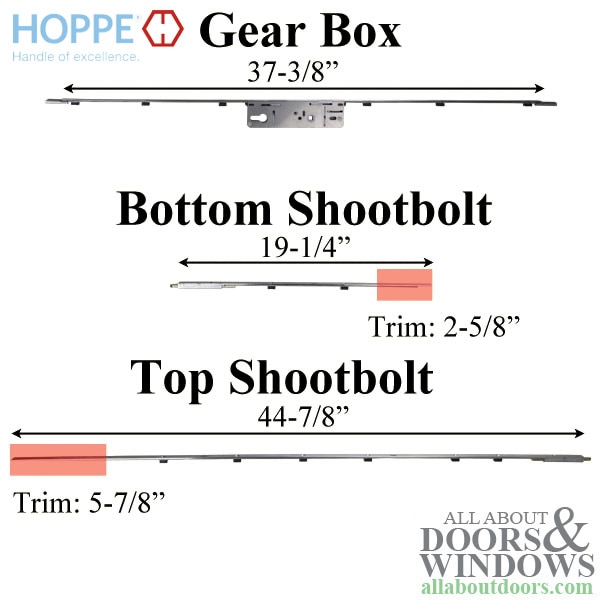

1) Trim approximately 2-5/8 inches off bottom shootbolt so when connected to gear box, handle sits at 35-1/2 inches up the door.
2) Trim approximately 5-4/8 inches off top shootbolt so full lock fits in 93 inch door.
*CAUTION: Lock will be hot after trimming; do not use electric saw--lock will discolor and can warp.Related Caradco Replacement Locks:
Active 77" Lock: 4990236
Active 93" Lock: 4990237
Inactive 77" Lock: 4990238
