HOPPE Replacement for FUHR / Caradco 5-Point Multipoint Lock - 77 in. Active
Kit replaces 5-point FUHR lock found in Caradco doors with rollers and shootbolts.
Replacement lock has shootbolts but no rollers.
NOTE: This is a kit for an active 77 inch Caradco door.
Caradco also featured a similar lock in a 93 inch door. (93" replacement 4990237)
Handle-height: Adjustable from 33-37 inches (to replace Caradco, lock must be trimmed so handle height is 35-1/2 inches)
Backset: 35mm
Full Lock Length: Adjustable (to replace Caradco 77 inch lock, must trim)
PZ: 92mm

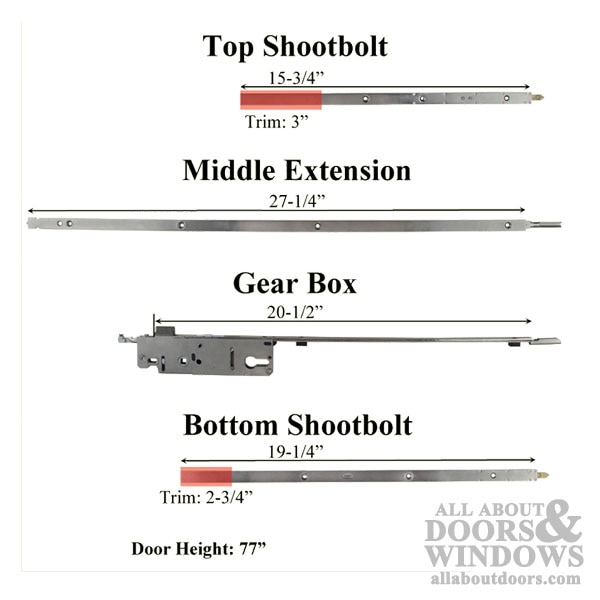

Kit Includes:
Gear box
Top shootbolt tip (shorter shootbolt tip in kit--make sure you install correct shoot on correct end)
Bottom shootbolt tip (longer shootbolt tip)
Middle Extension
Replacement Information: (Full guide available here)
1) Trim approximately 2-1/4 inches off bottom shootbolt so when connected to gear box, handle sits at 35-1/2 inches up the door.
2) Trim approximately 3 inches off top shootbolt so full lock fits in 77 inch door.
*CAUTION: Lock will be hot after trimming; do not use electric saw--lock will discolor and can warp.
Related Caradco Replacement Locks:
Active 93" Lock: 4990237
Inactive 77" Lock: 4990238
