Fuhr 77-1/2 inch Automatic Roller Multipoint Lock - See Replacement Options

Part Number: 499010499
Price: See Description

This product has been discontinued and is no longer available

DISCONTINUED ITEM - REPLACEMENT AVAILABLE

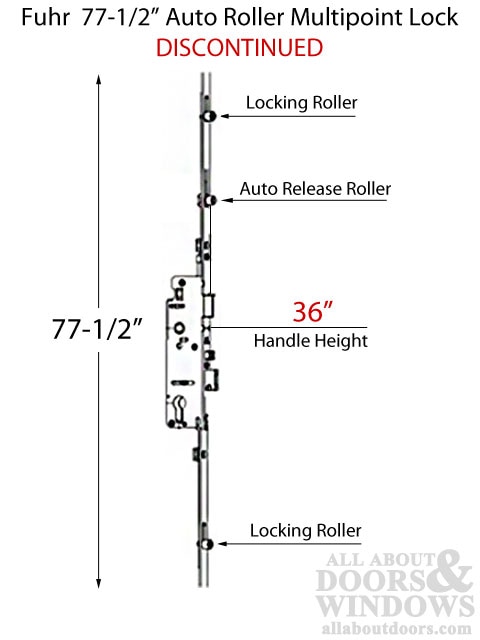

Fuhr Automatic 3 Roller Version - 3 actual rollers on Lock; 1 auto release, 2 locking

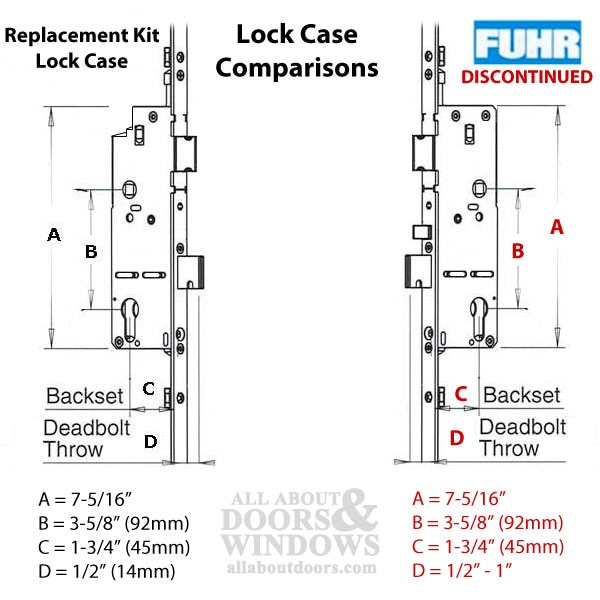

FUHR Lock Dimensions:
Faceplate Width: 5/8 inch ( 16mm)
Faceplate Color: Yellow dichromate ( gold)
Overall Faceplate Length: about 77 inches
Handle Height: 36 inch (914mm)
Backset: 1-3/4 (45mm)
Auto Release Roller Position: 7-1/4 Inch (184mm)
Bottom Roller Locked Position: 29-1/2 inches (750mm)
Top Roller Locked Position: 36 inches

2 Replacement Options:
1. 4990285: HOPPE with roller on bottom and shootbolt on top: The easiest replacement for the discontinued Fuhr lock is a 3 piece system with a bottom roller in same position as the Fuhr lock and using a shootbolt for top extension. The top extension will fit doors from 76.61 - 80.55 inches tall and will need to be cut to length. Kit includes bottom gear, middle extension, top shootbolt, socket strike and stainless steel installation screws.

2. 4990203: HOPPE with 2 rollers: This replacement is more complex; involves moving strikes on door jamb; lock will fit doors from 75.79 to 85.63 inches tall and will need to be cut to length. Kit includes bottom gear, top extension and stainless steel installation screws.

For instructions on how to do replacement with option number 1, read article: Replacing FUHR with HOPPE Roller/Shootbolt
For instructions on how to do replacement with option number 2, read article:Replacing FUHR with HOPPE Roller Additional Article:How to Change the Handing on a Fuhr Lock (Change direction of slope of latch)
