Replacement Kit for Fuhr 77-1/2 inch Auto Roller Multipoint Lock
This is a complete multipoint lock roller version replacement kit.
Used to replace the discontinued FUHR automatic roller multipoint lock (part #499010499)
It features two locking Rollers and is manually operated.
This Replacement Kit includes:
Lock Body / Gear Box
Top Extension
Stainless Steel Screws
Replacement Kit Measurements:

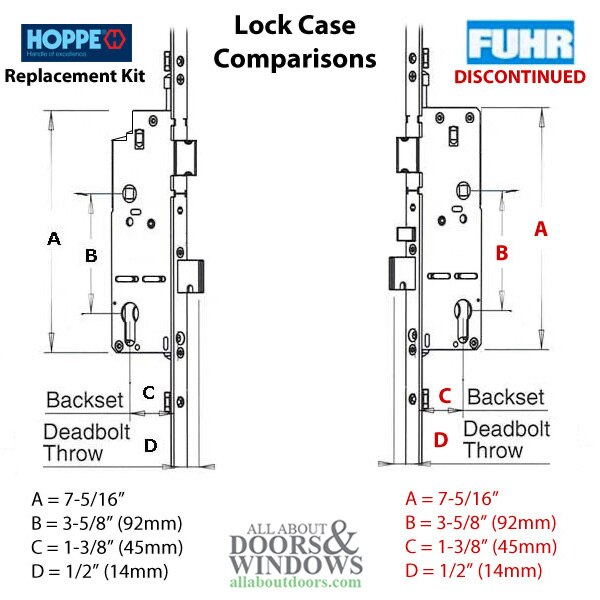

Overall Length: 75.79 inches to 85.63 inches
Faceplate Width: 5/8 inch (16mm)
Backset: 1-3/4 inches (45mm)
Deadbolt Throw: 1/2 inch (14mm)
Handle Height: 36 inches
Handle Spacing (PZ): 3-5/8 inches (92mm)

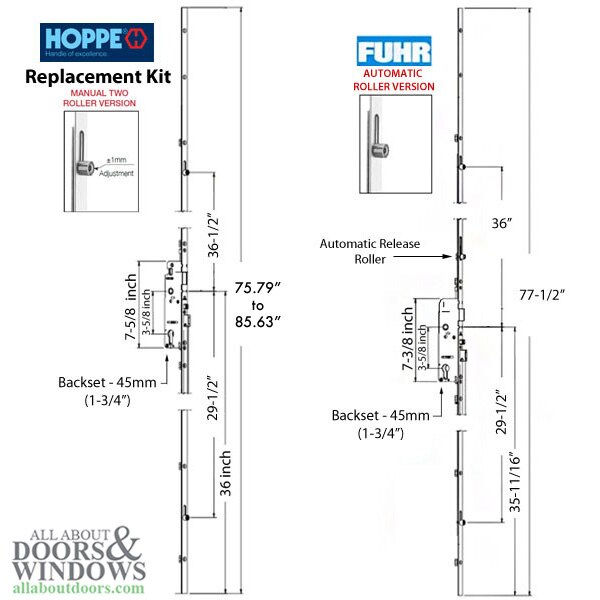

Bottom Roller Position: 29-1/2 inches down from center of handle cylinder
Top Roller Position: 36-1/2 inches up from center of handle cylinder
The preexisting Strike Plates should work with the Replacement Kit but may need to be adjusted on the door jamb.
Lock will need to be trimmed at top to height of door
Replacement Instructions:Replacing FUHR Roller Multipoint Lock with HOPPE Roller Multipoint Lock
Additional Resources:
How to change handing on HOPPE multipoint lock: Written Article | Video
Article: How to change direction of mishandling device on HOPPE lock
Video: How to Connect a Top Extension to HOPPE Lockbox
To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms
If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
