Essve 81" Multipoint Lock, 20mm 60/92 Active Single Door - American Version

Part Number: 4990614-KIT
Price: $225.00
81" Multipoint Lock Replacement Kit for ESSVE - 8'0 Doors

Original ESSVE Lock info:æ
Overall Length: 81" with radius ends
Faceplate Width: 25/32 (20mm)
Handle PZ: 3-5/8 (92mm)
Lock Cylinder: American Style
Backset: 2-3/16" (55mm) (replacement 60mm)
Bottom Hook Position: 26-3/4" (replacement 26")
Top Hook Position: 46-3/8" (replacement 45-3/4")

8'0 Door Replacement Kit Components
  • 20mm 60/92 Lower Gear with Hook @ 26"
  • 20mm Upper Extension with Hook @ 45-3/4"
  • Stainless Steel Installation Screws

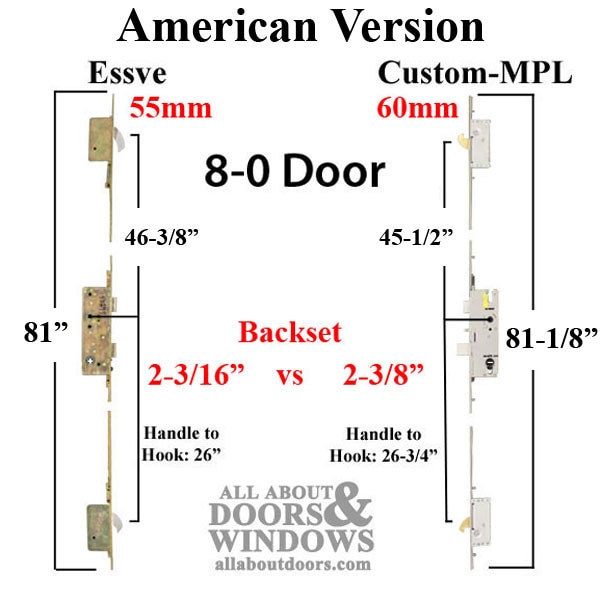

ESSVE Replacement Lock Info (Replacement Article):
  • The replacement kit has square vs radius ends; it is crop-able to fit your door panel height requirements 81-1/8".æHow to trim lock article.
  • The Gear box will move 3/16" as the original lock is 55mm and the replacement will be 60mm. New trim will cover the holes.
  • The hook lock boxes will fit back into the mortised groove in the door panel. However, the hooks are off a little and may require slightly enlarging the strike plate hole.

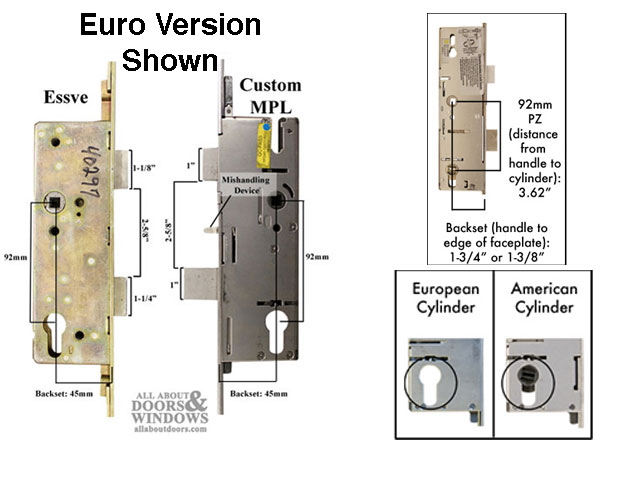

  • ATRIUM DOORS - The original handle set trim for Atrium (Euro Cylinder Version) will not work; will require new trim.æSee additional images.
  • MARVIN / PEASE DOORS - The original handle set trim for Marvin, Pease and others with American Version lock have installation screw hole spacing of 6-3/8. This trim will work with minor modifications to the lock body cylinder hole where the bottom screw goes though (a little tight, needs to be slightly enlarged with rasp).

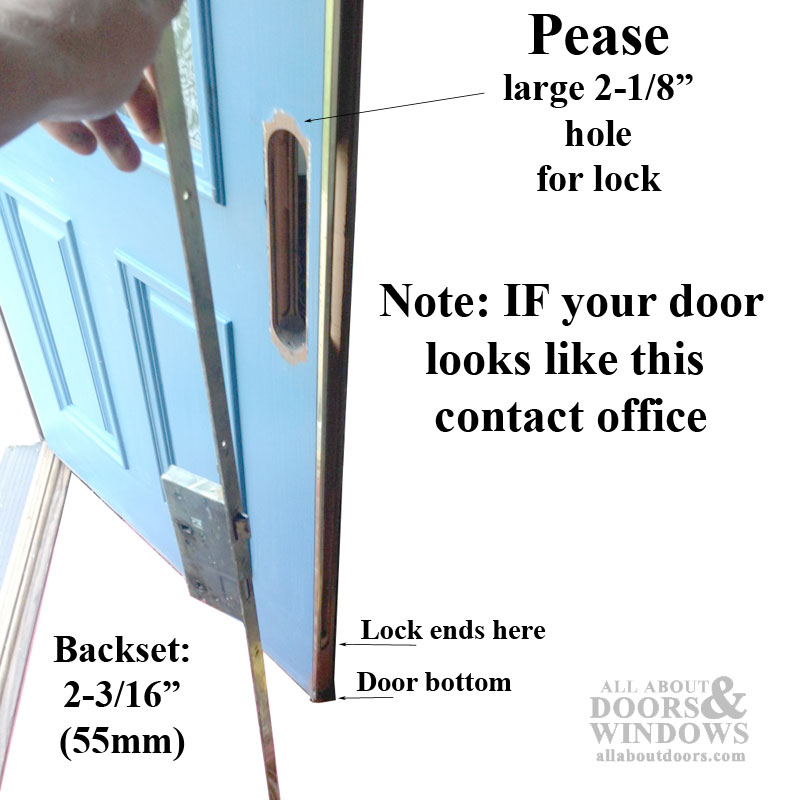

  • Some PEASE doors had different Bore Hole spacing than others; the handle set trim was 2-3/8" wide, contact us if this is the case.

New Handle Set Trim Options:æIf replacing we recommend the Expressions 2 x 12 Series Hardware

395009 - Modern, Square Top, Keyed
395007 - Traditional, Arch top, Keyed
Additional Resources

Multipoint Lock Worksheet

ESSVE Lock Replacement Article (PDF)

How To Trim / Crop Lock

Reverse Lock Handing: Change the direction of the spring latch by first extending the deadbolt (see lock operation below), pull out the spring latch and rotate accordingly.

Lock Operation: This lock has an Anti-Slam / Mishandling latch that needs to be pushed in to operate lock.
    • Lock: Lift the handle to extend deadbolt and other locking positions and turn thumb-turn to secure in locked position.
    • Unlock: Turn thumb-turn or key to unlocked position and push down on lever.
