Expressions 12 Inch Arch Active Keyed Hardware - Choose Color
Ashland Expressions 12 Inch Non-Handed Active Keyed Handle Hardware for Hinged Door.
This Handle Set is an excellent high quality replacement for Marvin Active Keyed Handle Hardware.
While the original Marvin Hardware is smaller than the Replacement, the installation holes are the same.
This Handle Set is used by Ashland, Milgard, Marvin, Jeldwen, Caradco, Cantera, Delta, Pella, Pozzi, PGT and others.

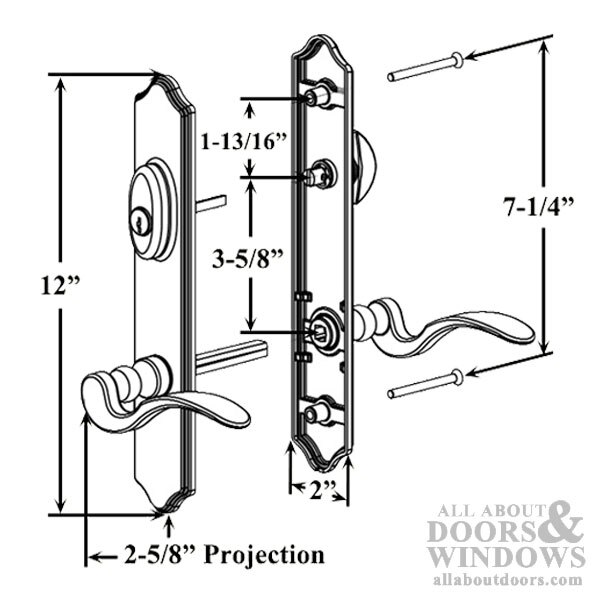

Plate Height: 12 Inch
Plate Width: 2 Inch
Hole Center: 7-1/4 Inch
Function: Active (Keyed with Thumbturn)
Door Configuration: #4 Cylinder Above Handle; Exterior Keyed, Interior Thumbturn
Door Thickness: 1-3/4 Inch - 2-1/4 Inch
Handing: Non-Handed fits Left and Right Handed Doors
Cylinder: American 5 Pin with Flat Tail Piece
Tail Piece Length: 1-7/8 inch with Break off at 1-3/8 for 1-3/4 thick door
Keyway: Schlage Rekeyable with 2 Keys
Plate Style: Arch Top
Handle Style: Transitional Curved Levers
Stocked Finishes:
PVD Lifetime Satin Nickel (US15-PVD)
Oil Rubbed Bronze (US10B)
PVD Lifetime Polished Brass (US3-PVD)
Special Order Finishes: (may require 2-4 weeks )
Polished Chrome
Black Powder Paint

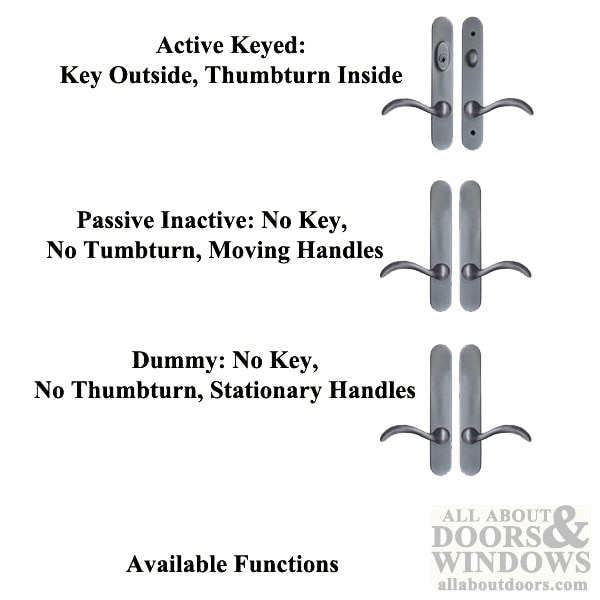

Available Hardware Trim Functions:
Active Keyed - (Key Outside, Thumbturn Inside)
Dummy Pair - (Fixed Version, Handles do not move; uses a Fixing Plate on passive handles)
(This style is NOT available as Non-Keyed Exterior with Thumbturn Interior - for this function see 395012, 395018 or 395005)

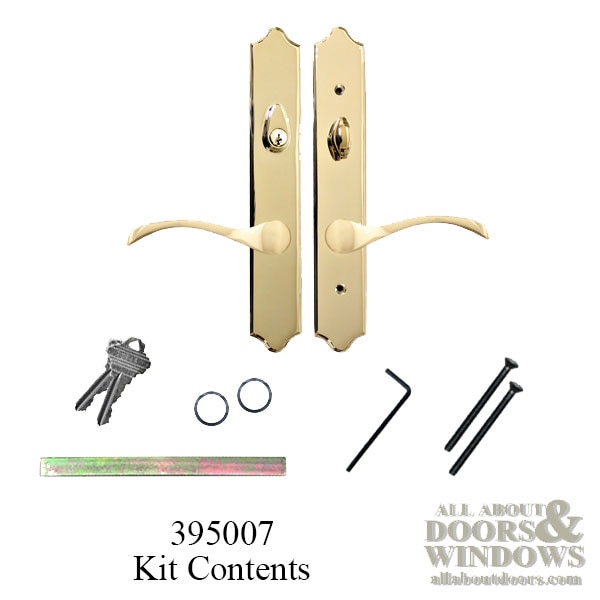

Contents: 1 Inside Plate, 1 Outside Plate, 2 Handles, 1 Spindle, 1 Hex Wrench, 2 Keys, Installation Screws
Priced and Sold as Set.
