16mm Manual Gear, 45/92, Roller @ 29.53", 1/2" Deadbolt Throw

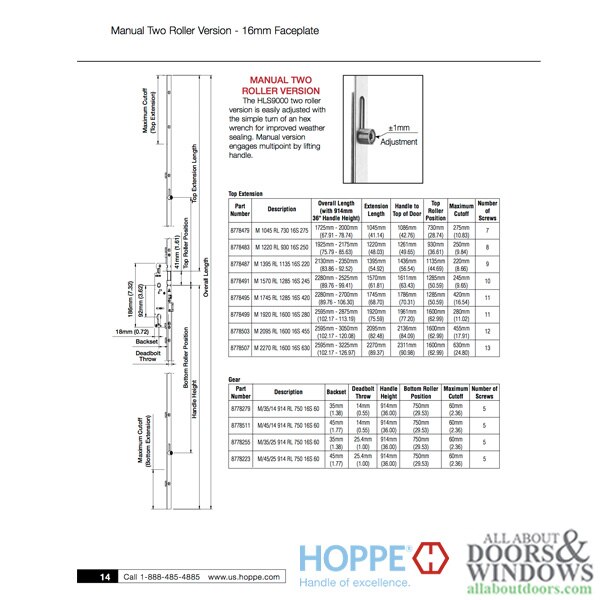

Hoppe HLS9000 Manual Two Roller Version, Bottom Gear for Active Door

Faceplate Width: 5/8" (16mm),

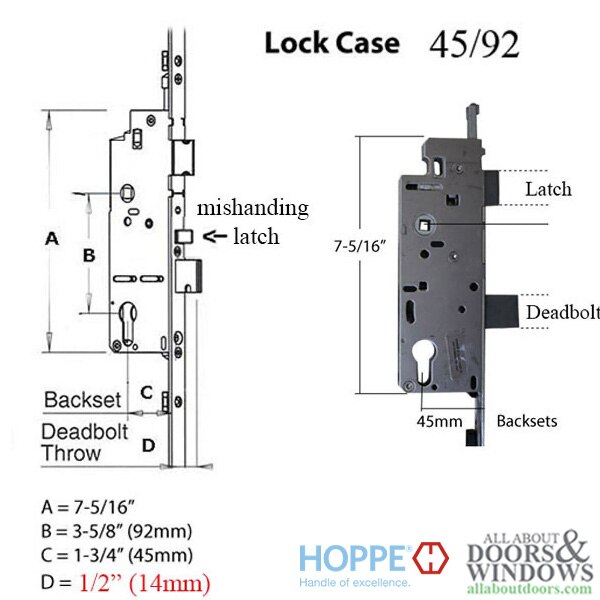

Backset: 1.77" (45mm),
Deadbolt Throw: .55" (14mm),

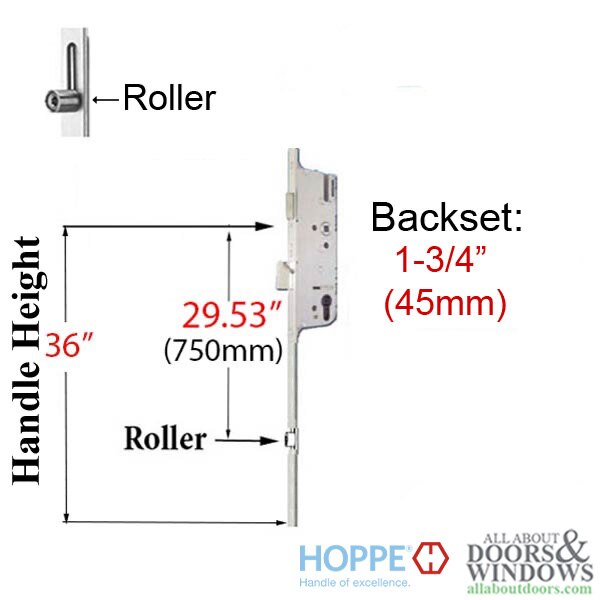

Handle Height: 36" (914mm),

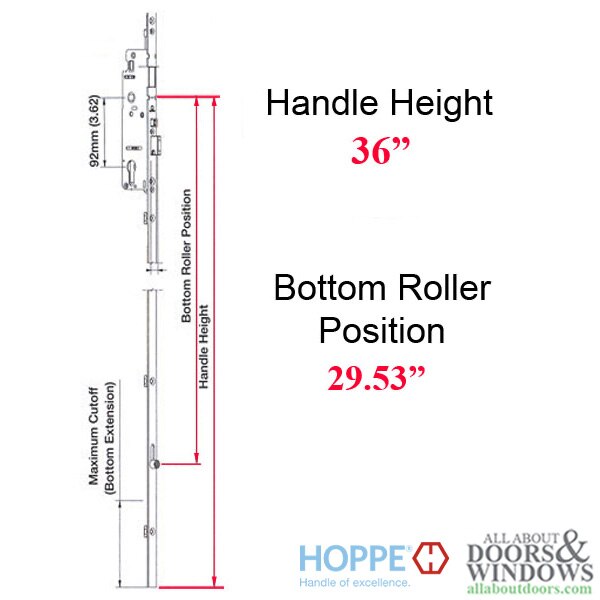

Bottom Roller Position: 29.53 (750mm),
Maximum Cutoff: 2.36" (60mm),
Number of Screws: 5

Related Multipoint Lock Hardware:
8778511: 1/2" Deadbolt Throw- Stock Item
8778223: 1" Deadbolt Throw
8785695: 1-3/8" Stainless Steel Screw

HURD 78" Door, Top Extension #8778483 Roller @36.61"
HURD 93" Door, Top Extension #8778491 Roller @50.59"

Note: The old Automatic top extension will work with the new Manual SS Bottom Gear

To insure you select the correct Multipoint Lock please see our Multipoint Lock Glossary Of Terms

If you are unsure whether or not your lock can be replaced with an Amesbury lock, please fill out this worksheet below:
Hoppe Hinged Door Multipoint Lock Worksheet
When completed, please send it to us here
