16mm Manual Gear, 35/92, Tongue @ 29.65", 1/2" Deadbolt Throw
Hoppe Tongue Version /,Manual Gear, for Active Door.
5 screw installation

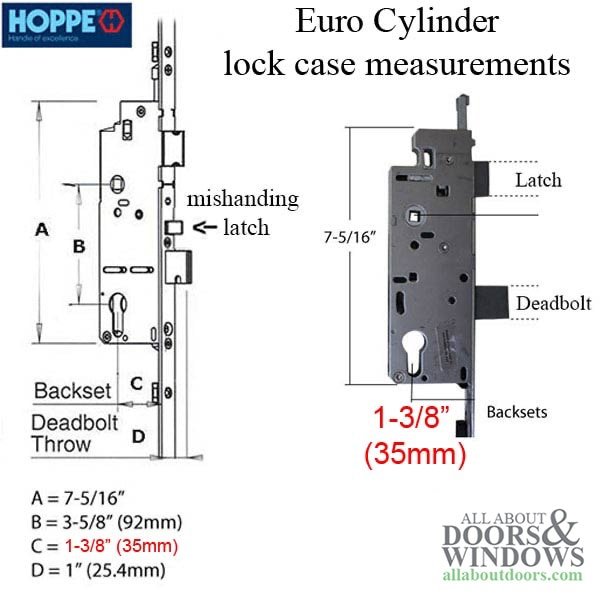

Faceplate: 5/8 inch (15.875mm)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1/2 inch (14mm)
Handle Height: 36.00 inch (914mm)
Maximum Cutoff 1.18 inches.
29.65 Tongue Position from center of handle,

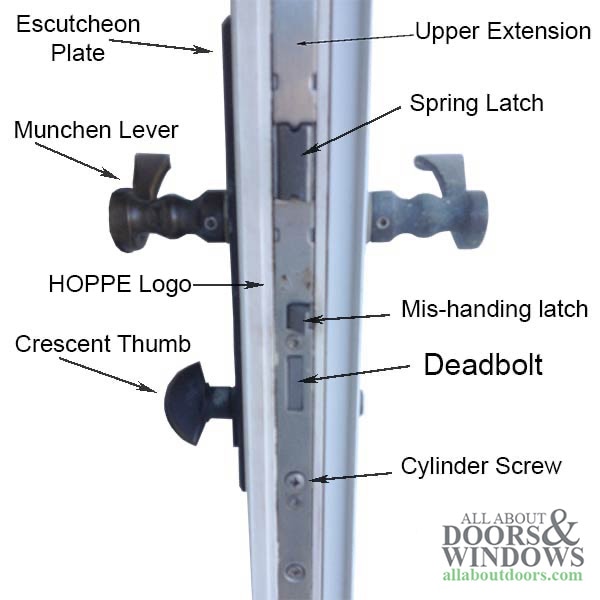

To Change Handling / Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.
8778143 - Bottom Gear, 1-3/8 backset, Tongue @ 29.25", 1" Deadbolt

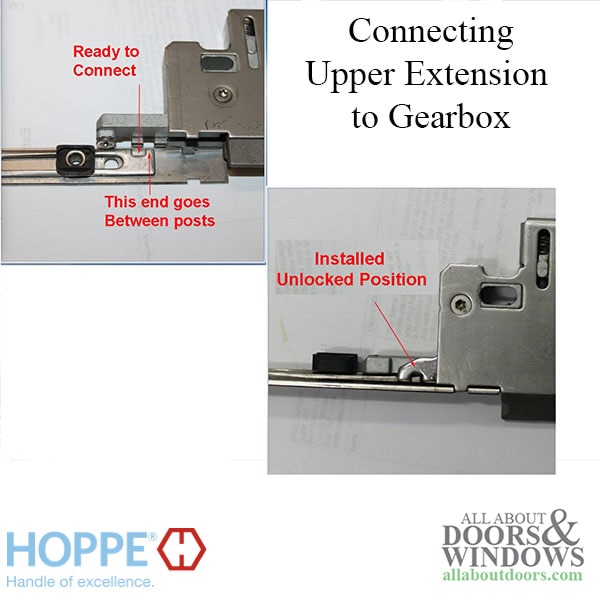

8778563 - Top Extension for 93" door, tongue at 46.97"
5 screw installation
Faceplate: 5/8 inch (15.875mm)
Backset: 1-3/8 inch (35mm)
Deadbolt Throw: 1/2 inch (14mm)
Handle Height: 36.00 inch (914mm)
Maximum Cutoff 1.18 inches.
29.65 Tongue Position from center of handle,
To Change Handling / Reversing Latch:
Latch handing may be changed by pulling spring latch out and turned in the opposite direction and released. May need to use pliers.
