16mm AGB Unitop Multipoint Lock 50/92 with 3 Roller Cams - Stainless Steel

16mm AGB Unitop Multipoint Lock 50/92 with 3 Roller Cams - Stainless Steel

AGB Unitop Activate by Lifting handle - Deadbolt extends and bottom rollers move down and Top roller moves up

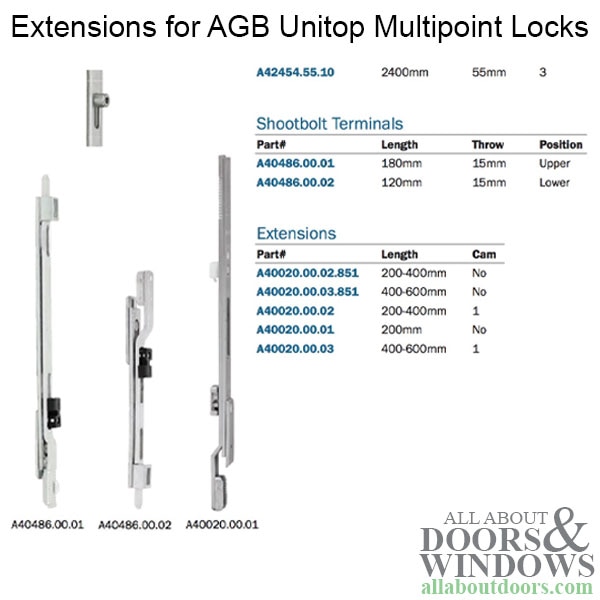

Basic unit comes with 3 cams (can cut ones you don't want) can add additional 4th cam with extension

Brand: AGB

Faceplate Width: 5/8 inch (16mm)

Cylinder Type: Euro Profile

Backset: 2 inch (50mm)

Handle - Cylinder PZ: 3-5/8" (92mm)

Handle Height: 41-5/16 inches with Shootbolt is attached, Adjustable, may be cut down

Key Position: Below lever

Locking Device: Roller cams

Overall Faceplate Length: 75-5/8 inch

Top Roller: 17-9/16 inches (446.1mm)

Bottom Roller, First: 15-3/8 inches (390.5mm)

Bottom Roller, Second: 31-3/8 inches (796.9mm)

Door Heights: 70.866 - 82.667 inches (1800-2100mm)

Markings on Faceplate: AGB  455,  92, 120, 180, 1800-2100

To Change Handing: Push in from back on latch, spin around
