AGB Unitop Terminal Shootbolt, 180mm no cam - Silver

Part Number: A40486.00.01
Price: $10.45

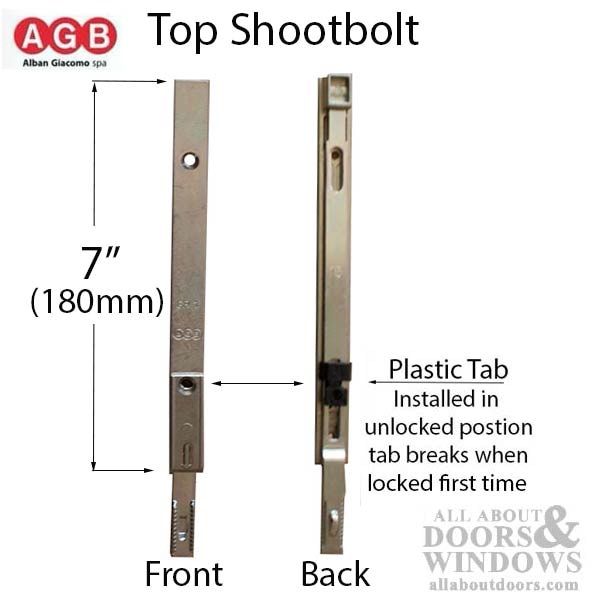

AGB Unitop Terminal Shootbolt, 180mm no cam - Silver
180mm = 7.086

The standard AGB Unitop 3-point lock has a 41-3/4 inch (1060mm) handle height and 75-5/8 inches (1920mm) Overall Faceplate length, not including top shootbolt or extensions.
The Basic unit with Top shootbolt attached is 82-5/8 inches (2100mm)

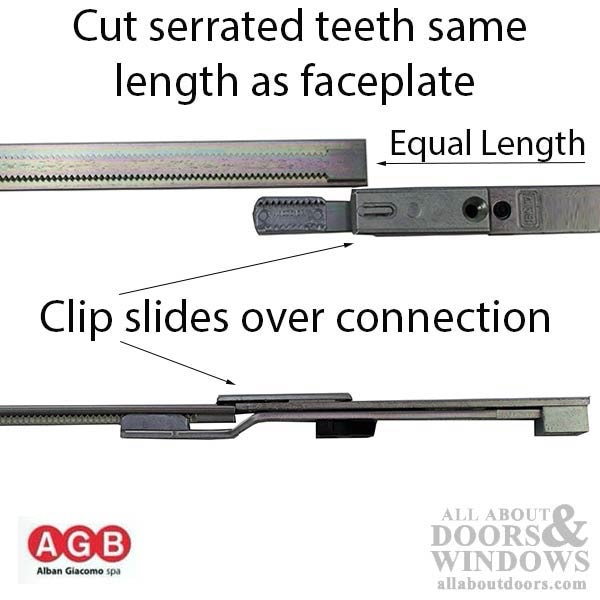

If the door is less than 82-1/2 inch the top faceplate has serrated teeth that can be cut to adjust height for shorter doors.
