Roto Pro Drive Stainless Steel Split Arm LH Vinyl Window Operator

Roto Pro Drive (no spline) Split Arm, Pin Down for Vinyl Window Applications.
Old Stock, May have Minor Blemishes.
Brand: Roto Hardware
Markings: OP05-7510

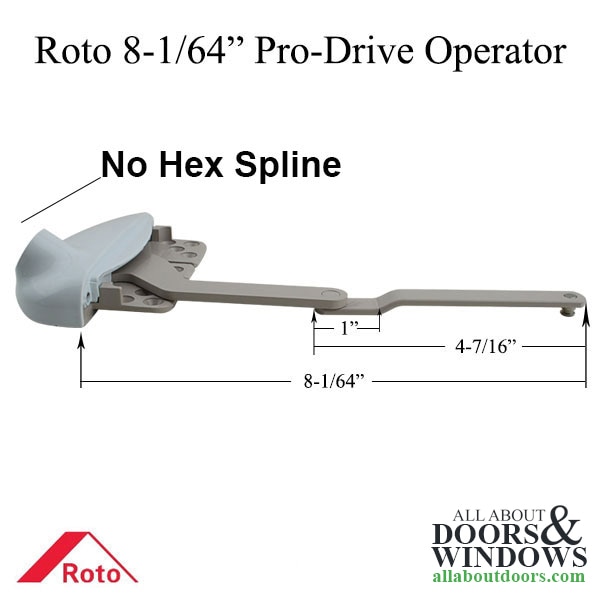

Arm Length: 8-1/64" from housing to middle of arm
Pin Position: Down
Link Offset: UP
Stack: 9/16 vinyl windows (11/16 wood windows)
Handed: Yes, Left Handed as Shown

Note:
The discontinued Pro Drive May be replaced with the X-Drive Operator

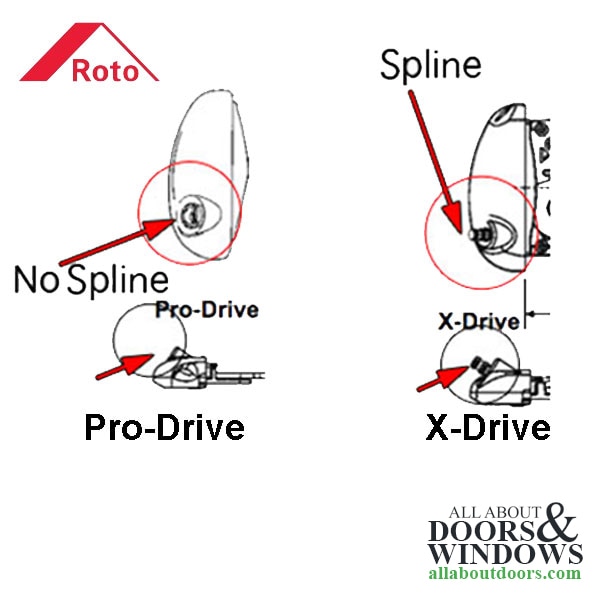

* The X-Drive and Pro Drive are the same operator with different crank handles

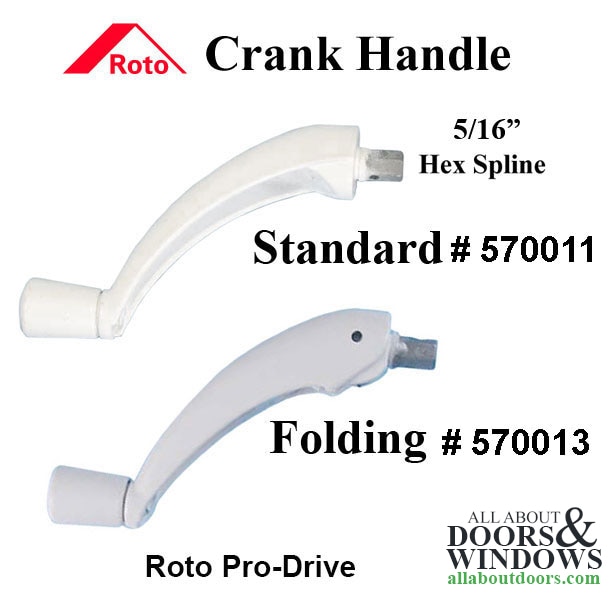

* The Pro drive operators have a hex shaped hole in the operator, the handle has a 5/16" hex stud attached that pushes into operator housing.
* The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it This part has been discontinued and Limited to existing inventory.

May be replaced with the corresponding Roto X Drive Operator and a new handle:
- Right Hand: OP06-7509 - Right Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up*
- Left Hand: OP06-7508 - Left Hand X-Drive Operator for Vinyl Windows with Pin Down, Link Offset Up*

*Please note, these operators will only replace yours directly if you have a vinyl window and your original operator had the pin down and link offset up ( see additional images)

ROTO Pro Drive (no Spline), Split Arm, Pin Down, Vinyl Window, Left Hand, Corrosion Resistant Steel (CRS)<br>

OP05-7508-00 = G2 White<br>

OP05-7508-08 = G1 White<br>

OP05-7508-03 = Blue White<br>

OP05-7508-26 = Almond<br>

OP05-7508-38 = Almond MK<br>

OP05-7508-57  = Cameo<br>

OP05-7508-06 = Dark Bronze<br>

OP05-7508-04 = Earth Brown<br>

Strybuc  36-511AD <br>
