Roto 8-1/64" Split Arm, X-Drive, LH Vinyl Window Application
Roto X Drive Split Arm for Vinyl Window Application, 9/16 Thin Base
Brand: Roto Hardware
Application: Vinyl Windows
Base: 1/8 inch Thin base, 9/16 Overall
Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes, UP

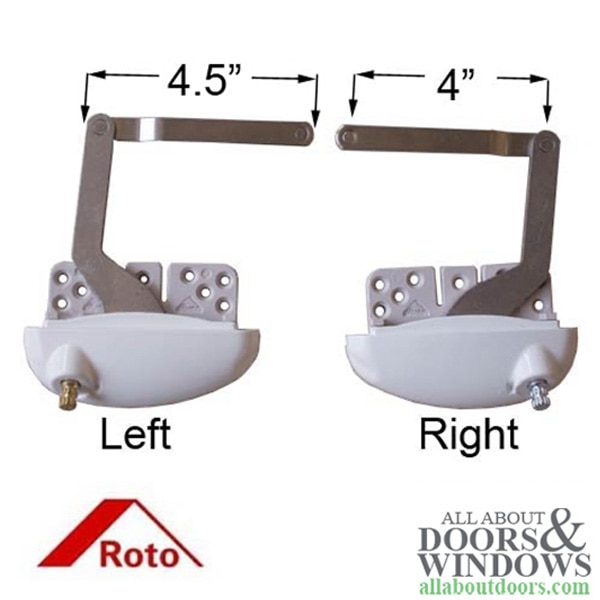

Handed: Yes, Left Hand as Shown
Colors/Finish: White
Roto Operator Notes:
Brand: Roto Hardware
Application: Vinyl Windows
Base: 1/8 inch Thin base, 9/16 Overall
Arm Length: 8-1/64" from housing to middle of arm
Pin Position: DOWN
Link Offset: Yes, UP
Handed: Yes, Left Hand as Shown
Colors/Finish: White
Roto Operator Notes:

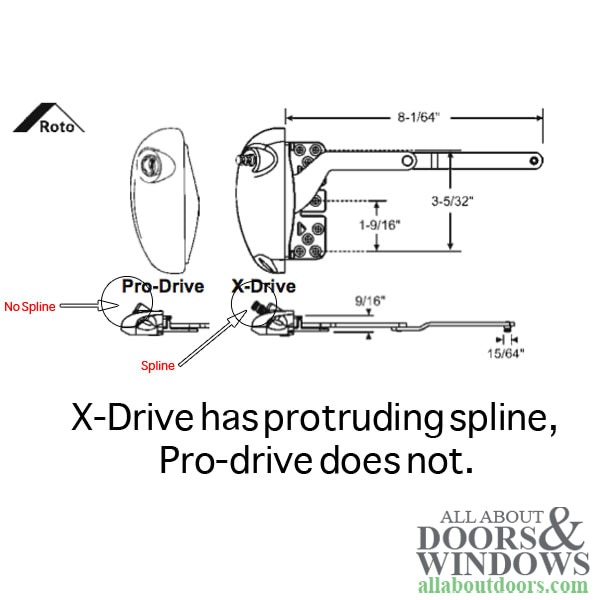

- The X-Drive and Pro Drive are the same operator that uses a different crank handle.
- The Pro drive operators have a hex shaped hole in the operator and the handle with a 5/16" hex stud pushes into operator. These have been discontinued but can be replaced with the X-Drive operators.

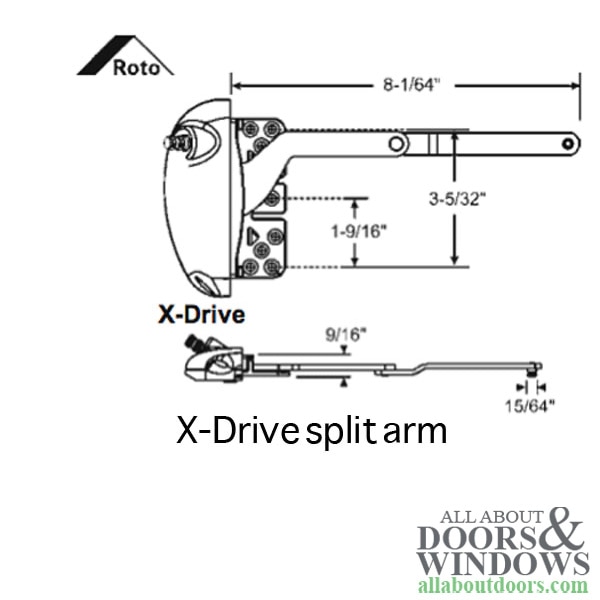

- The X-Drive has a 5/16" Hex spline that protrudes from the base and the handle fits onto it.
This product is similar to or the same as the following part numbers in these brands:
Strybuc Industries: 36-511W-XD
Strybuc Industries: 36-511W-XD
