Replacement Kit for Roto 3 point roller multipoint lock in Weathershield Doors

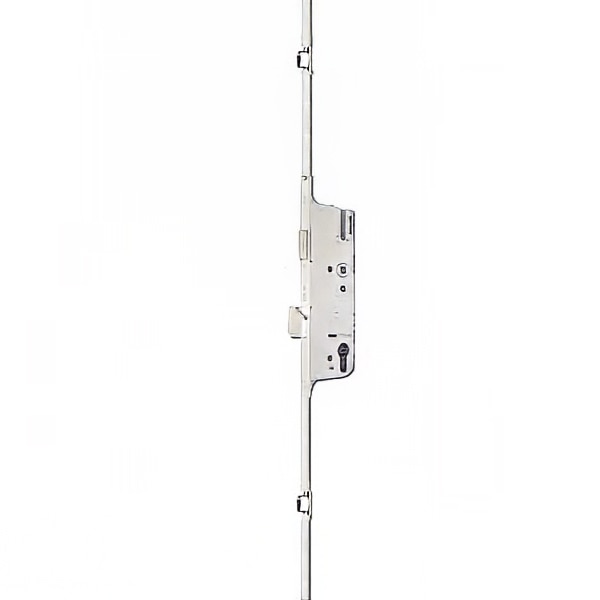

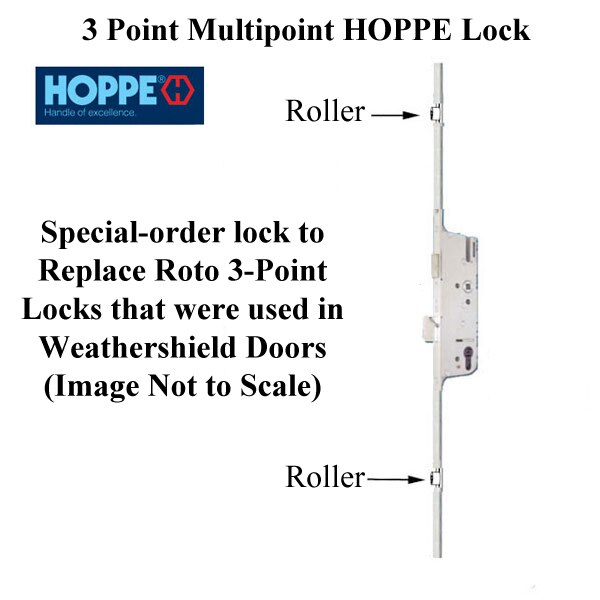

3-Point Multipoint Lock with Rollers

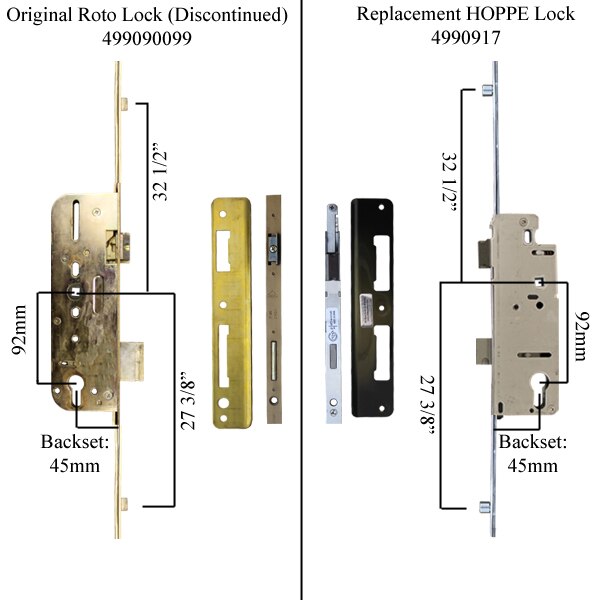

Replaces Roto 3-point lock (part 499090099) and WINKHAUS 3-point lock (part 499110099).
Used in Weathershield hinged patio doors made prior to March 2002,
in ProShield hinged patio doors made prior to August 2004,
and in Visions hinged patio doors made prior to February 2004.

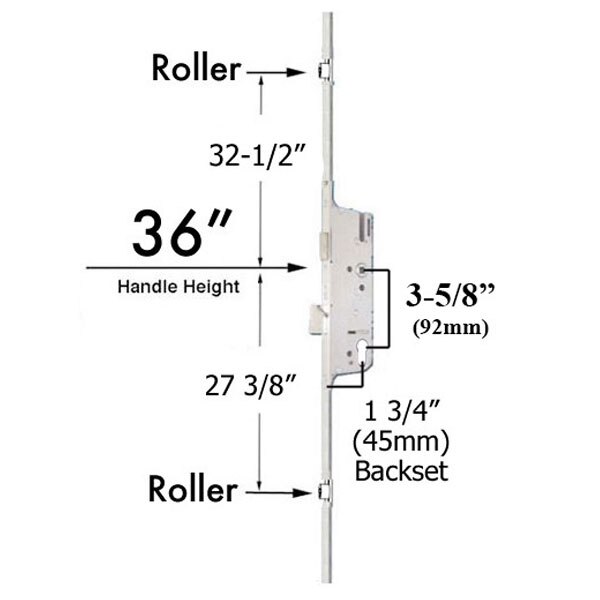

Replacement Lock Dimensions:
Bottom roller located 27-3/8 inches from handle
Top roller located 32-1/2 inches from handle
Backset: 45mm
PZ: 92mm
Faceplate: 16mm wide
Fits door panels up to 93 inches tall
This is a 3-part kit consisting of:
Bottom gear and lockbox
Top extension
Screws
Existing stock is limited; these are special order and may take longer to ship.
How to Install This Replacement Lock in a Weather Shield Door:Replacement Guide.
Replaces Roto 3-point lock (part 499090099) and WINKHAUS 3-point lock (part 499110099).
Used in Weathershield hinged patio doors made prior to March 2002,
in ProShield hinged patio doors made prior to August 2004,
and in Visions hinged patio doors made prior to February 2004.
Replacement Lock Dimensions:
Bottom roller located 27-3/8 inches from handle
Top roller located 32-1/2 inches from handle
Backset: 45mm
PZ: 92mm
Faceplate: 16mm wide
Fits door panels up to 93 inches tall
This is a 3-part kit consisting of:
Bottom gear and lockbox
Top extension
Screws
Existing stock is limited; these are special order and may take longer to ship.
How to Install This Replacement Lock in a Weather Shield Door:Replacement Guide.
